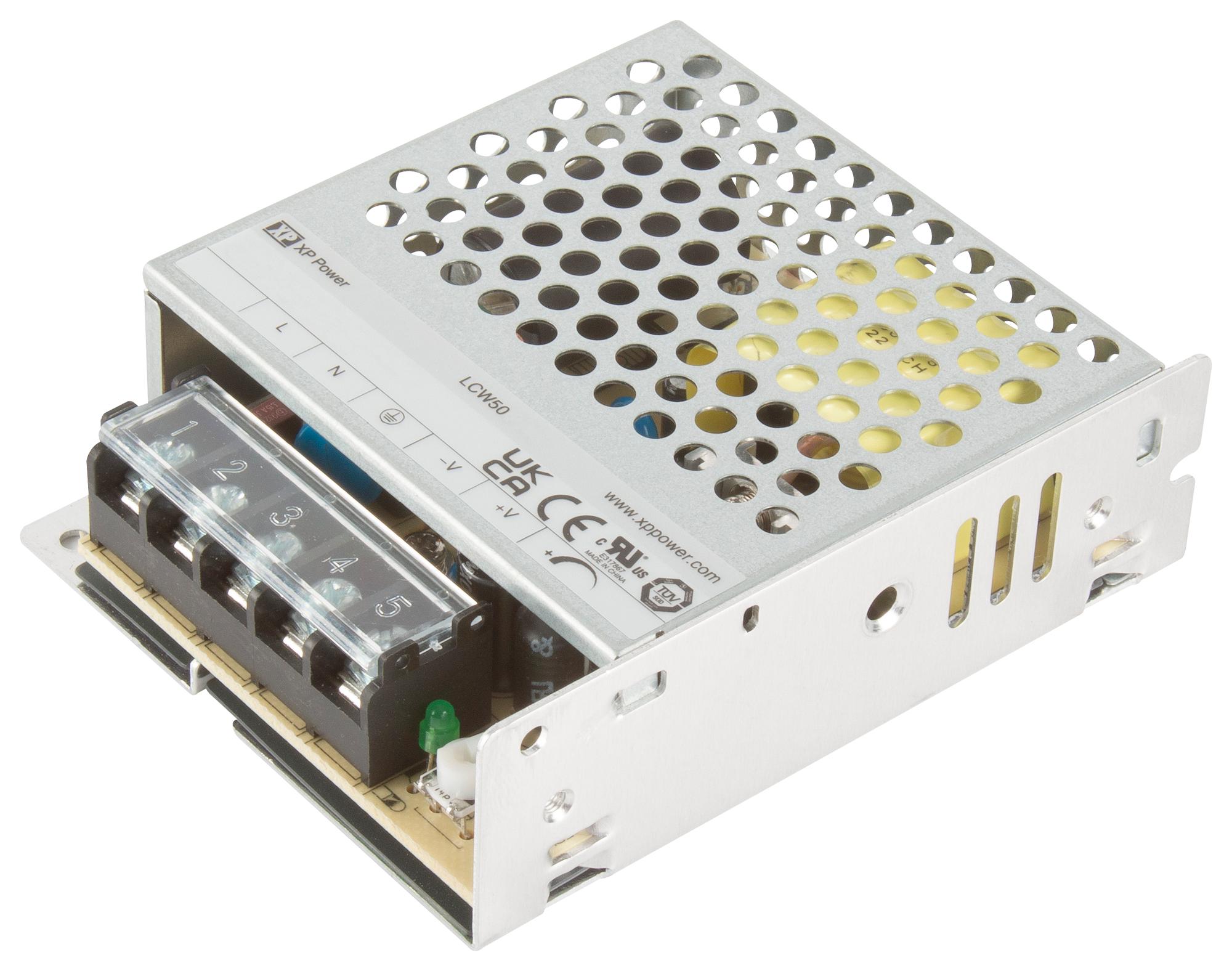

XP POWER LCW50US36 Power Supply Module
The LCW50 series regulated output power supplies are convection-cooled AC to DC units designed for industrial electronics, technology, and household applications. They feature an input voltage range of 85-305VAC, output voltage adjustment of ±10%, and operate at a switching frequency of 65kHz. Offering high efficiency at 89%, these 50W power supplies include protections such as short circuit, overcurrent, overvoltage, and overload. They come with an integrated connector cover, conformal coating options, and certification under UL62368-1, EN62368-1, EN60335, EN61558 standards. Suitable for ITE, industrial, and household use, operating efficiently from -30°C to +70°C with Class B emissions, in durable aluminium chassis measuring approximately 99mm x 82mm x 30mm, backed by a 3-year warranty.
XP POWER LCW50US36 Power Supply Module Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 50W
- Output Voltage Adjustment: ±10%
- Efficiency: Up to 89%
- Ripple & Noise: 120mV (typical, varies by model)
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overcurrent, overvoltage, overload
- Switching Frequency: 65kHz
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Enclosure: Aluminium chassis with vented galvanized steel cover
- Conformal Coating: Optional, certified UL94V-0
- Dimensions: Approximately 99mm x 82mm x 30mm
- Operating Altitude: Up to 5000 meters
- Humidity Range: 5-90% RH, non-condensing
Buy the XP Power LCW50U3 – Reliable Power Supply for Industrial Applications
Purchase the XP Power LCW50 series power supply online today to ensure reliable power conversion for your industrial electronics, household systems, or automation needs. These convection-cooled, high-efficiency units feature wide input voltage compatibility from 85 to 305VAC, robust protections including short circuit, overcurrent, and overvoltage, and are certified for safety standards such as UL and EN. With conformal coating options for harsh environments and operating temperatures from -30°C to +70°C, these units ensure optimal performance and durability. Secure your supply now and benefit from fast delivery and trusted quality.
Order your XP Power SeriesLCW50 36W convection-cooled power supply today and ensure durable, efficient performance for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER LCW50US36?
You can click on the BUY or RFQ button to purchase LCW50US36 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW50US36?
You can download the LCW50US36 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW50US36?
XP POWER
