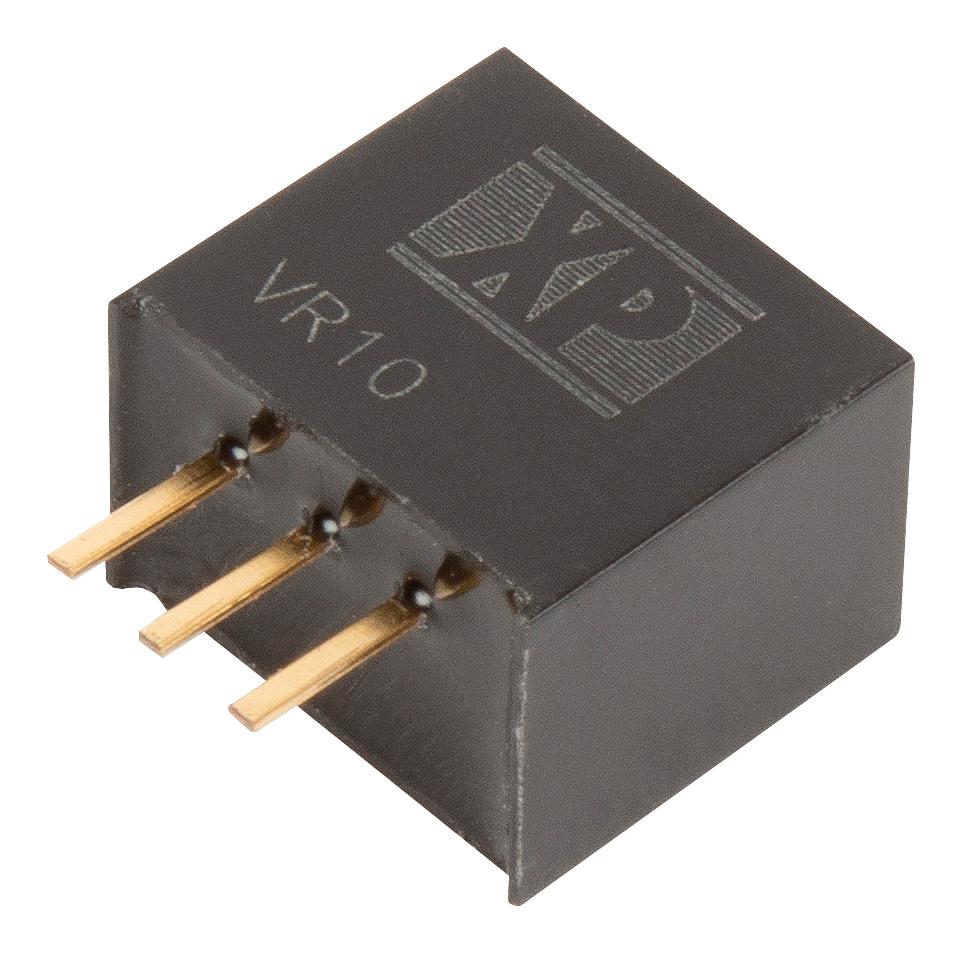

XP POWER VR10S05 DC-DC Converter Module
The VR10 Series is a compact, high-efficiency non-isolated switching regulator designed for versatile DC-DC power conversion. With a wide input range of 6 to 36V and regulated outputs from 3.3V to 15V, it offers up to 96% efficiency and a low standby current of 0.3mA. Featuring short circuit protection, high MTBF over 2 million hours, and operation from -40°C to +85°C, this converter suits industrial and embedded applications. Its SIP3 package ensures a small footprint, making it ideal where reliable, space-saving power solutions are essential.
XP POWER VR10S05 DC-DC Converter Module Specifications:
- Input Voltage Range: 6 to 36V
- Output Voltage Options: 3.3V, 5.0V, 6.5V, 9.0V, 12.0V, 15.0V
- Maximum Output Current: 1.0A
- Efficiency: Up to 96%
- Operating Temperature: -40°C to +85°C
- Standby Input Current: 0.3mA
- Protection: Short circuit with auto recovery
- Case Material: Non-conductive black plastic
- Dimensions: 0.457 x 0.409 x 0.315 inches (11.6 x 10.4 x 8.0 mm)
- Switching Frequency: 520 kHz
- Isolation: None (non-isolated)
- MTBF: Over 2 million hours
- Solder Coated Phosphor Bronze Pins
- Water Washable: Yes (de-ionised water)
- Soldering Temperature: 260°C for vapor phase
Buy the XP Power Series VR10: DC-DC Converter 3.3V-15V 1A
Discover the efficiency and reliability of the XP Power VR10 Series DC-DC Converter, offering a wide input range of 6 to 36V and output voltages from 3.3V to 15V. Its high efficiency, up to 96%, ensures low power loss, making it perfect for industrial and embedded applications. With features like short circuit protection, operating temperature from -40°C to +85°C, and a compact SIP3 package, this power module guarantees durability and space savings. Order online today to upgrade your power systems with a proven, space-efficient converter.
Buy XP Power VR10 Series DC-DC Converter now and experience unmatched reliability, efficiency, and space-saving design for industrial power needs.
Frequently Asked Questions
Where can I buy XP POWER VR10S05?
You can click on the BUY or RFQ button to purchase VR10S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VR10S05?
You can download the VR10S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VR10S05?
XP POWER
