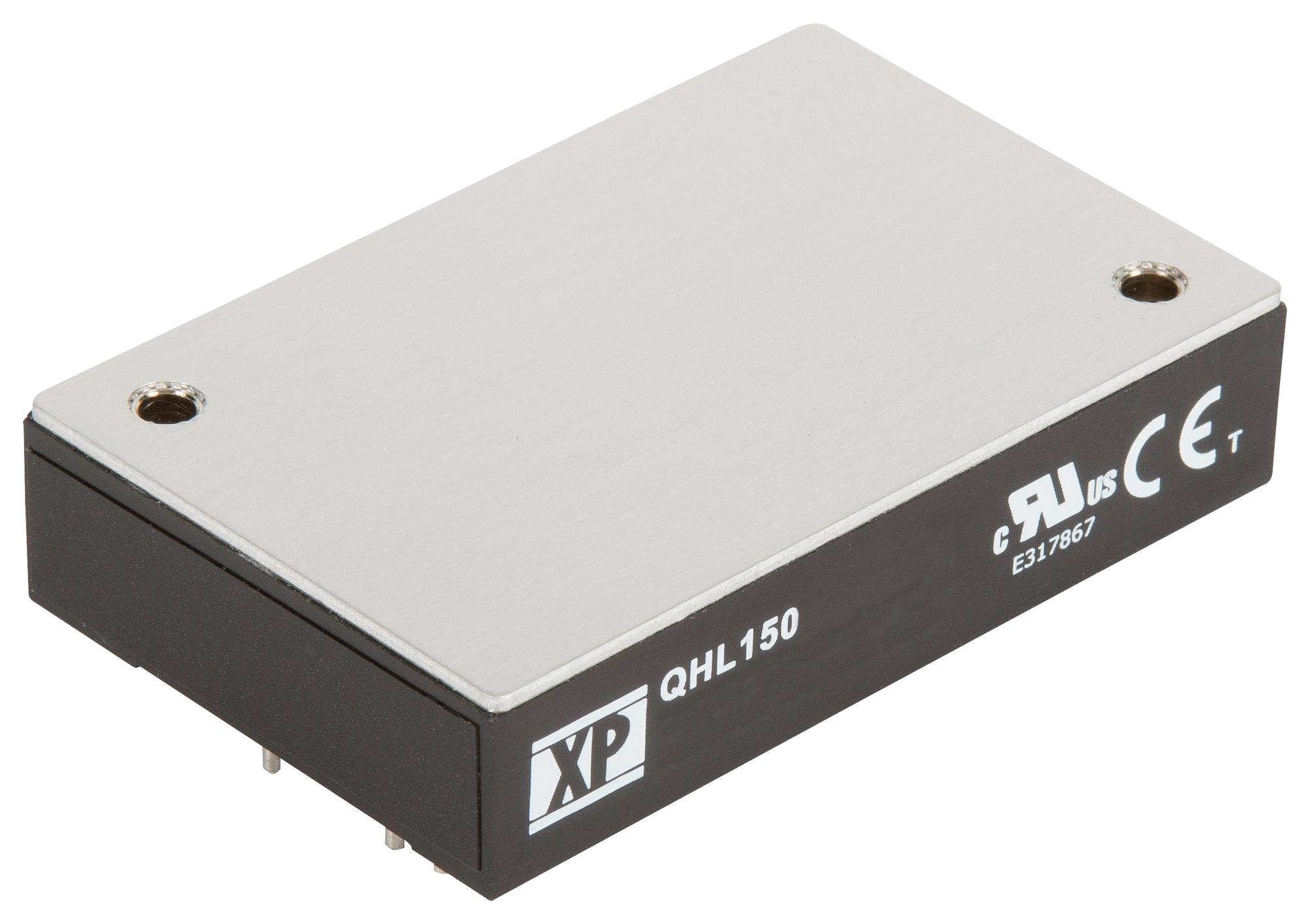

XP POWER QHL150300S48 DC-DC Converter
The QHL150 series provides a compact 150W DC-DC converter in an industry-standard quarter brick package. This module features a regulated single output with 3kVAC isolation, remote on/off capability, overtemperature protection, and an adjustable output trim of -20% to +10%. It operates within a temperature range of -40°C to +100°C and is suitable for constructing distributed power architectures from AC front ends, PFC front ends, and battery systems. The dimensions are 2.28 inches by 1.45 inches by 0.5 inches (57.9mm x 36.8mm x 12.7mm). It supports input voltages from 180V to 425VDC, delivering highly efficient power for industrial, automation, and telecommunications applications.
XP POWER QHL150300S48 DC-DC Converter Specifications:
- Input Voltage Range: 180V to 425VDC
- Power: 150 Watts
- Input Ripple & Noise: Measured at 300V nominal input, peak-to-peak at 20MHz bandwidth
- Isolation: 3kVAC input to output, 2500VAC input to case, 500VAC output to case
- Efficiency: Up to 88%
- Dimensions: 2.28 x 1.45 x 0.5 inches (57.9 x 36.8 x 12.7 mm)
- Operating Temperature: -40°C to +100°C
- Output Voltage: Models including 5V, 12V, 15V, 24V, 48V
- Output Current: up to 12.5A depending on model
- Remote On/Off: Enabled
- Adjustable Output Trim: -20% to +10%
- Overtemperature & Overload Protections: Included
- Peak efficiency: 88%
- Input protection: Recommended 2A time delay fuse, transient voltage suppression advised
- Construction: UL94V-0 rated plastic case with aluminum base plate, epoxy potting, copper pins with nickel and tin plating
- Switching Frequency: 330-390kHz
- Isolation Resistance: 100 MΩ
Buy the Buy Industry Standard Quarter Brick Power Module Part Number QHL150300S48 Online
Discover the affordability and high performance of the XP Power QHL150 series DC-DC converter. Perfect for industrial, telecom, and automation applications, this 150W module offers a regulated single output with ±10% trim, remote on/off, and high efficiency up to 88%. Its compact quarter brick size (2.28 x 1.45 x 0.5 inches) makes it ideal for space-constrained systems. With 3kVAC isolation, overtemperature protection, and operation from -40°C to +100°C, it guarantees robust and reliable power delivery. Purchase online today for fast, secure delivery.
Buy XP Power QHL150300S48 now and experience unmatched reliability and performance in efficient power conversion for industrial and automation systems.
Frequently Asked Questions
Where can I buy XP POWER QHL150300S48?
You can click on the BUY or RFQ button to purchase QHL150300S48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part QHL150300S48?
You can download the QHL150300S48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of QHL150300S48?
XP POWER
