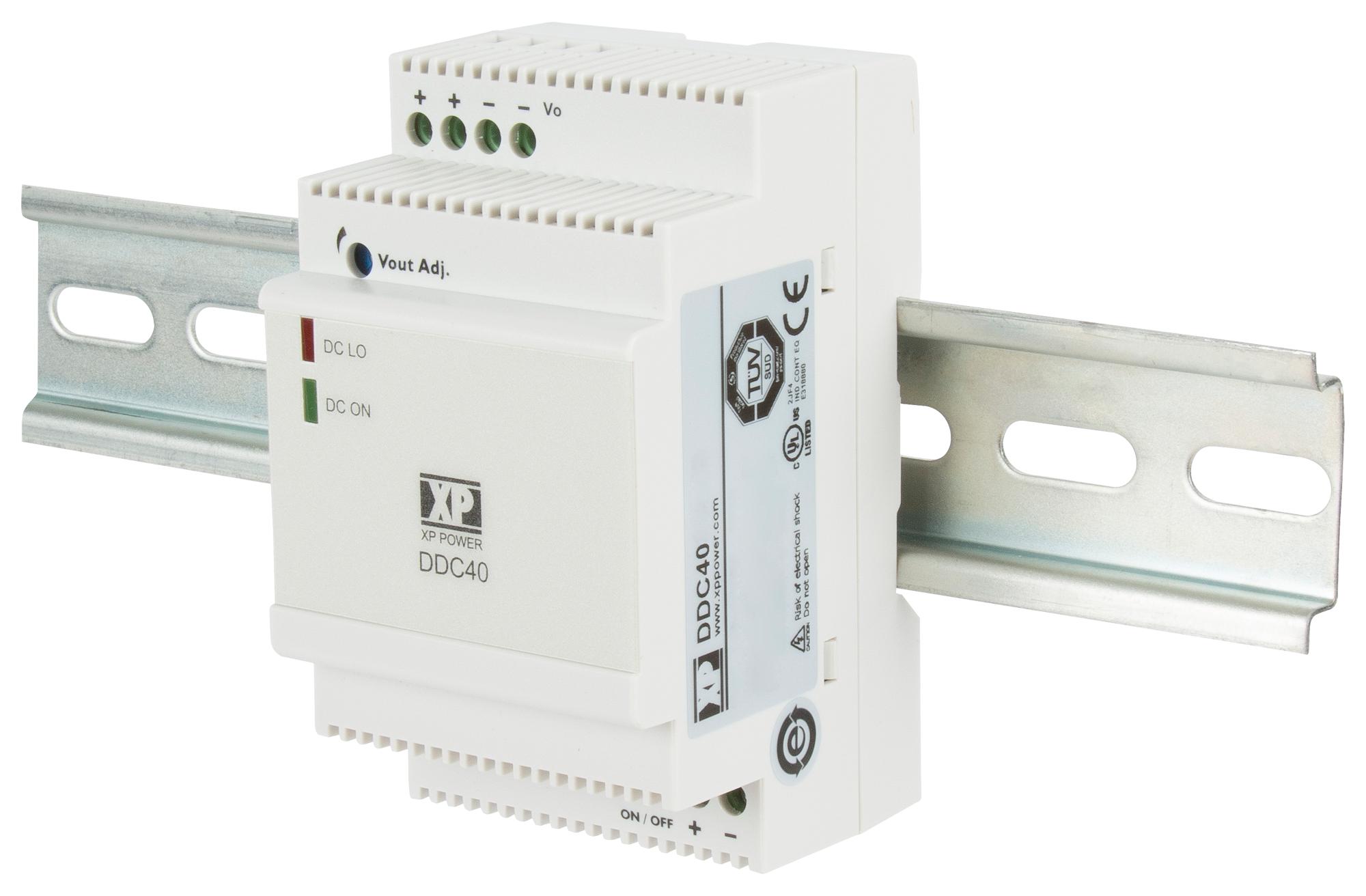

XP POWER DDC4024S12 DIN Rail DC-DC Converter
The DDC series consists of DIN Rail mountable DC/DC converters designed to supply additional voltage levels in AC input DIN Rail power systems. They provide isolated outputs, noise immunity, and are suitable for battery-powered or backup applications. These compact converters measure approximately 2.09 x 3.58 x 2.22 inches, supporting input voltages from 10V to 32V DC and output voltages from 5V to 24V DC. They feature 1.5kVDC input/output isolation, high efficiency around 83%, and operate over a temperature range of -40°C to +70°C, making them ideal for industrial automation, control panels, and distributed power systems.
XP POWER DDC4024S12 DIN Rail DC-DC Converter Specifications:
- Input Voltage Range: 10 to 32 VDC with reverse polarity protection
- Output Voltage: 5V to 24V DC, with trim adjustment options
- Output Power: Up to 24W, depending on model
- Dimensions: 2.09 x 3.58 x 2.22 inches (53.0 x 91.0 x 56.5 mm)
- Isolation: 1500 VDC
- Efficiency: Approximately 83% at full load
- Operating Temperature: -40°C to +70°C, derating above 50°C
- Ripple & Noise: 100 mV peak-to-peak within 20 MHz bandwidth
- Start-up Delay: 50 ms
- Remote ON/OFF: Yes, with open-circuit or 8-10 VDC to turn ON
- Overload & Short Circuit Protection: Constant current with auto recovery
- Standards & Compliance: UL 508, CSA C22.2 62368-1, EN55032 Class B emissions
- Vibration & Shock: Meets EN60068-2-27 and EN60068-2-6 standards
- Cooling: Natural convection
- Humidity Range: 5% to 90% RH, non-condensing
- Maximum Altitude: 4850 meters
Buy the Buy XP Power DDC Series DC-DC Converter Part Number DDC4024S12 Online
Purchase the XP Power DDC series DIN Rail mountable DC/DC converter online today and upgrade your industrial power system with high efficiency, isolated outputs, and reliable performance for battery backup and automation needs. Easy to install, featuring 1500 VDC isolation, wide input range, and compliance with safety standards, this converter ensures smooth energy conversion in demanding environments. Order now to benefit from fast delivery, comprehensive support, and the confidence of choosing a proven power solution for control panels and distributed systems.
Buy XP Power DDC4024S12 now and experience unmatched reliability and performance in industrial power applications.
Frequently Asked Questions
Where can I buy XP POWER DDC4024S12?
You can click on the BUY or RFQ button to purchase DDC4024S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DDC4024S12?
You can download the DDC4024S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DDC4024S12?
XP POWER
