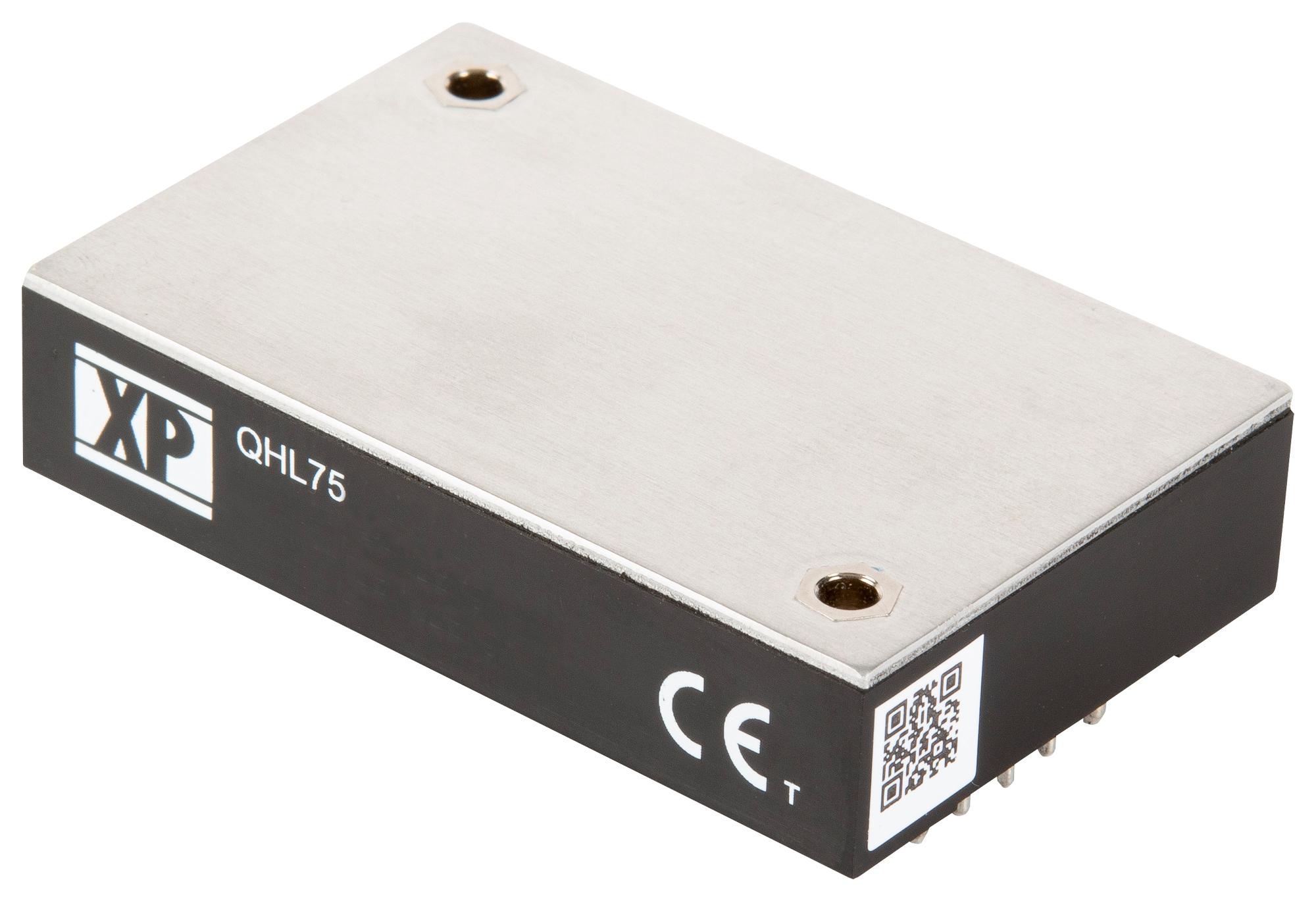

XP POWER QHL75300S05 DC-DC Converter
The QHL75 series provides a compact 75W DC-DC converter in an industry-standard quarter brick package, suitable for distributed power architectures from AC front ends, PFC circuits, and battery systems. Features include conduction cooling via an integral baseplate, reinforced 3kVAC isolation, and an operating temperature range from -40°C to +105°C. The module offers over-current, over-temperature, and over-voltage protection, with output voltage trim of ±20% (for 5V output, -20%/+10%), remote on/off functionality, and a three-year warranty.
XP POWER QHL75300S05 DC-DC Converter Specifications:
- Input Voltage Range: 180-450VDC
- Output Voltage: 5V (adjustable -20% to +10%)
- Output Current: 10mA to 3A depending on model
- Efficiency: Up to 90%
- Isolation Voltage: 3kVAC reinforced
- Operating Temperature: -40°C to +105°C
- Dimensions: 2.28" x 1.45" x 0.50" (57.9 x 36.8 x 12.7 mm)
- Ripple & Noise: 150mV max
- Protection: Over-current, over-temperature, over-voltage, short circuit
- Remote On/Off: Yes, positive logic optional
- Power Density: 45 W/in³
- Weight: 0.1943 lbs (65g)
- Switching Frequency: 270-330 kHz
- Isolation Resistance: 400 MΩ
- Inrush Current: 41A
- Temperature Coefficient: 0.02 %/°C
- Certifications: UL, EN62368-1, EN45545-2, CSA, UKCA
- Water Washable: Yes, deionized water, dry thoroughly
Buy the XP Power QHL75300S05 – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power QHL75300S05 DC-DC converter online today and ensure reliable power delivery for your industrial, robotics, or LED lighting projects. This high-efficiency, conduction-cooled module offers reinforced insulation, adjustable output, and wide operating temperature. With over-voltage and over-current protection, remote on/off, and a three-year warranty, it guarantees durability and safe operation in demanding environments. Simplify your system design by ordering now and get fast delivery direct to your facility or project site.
Order your XP Power QHL75300S05 today and give your projects the dependable power they deserve, ideal for harsh industrial environments and wide temperature ranges.
