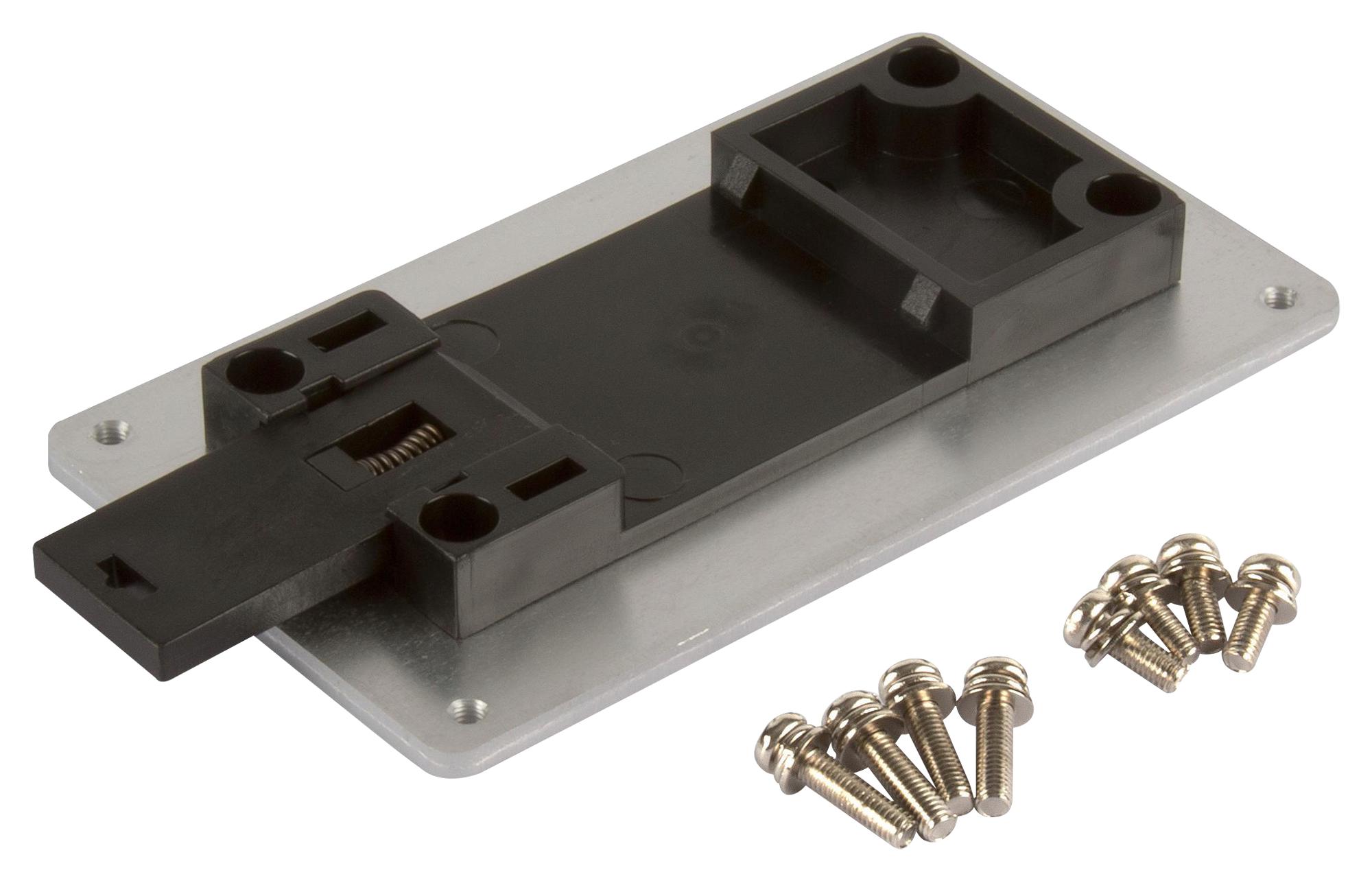

XP POWER DTE20DINCLIP Industrial Power Converter
The DTE20 Series is a compact, fully encapsulated 20-watt DC-DC converter designed for industrial applications. It features a wide 4:1 input voltage range from 9V to 36V or 18V to 75V, high efficiency up to 92%, and operation in temperatures from -40°C to +85°C. The converter includes a remote On/Off function, optional DIN rail mounting, and complies with EN55022 Level A standards for conducted emissions. Its small size, robust design, and reliable performance make it suitable for automation, control systems, and industrial equipment. The DTE20 offers various output voltages including 12V, 24V, 48V, and others, with current ratings up to 1.67A. It features high surge and transient response, overcurrent and overvoltage protection, and a power density of 27 W/in³. This reliable power supply is engineered to ensure safe, stable operation across harsh industrial environments, supported by a 3-year warranty, making it ideal for diverse industrial applications requiring precise and durable power conversion.
XP POWER DTE20DINCLIP Industrial Power Converter Specifications:
- Input Voltage Range: 9-36 V or 18-75 VDC, with wide 4:1 ratio
- Output Voltage: Various options including 12V, 24V, 48V, adjustable within specified limits
- Output Current: Up to 1.67A depending on model
- Efficiency: Up to 92%
- Operating Temperature: -40°C to +85°C
- Dimensions: 3.78 x 2.13 x 0.92 inches (96.0 x 54.0 x 23.3 mm)
- Isolation Voltage: 2500 VAC
- Switching Frequency: 285 kHz
- Input Surge Voltage: Up to 100 VDC for 100 ms
- Protection: Overcurrent, overvoltage, short circuit
- Conduction Emissions: EN55022 Level A
- Mounting Options: Fully encapsulated chassis, optional DIN rail version
- Compliance: UL60950-1, IEC 60950-1, EN55024
Buy the XP Power DTE20 Series – Reliable Industrial DC-DC Converter for Power Supply Applications
Purchase the XP Power DTE20 Series 20W DC-DC Converter online today for robust industrial power solutions. Featuring high efficiency up to 92%, wide input voltage range, and operation from -40°C to +85°C, it provides reliable power in harsh environments. Its compact design, optional DIN rail mounting, remote On/Off, and low emission standards make it perfect for automation, control, and manufacturing applications. Trust XP Power for quality, durability, and consistent performance—order now to enhance your power systems with this versatile converter.
Order your XP Power DTE20 Series 20W DC-DC Converter today and give your industrial projects dependable, efficient power conversion with reliable operation.
Frequently Asked Questions
Where can I buy XP POWER DTE20DINCLIP?
You can click on the BUY or RFQ button to purchase DTE20DINCLIP from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE20DINCLIP?
You can download the DTE20DINCLIP datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE20DINCLIP?
XP POWER
