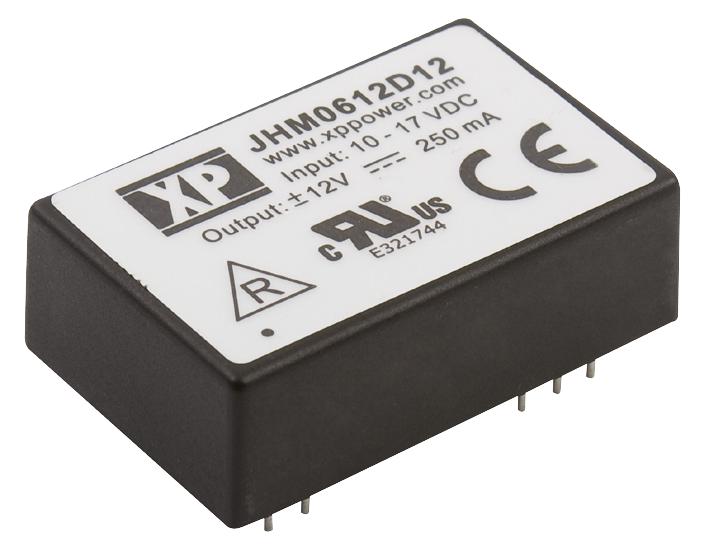

XP POWER JHM0612D12 Medical Power Supply
The JHM Series power supply offers 12 V at 3/6 W with reinforced insulation up to 3000 VAC, optimized for medical and industrial applications. It features a DIP-24 package, low patient leakage current of 2 uA, and complies with EN55011 Level A emissions. Capable of operating from 10-17 VDC at efficiencies around 80-90%, it supports -20°C to +100°C output temperature range, and includes protections like overcurrent, overvoltage, and short circuit. Designed for reliable performance in medical equipment, automation, and control systems, it ensures safety, low interference, and long MTBF over 1 million hours.
XP POWER JHM0612D12 Medical Power Supply Specifications:
- Input Voltage Range: 10-17 VDC, 12 V nominal
- Output Voltage: 12 V, adjustable +10% to -10%
- Power Rating: 3 or 6 Watts
- Efficiency: 80-90%
- Isolation: 3000 VAC for 1 min, IEC60664-1 compliant
- Input Current: See datasheet
- Inrush Current: 25 Amax at 30 V
- Operating Temperature: -20°C to +100°C, derated at high temps
- Storage Temperature: -40°C to +100°C
- Output Temperature: Max +100°C, with derating
- Humidity: 5-90%, non-condensing
- Line Regulation: ±2.03%
- Load Regulation: Max 4%
- Transient Response: 4% deviation, recovery within 1%
- Ripple & Noise: Max 1% pk-pk at 20 MHz bandwidth
- Overload & Overvoltage Protection: Trip and restart (hiccup mode)
- Short Circuit Protection: Automatic recovery
- Certifications: Meets IEC60601-1, UL, CSA safety standards
- EMC Immunity & Compatibility: EN61000-4 series, Level 2-3 protection
Buy the Buy International Medical Approvals Power Supply Part Number JHM0612D12 Online
Purchase the International Medical Approvals Series power supply JHM0612D12 online today to guarantee optimal performance and safety in critical medical and industrial applications. This reliable 12 V device offers reinforced insulation with 3000 VAC isolation, low leakage current, and high efficiency, supporting a broad temperature range. Its robust protections and certifications meet stringent safety standards, making it ideal for sensitive equipment. Easy to order and fast delivery ensure your projects stay on schedule with dependable power components from authorized distributors.
Order your International Medical Approvals Series JHM0612D12 power supply today and ensure reliable, safe power delivery for your medical or industrial equipment.
Frequently Asked Questions
Where can I buy XP POWER JHM0612D12?
You can click on the BUY or RFQ button to purchase JHM0612D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM0612D12?
You can download the JHM0612D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM0612D12?
XP POWER
