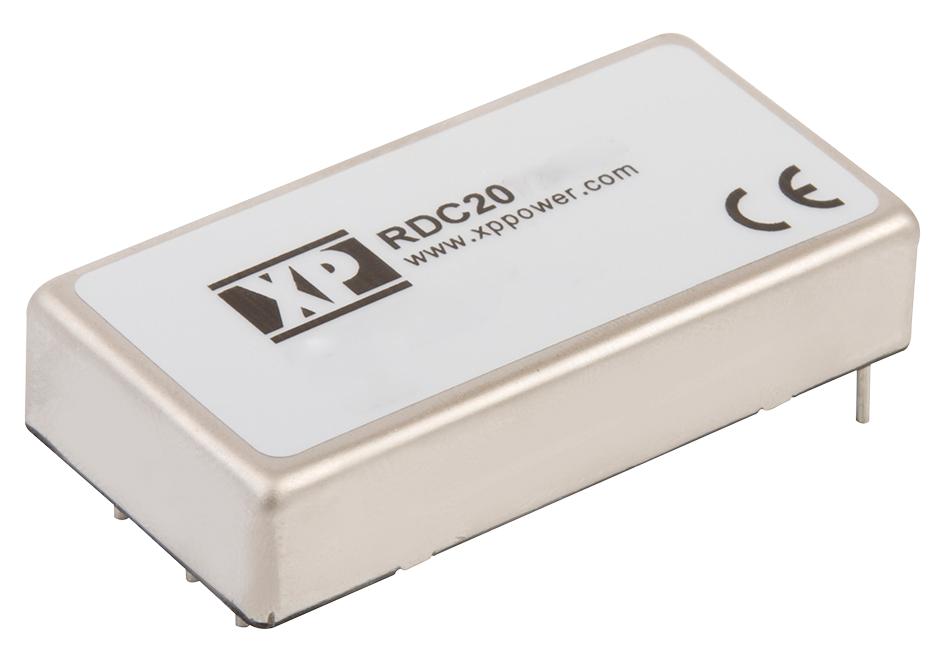

XP POWER RDC20110S15 Railway Power Converter
The RDC20 series converters are designed specifically for railway applications and comply with EN50121-3-2, the EMC standard for rolling stock equipment. Available in two wide input voltage ranges, the 72VDC nominal models accept inputs from 34V to 140VDC, while the 110VDC nominal versions support inputs from 55V to 176VDC. The series offers various output options, including 3.3V, 5V, 12V, 15V, and dual output configurations such as ±5V, ±12V, and ±15V. These units provide basic isolation of 1500 VAC from input to output and 1600 VDC from output to case. Features include high efficiency (up to 88%), remote on/off control, and compliance with EN50155 standards. Suitable for railway, automotive, signal processing, and industrial applications.
XP POWER RDC20110S15 Railway Power Converter Specifications:
- Input Voltage Range: 34-140 VDC (72V models), 55-176 VDC (110V models)
- Input Current: Model dependent, e.g., 15A at 72V
- Input Ripple: 20 mA pk-pk through 12 HH inductor
- Input Filter: Pi network
- Output Options: 3.3V, 5V, 12V, 15V, dual outputs ±5V, ±12V, ±15V
- Output Voltage Trim: External trim circuit available
- Efficiency: Up to 88%
- Isolation Voltage: 1500 VAC input to output, 1600 VDC output to case
- Protections: Overvoltage, Overload, Short circuit, Overtemperature
- Remote On/Off: Logic High/Low control
- Operating Temperature: -40°C to +85°C with derating
- Dimensions: Compact packaging for space efficiency
- Cooling: Convection cooled
- Environmental: Humidity 5-95% RH, non-condensing
- Switching Frequency: 270 kHz typical
Buy the Buy Industrial Power Converter Part Number RDC20110S15 Online
Purchase the RDC20110S15 railway power converter online today to benefit from high efficiency, robust design, and reliable operation. Designed for demanding railway and industrial environments, it features wide input voltage ranges, multiple output options, and essential protections to ensure stable power delivery. Its compliance with EN50155 and EN50121-3-2 standards guarantees quality and safety for critical applications. Secure your supply chain by ordering this versatile converter now, and enhance the performance and reliability of your railway systems and industrial equipment.
Order your RDC20110S15 railway power supply today and ensure reliable performance for your critical infrastructure projects.
