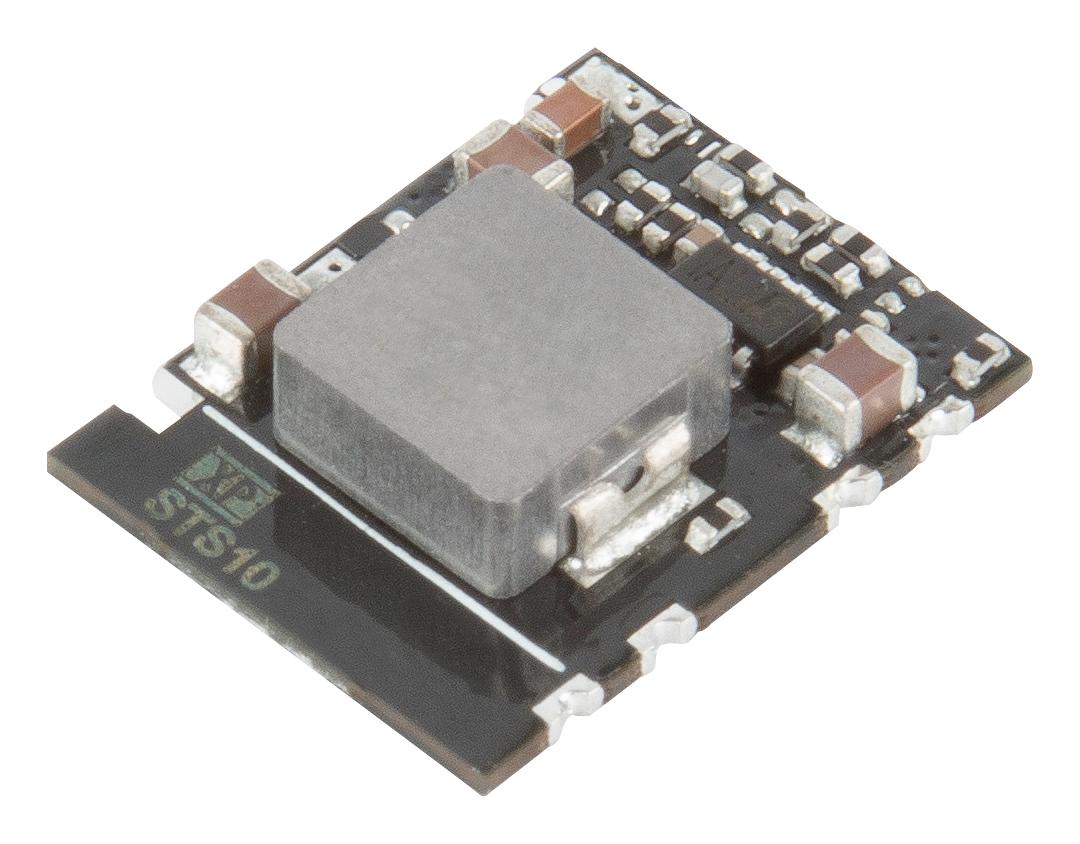

XP POWER STS1005S1V8 Switching Regulator
The STS10 series offers cost-effective DC-DC buck converters utilizing SMD technology with high automation. These regulators provide regulated output voltages ranging from 1.2V to 15V DC, featuring wide input ranges, high efficiency up to 96%, and a compact SMD-10 package. They include features such as output voltage trimming of ±10%, remote On/Off control, continuous short-circuit protection, and do not require heatsinks. The devices operate at full load up to +65°C and meet Class B conducted and radiated emission standards with external components.
XP POWER STS1005S1V8 Switching Regulator Specifications:
- Input Voltage Range: 3.0-36.0V (24V models extend to 36V with derating)
- Output Voltage: 1.2V to 15V DC, regulated, with ±10% trim
- Output Current: 1.0A maximum
- Efficiency: Up to 96%
- Operating Temperature: -40°C to +105°C, full load up to +65°C
- Package: SMD-10, compact size 0.60 x 0.47 x 0.15 inches (15.20 x 11.80 x 3.6 mm)
- Features: Remote On/Off, short-circuit protection, no heatsink required
- Standards: Meets Class B conducted & radiated emissions with external components
- Surge & EMI: Meets EN55032 Class B, with external filtering components
- Other: Full load operation at 25°C, continuous short-circuit protection, efficiency at 90-96%
Buy the Buy XP Power Switching Regulator Part Number STS1005S1V8 Online
Purchase the XP Power STS10 switching regulator online today to ensure reliable power conversion for your application. With a wide input range of 3V-36V, regulated output from 1.2V to 15V, and efficiency up to 96%, this compact SMD device offers outstanding performance. Features include remote On/Off, short circuit protection, and no heatsink requirement, making installation simple and efficient. The device operates at full load up to +65°C, complying with Class B emission standards for electromagnetic compatibility. Ideal for industrial and electronic systems where dependable power supply is essential.
Buy XP Power STS1005S1V8 now and experience unmatched reliability and high efficiency for your power regulation needs.
Frequently Asked Questions
Where can I buy XP POWER STS1005S1V8?
You can click on the BUY or RFQ button to purchase STS1005S1V8 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STS1005S1V8?
You can download the STS1005S1V8 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STS1005S1V8?
XP POWER
