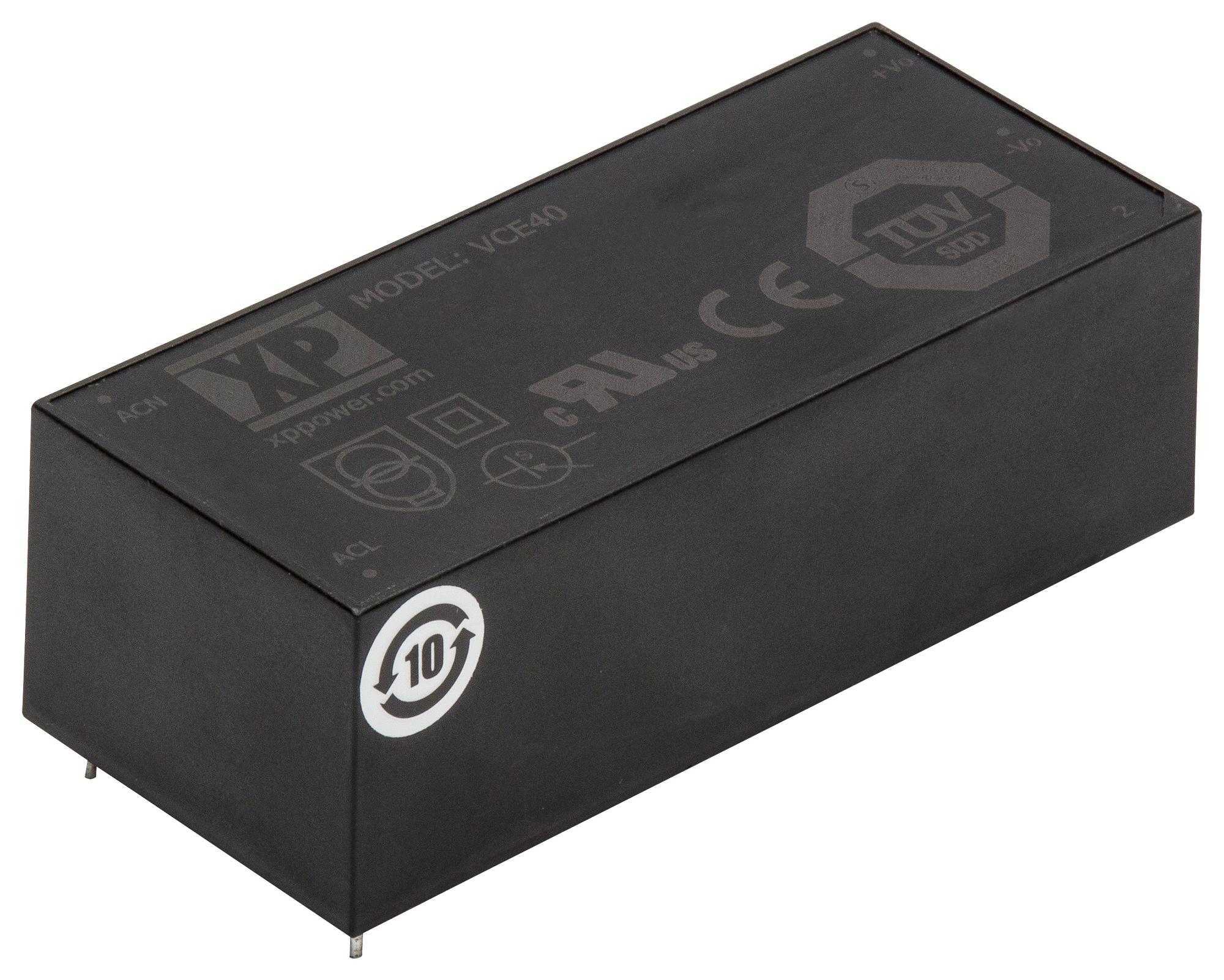

XP POWER VCE40US09 AC Power Supply
The VCE40 series comprises affordable AC-DC power supplies available in open frame and encapsulated forms, suitable for IT, industrial, and household applications. They feature a single output from 3.3V to 48VDC, support an input voltage range of 85 to 305 VAC, and meet worldwide safety and immunity standards including EN55035. Designed for ease of integration, these Class II isolation power supplies are convection-cooled, lightweight, and reliable, with certifications ensuring system safety, and are ideal for low-cost, high-efficiency power conversion in various electrical systems.
XP POWER VCE40US09 AC Power Supply Specifications:
- Input Voltage Range: 85 to 305 VAC, derates from 100% at 90 VAC to 90% at 85 VAC
- Output Power: 40 W, models available from 3.3V to 48VDC
- Efficiency: up to 85%, model dependent
- Operating Temperature: -25°C to +70°C, with linearly derating
- Dimensions: open frame 3.46 x 1.50 x 1.12 inches (87.9 x 38.1 x 28.5 mm), encapsulated 3.46 x 1.38 x 1.09 inches (85.0 x 35.1 x 27.7 mm)
- Isolation: Input to Output 3000 VAC
- Switching Frequency: 5-6 kHz
- Mechanical Weight: open frame 0.187 lbs (85 g), encapsulated 0.419 lbs (190 g)
- Certifications: IEC62368-1, IEC60335-1, IEC60950-1, UL62368-1, EN55032 Class B, compliance with safety standards
- Cooling Method: convection-cooled
- Protection Features: Overvoltage, overload, and short circuit protection
Buy the XP Power VCE40U09 – Reliable AC-DC Power Supply for Industrial Applications
Experience the reliable performance of XP Power VCE40 power supplies, offering efficient, safe, and cost-effective solutions for industrial, domestic, and IT systems. Available in open frame and encapsulated versions, these units support wide input ranges of 85 to 305 VAC, deliver outputs from 3.3V to 48VDC, and meet international safety standards including EN55032 Class B. Designed for easy integration, durability, and high efficiency, they are perfect for various low-cost, high-reliability applications in modern electrical systems.
Get XP Power VCE40U09 today—built for precision and long-lasting durability in power conversion.
