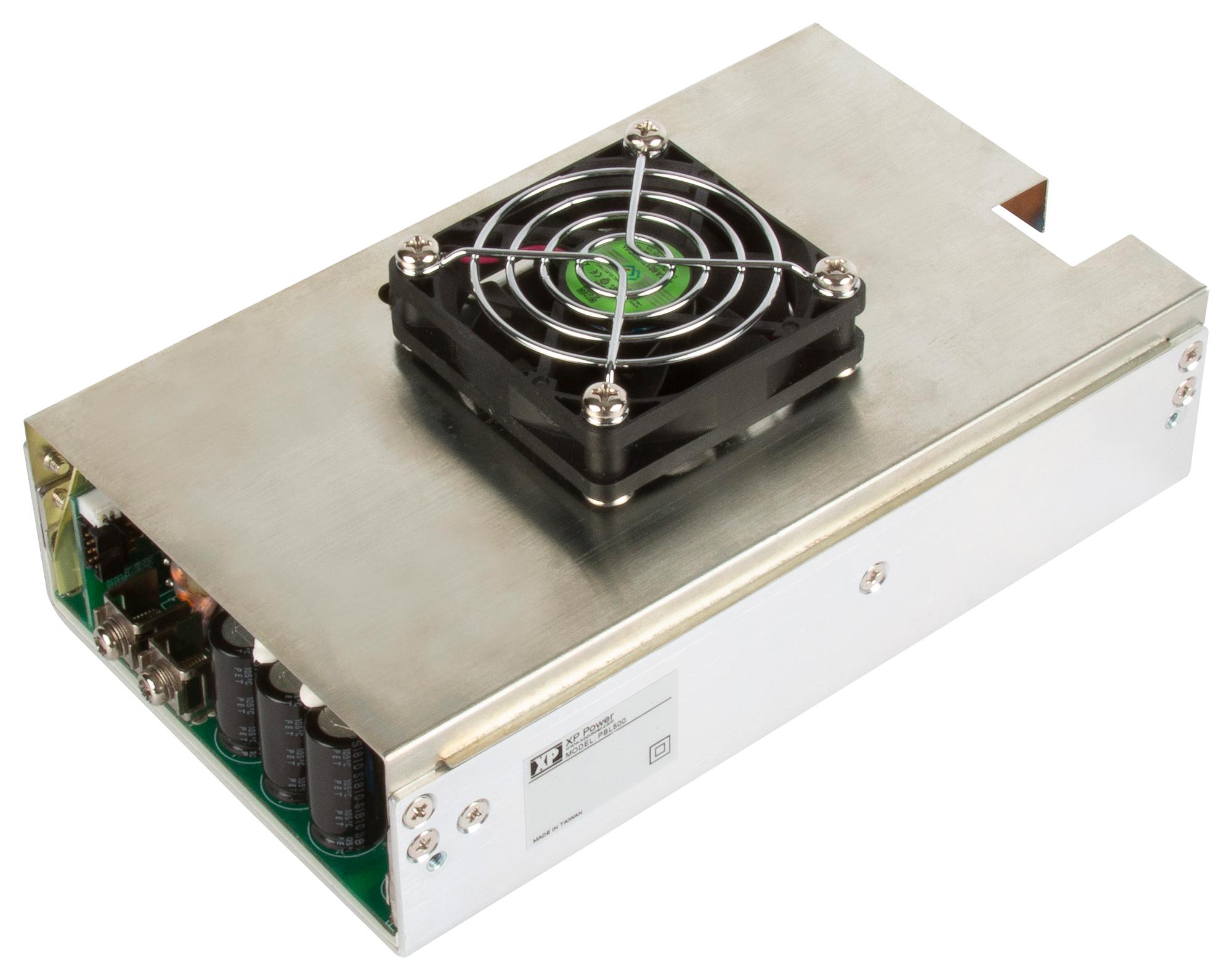

XP POWER PBL500PS36C High-Performance Power Supply
The PBL500 series is a reliable, high-capacity AC-DC switching power supply engineered for medical and industrial applications. Offering up to 500 watts of continuous power, it features forced air or convection cooling, U-channel construction for efficient heat sinking, and BF safety approvals for medical use. Its robust design includes a fan, remote sense, and Power OK signals, with a compact 4x7x1.56 inch package. Suitable for environments requiring high reliability, it operates up to 5000 meters altitude with excellent electromagnetic compliance and low noise, making it ideal for medical, automation, and industrial equipment.
XP POWER PBL500PS36C High-Performance Power Supply Specifications:
- Input Voltage: 80-264 VAC
- Input Frequency: 50-63 Hz
- Input Current: 5.2/2.6 A (115/230 VAC)
- Output Power: 450-500W with forced air cooling, 250W convection cooled
- Output Voltage Range: 12V to 57V, models include 12V, 18V, 24V, 28V, 36V, 48V, 57V
- Ripple & Noise: 120-570 mV depending on model, measured at 20 MHz bandwidth
- Efficiency: Up to 90% at full load
- Protection: Overvoltage (112-140%), Overcurrent (105-140%), Thermal shutdown
- Operating Temperature: -10°C to +50°C, derates at higher temperatures
- Altitude: Up to 5000 meters
- Dimensions: 4 x 7 x 1.56 inches (100.0 x 180.34 x 39.62 mm)
- Weight: Approximately 2.52 kg (5.56 lbs)
- Certifications: UL60601-1, CSA, CE, UKCA, EN60601-1 for medical safety
- Isolation: 4000 VAC input to case, 1500 VAC output to case
- Switching Frequency: 90-300 kHz
- Emissions: Class B conducted and radiated
Buy the XP Power PBL500 – Reliable Power Supply for Industrial Applications
Purchase the XP Power PBL500 series power supply online now to ensure your industrial or medical equipment has a reliable, efficient power source. Designed for high-demand applications, it delivers up to 500W with advanced safety certifications like UL60601-1, CSA, CE, and UKCA. Its compact U-channel design offers excellent heat sinking and cooling options, supporting operation at high altitudes up to 5000 meters. With remote sense, Power OK signals, and protection features, this power supply is ideal for critical equipment requiring dependable power amid complex environments. Order today for prompt delivery and peace of mind.
Get XP Power PBL500 today—built for medical and industrial equipment with high efficiency and safety compliance.
Frequently Asked Questions
Where can I buy XP POWER PBL500PS36C?
You can click on the BUY or RFQ button to purchase PBL500PS36C from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBL500PS36C?
You can download the PBL500PS36C datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBL500PS36C?
XP POWER
