XP POWER UCH600PS24 Medical Power Supply

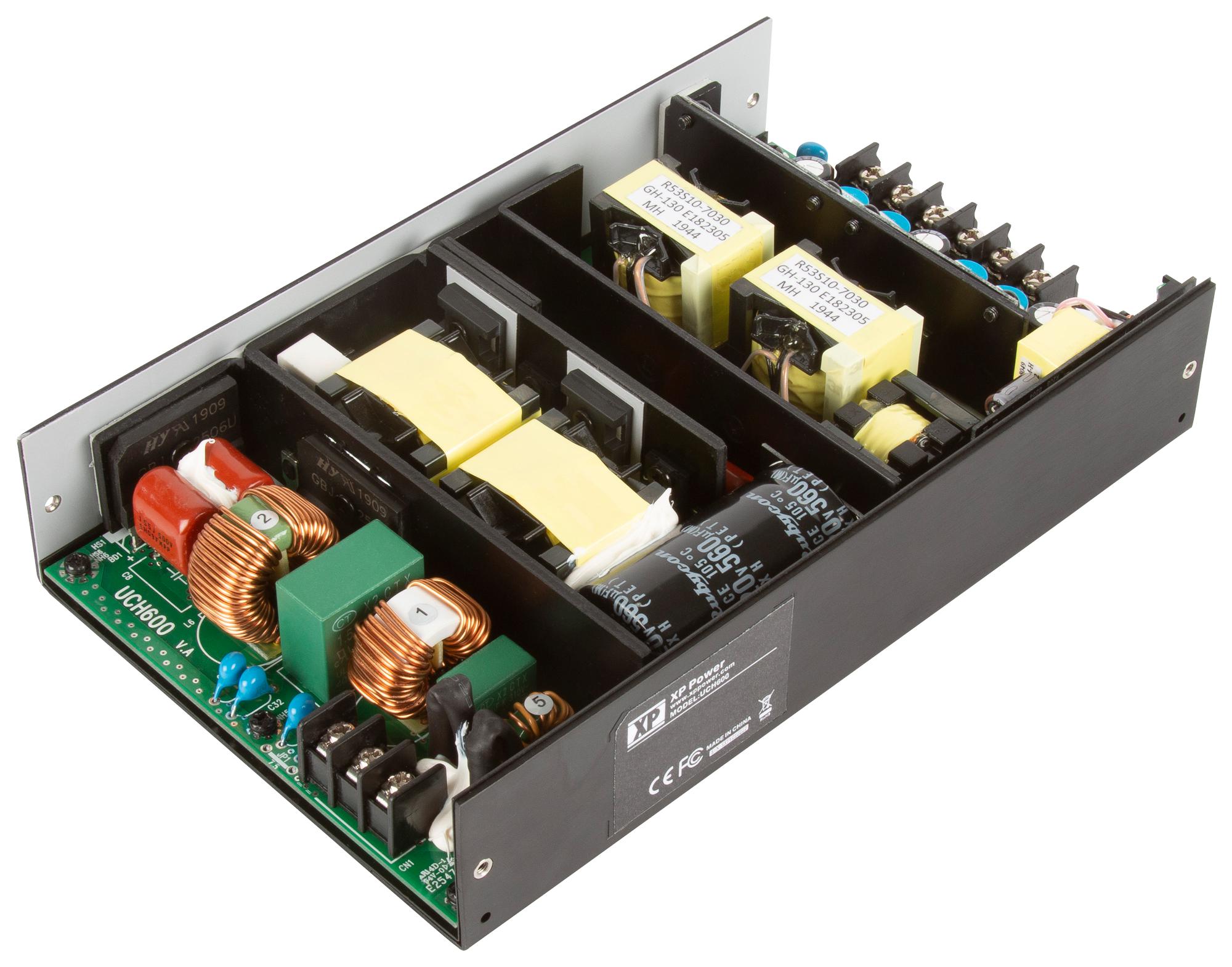

This convection-cooled, single-output AC/DC power supply is approved for medical and ITE applications. It features an ultra-compact footprint of just 5.0 inches by 8.0 inches and delivers up to 600 W of power, achieving a high power density of 9.5 W/in³. The power supply includes a 12 V/0.6 A fan output for system cooling if needed, along with a 5 V/1 A standby output. Designed with safety in mind, it contains two fuses, exhibits low leakage current as required for medical use, and is rated to operate in ambient temperatures from -20°C to +70°C. Its safety approvals meet medical and ITE standards, with conducted emissions compliant to EN55011/22 Level B. The low profile and comprehensive certifications make it suitable for a wide range of applications, including BF-rated medical equipment.
XP POWER UCH600PS24 Medical Power Supply Specifications:
- Power Output: 600 W
- Dimensions: 5.0 inches x 8.0 inches x 1.57 inches
- Input Voltage: 90-264 VAC, 50/60 Hz
- Efficiency: Up to 95%
- Operating Temperature: -20°C to +70°C
- Cooling: Convection cooled
- Safety Approvals: Medical, ITE, BF-rated
- Emissions: EN55011/22 Level B compliant
- Standby Output: 5 V/1 A
- Fan Output: 12 V/0.6 A
- Leakage Current: Low as per medical standards
- Certification: UL, IEC60601-1, EN60601-1, EN55011/22
- Weight: approximately 2.43 lbs (1100 g)
- Protection: Two fuses, low leakage current
- Environmental: Humidity 5-95% RH non-condensing
Buy the Buy XP Power UCH600PS24 Part Number UCH600PS24 Online
Secure your medical and industrial applications with the high-performance UCH600 series power supply. Compact, convection-cooled, and rated for 600 W, it features high efficiency up to 95%, low leakage current, and comprehensive safety approvals including medical and ITE standards. Ideal for BF applications, this power supply includes a 12 V fan output for system cooling, a 5 V standby output, and has been tested for reliability in environments from -20°C to +70°C. Efficient, certified, and built for versatile use—purchase this reliable power unit online today and ensure optimal performance and safety in your projects.
Buy XP Power UCH600PS24 now and experience unmatched reliability and high efficiency for medical-grade power supply needs.
Frequently Asked Questions
Where can I buy XP POWER UCH600PS24?
You can click on the BUY or RFQ button to purchase UCH600PS24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part UCH600PS24?
You can download the UCH600PS24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of UCH600PS24?
XP POWER
