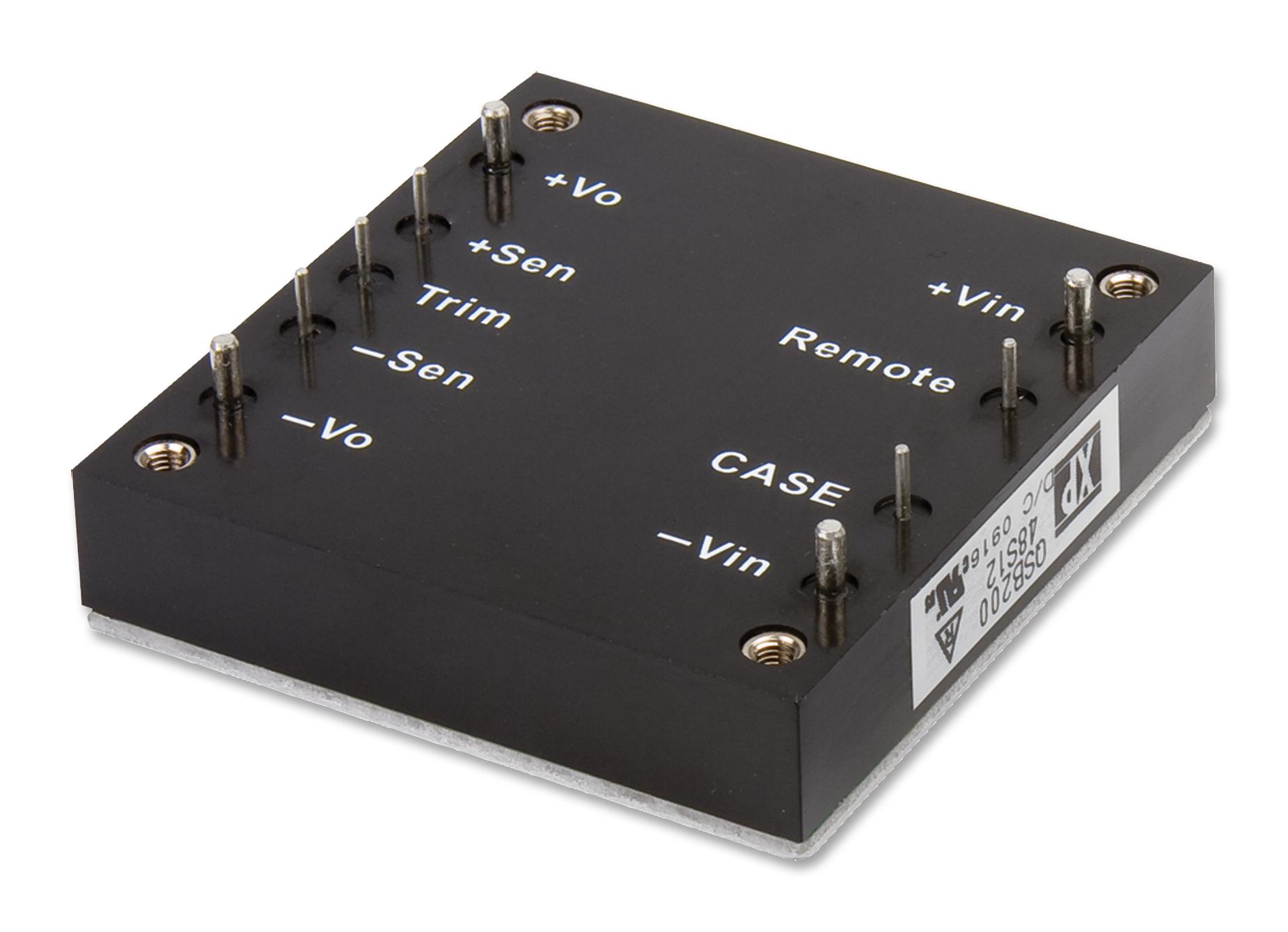

XP POWER QSB15024S12 Power Supply Module
The QSB Series features high-density, industry-standard power supplies designed for reliable operation across a wide temperature range from -40 °C to +100 °C. These units support input voltages from 9 V to 75 VDC, making them suitable for various industrial applications. Equipped with remote On/Off, remote sense, and thermal shutdown capabilities, they provide stable output voltages with excellent regulation, transient response, and ripple noise performance. Designed for base plate cooling, these power modules are ideal for demanding environments requiring high power density and enhanced safety features with UL and EN compliance.
XP POWER QSB15024S12 Power Supply Module Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC depending on model
- Output Power: 75 to 350 Watts
- Output Voltage: 3.3V, 5.0V, 12V, 15V, 24V, 28V
- Output Current: up to 830A for 3.3V models, 650A for 12V models, 70A for 48V models
- Ripple & Noise: 100-280 mV pk-pk depending on output voltage model
- Line Regulation: 0.2% max
- Load Regulation: 0.2% max measured from 0-100% load
- Efficiency: Up to 91.5% depending on model
- Isolation Voltage: 1500 VDC input to output and case
- Operating Temperature: -40°C to +100°C, derating as per curves
- Switching Frequency: 250-330 kHz depending on model
- Base Plate Cooling: Yes, with derating curves provided
- Safety Certifications: UL60950-1, EN55022 level A emissions
- Remote On/Off: Yes, negative logic type available
- Remote Sense: Yes, compensates up to 10% of output voltage
- MTBF: 658,000 hours for 350W models, 730,000 hours for 75-100W models
- Dimensions: Approx. 1.14 x 2.28 inches (28.96 x 57.90 mm) with mounting holes
- Weight: ~0.25 lbs (114 g)
Buy the Power Supply Series QSB 75-350W: QSB15024S12
Enhance your industrial setup with our Power Supply Module Series QSB 75-350W. Compact, high-density design with wide input voltage range, remote On/Off, sense, and thermal shutdown ensures stable power delivery. Ideal for challenging environments, its excellent regulation, ripple noise, and efficiency make it perfect for automation, control systems, and manufacturing. Easily integrated with standard mounting options, this power supply is your reliable solution for high-performance applications. Order online now and benefit from fast delivery and quality assurance.
Buy Power Supply Series QSB 75-350W now and experience unmatched reliability and performance for demanding industrial applications.
Frequently Asked Questions
Where can I buy XP POWER QSB15024S12?
You can click on the BUY or RFQ button to purchase QSB15024S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part QSB15024S12?
You can download the QSB15024S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of QSB15024S12?
XP POWER
