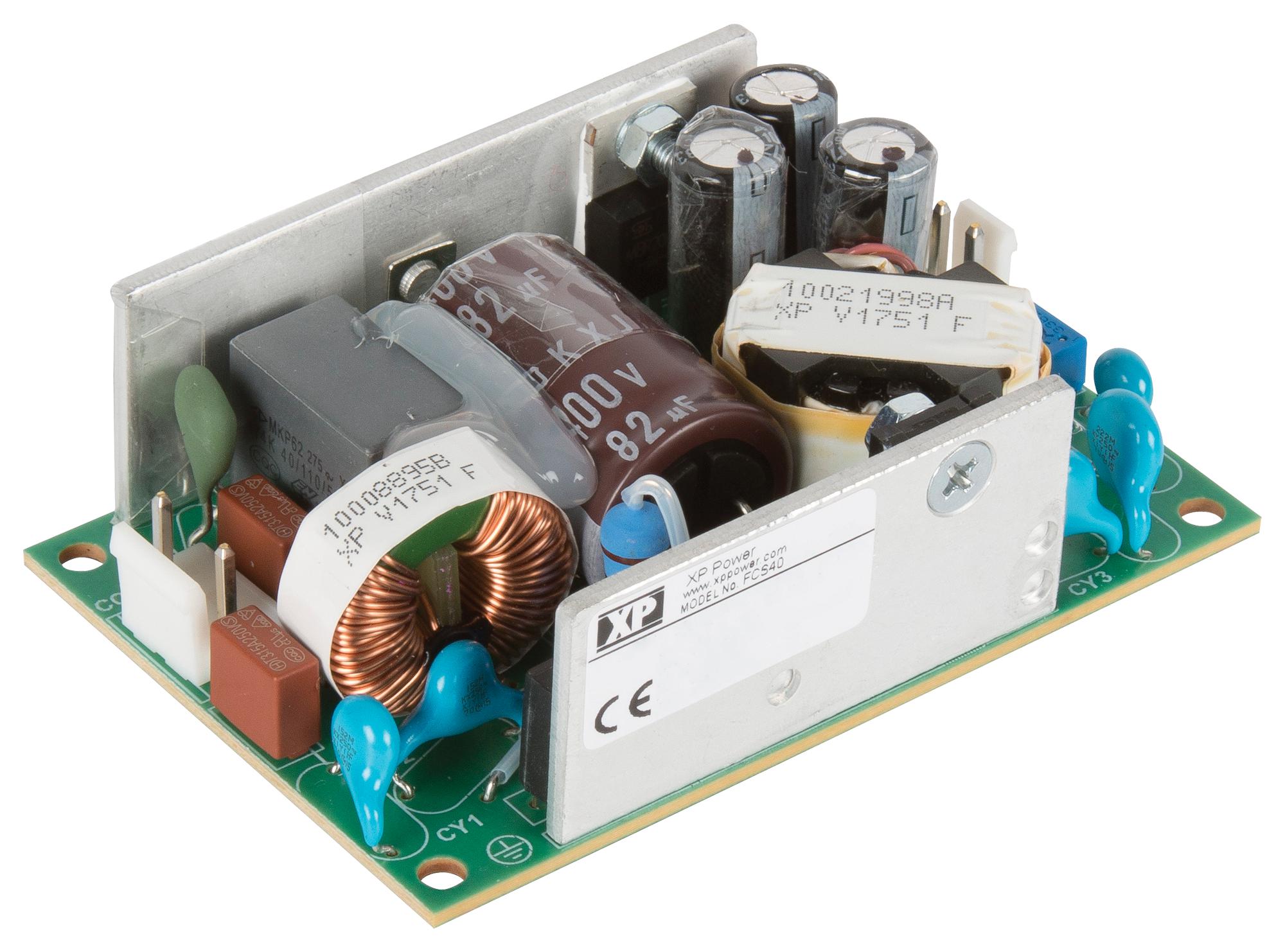

XP POWER FCS40US36 Power Supply
The FCS40 series is a high-efficiency, low-profile 40W AC-DC power supply designed to meet modern environmental and safety standards. It features a compact footprint of 2 inches by 3 inches with a height of only 1.04 inches. This convection-cooled power supply supports input voltages ranging from 90V to 264VAC, operating down to 80VAC with minimal de-rating. It includes two AC line fuses and has low leakage currents, making it suitable for medical, ITE, and household appliance applications. The unit complies with safety standards for both Class I and Class II installations and provides high power density with low no-load input power of less than 0.3W. Its versatility and safety features make it suitable for a wide range of electronic equipment, especially in medical environments.
XP POWER FCS40US36 Power Supply Specifications:
- Power Rating: 40W
- Input Voltage Range: 90V to 264VAC
- Input Voltage Operating Range: 80V to 264VAC
- Efficiency: Up to 86%
- Power Factor: EN61000-3-2 Class A
- Output Voltage: 12V to 48V (models FCS40US12 to FCS40US48)
- Output Voltage Adjustment: ±10%
- No Load Power Consumption: Less than 0.3W
- Dimensions: 2 inches by 3 inches footprint, height 1.04 inches
- Isolation: Input to Output 4000 VAC, Input to Ground 1500 VAC, Output to Ground 500 VAC
- Cooling Method: Convection
- Operating Temperature: 0°C to +70°C, derates beyond
- Certifications: IEC 60601-1 for medical, IEC 60335-1 for household, safety approvals for Class I & II
- Feature: Two line fuses, low leakage current, high power density
Buy the Toya FCS40US36 – Reliable AC-DC Power Supply for Medical and Industrial Applications
Purchase the Toya FCS40 series 40W AC-DC power supply online today to ensure your electronic devices operate reliably and efficiently. This compact, high-efficiency unit offers low no-load power consumption, safety approvals for medical and household applications, and support for a wide input voltage range from 90VAC to 264VAC. Its low profile design (2x3 inches, 1.04-inch height) makes it ideal for space-constrained environments. With two AC line fuses and low leakage currents, it guarantees safety and stability for critical applications. Buy now for fast delivery and uncompromised performance.
Order your Toya FCS40US36 series 40W power supply today and equip your devices with a dependable, efficient power source suitable for medical and industrial uses.
Frequently Asked Questions
Where can I buy XP POWER FCS40US36?
You can click on the BUY or RFQ button to purchase FCS40US36 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FCS40US36?
You can download the FCS40US36 datasheet or visit the XP POWER website for support.
Who is the manufacturer of FCS40US36?
XP POWER
