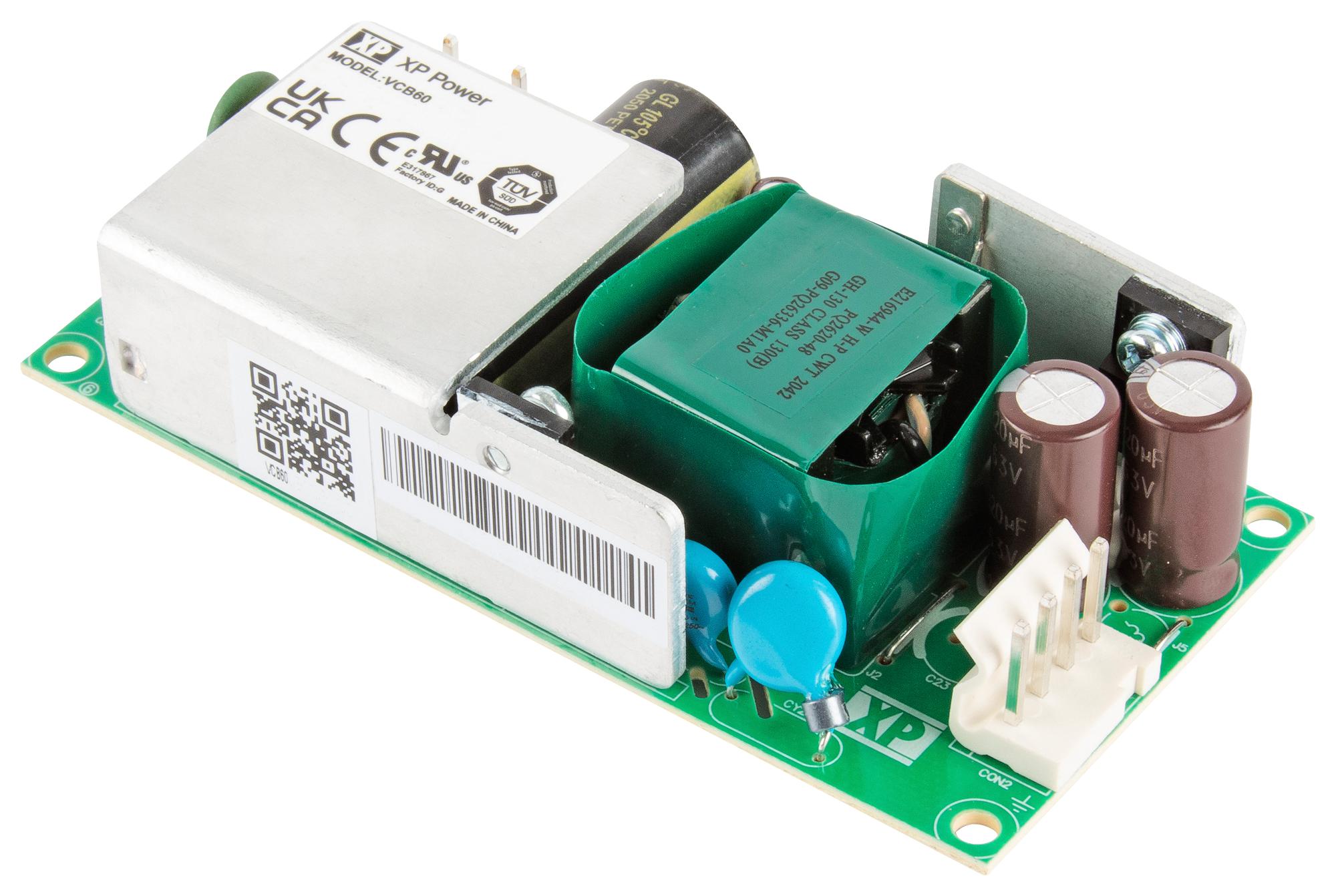

XP POWER VCB60US12 Power Supply
The VCB60 series is a line of open-frame, 60W AC-DC power supplies with a low profile design, suitable for a wide range of cost-sensitive applications including information technology equipment, industrial electronics, domestic devices, Internet of Things (IoT), and robotics. These power supplies are convection-cooled, measuring 4 inches by 2 inches with a low profile of just 1.01 inches, allowing for easy integration into compact spaces. They are certified to multiple safety and EMC standards, including IEC60950, IEC62368, IEC60355, EN55024, EN55035, EN61000-4, EN55032, EN55014, and EN61000-3, ensuring safe operation across diverse environments. The units feature protections against short circuit, overvoltage, and overload, and operate efficiently at 90%, with full load capability from -10°C to +60°C ambient temperature. They support an input voltage range of 90-305VAC and are approved for overvoltage categories suitable for building wiring systems, making installation straightforward and safe.
XP POWER VCB60US12 Power Supply Specifications:
- Power Output: 60W
- Input Voltage Range: 90-305VAC
- Output Voltage: 5V, 12V, 15V, 19V, 24V, 30V, 48V, 54V
- Output Current: 8A (5V), 5A (12V), 4A (15V), 3.164A (19V), 2.508A (24V), 2A (30V), 1.25A (48V), 1A (54V)
- Dimensions: 4" x 2" x 1.01" (101.6mm x 50.8mm x 25.6mm)
- Efficiency: up to 90%
- Temperature Range: -10°C to +60°C operating
- Protections: Short circuit, overvoltage, overload
- Certifications: IEC60950, IEC62368, IEC60355, EN55024, EN55035, EN61000-4, UL, CB
- Isolation: Input to output 3000VAC
- Switching Frequency: 5-75kHz
- Certifies compliance with safety and EMC standards including EN55032, EN55014, EN61000-3
- Safety Approvals: Overvoltage category III, suitable for building wiring systems
Buy the Buy XP Power VCB60US12 Part Number VCB60US12 Online
Purchase the XP Power VCB60US12 online and enjoy a durable, high-efficiency 60W power supply designed for industrial, IoT, and domestic applications. Compact and convection-cooled, it features a low profile of just 1.01 inches and measures 4 by 2 inches, making it ideal for space-constrained environments. Certified to multiple safety standards, it offers safe and reliable operation with protections against short circuit, overvoltage, and overload. The input voltage range of 90-305VAC and efficiency up to 90% ensure optimal performance, making it perfect for low-cost, high-quality power solutions.
Get XP Power VCB60US12 today—built for reliable operation in industrial, IoT, and domestic electronic applications with high efficiency and broad input range.
Frequently Asked Questions
Where can I buy XP POWER VCB60US12?
You can click on the BUY or RFQ button to purchase VCB60US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCB60US12?
You can download the VCB60US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCB60US12?
XP POWER
