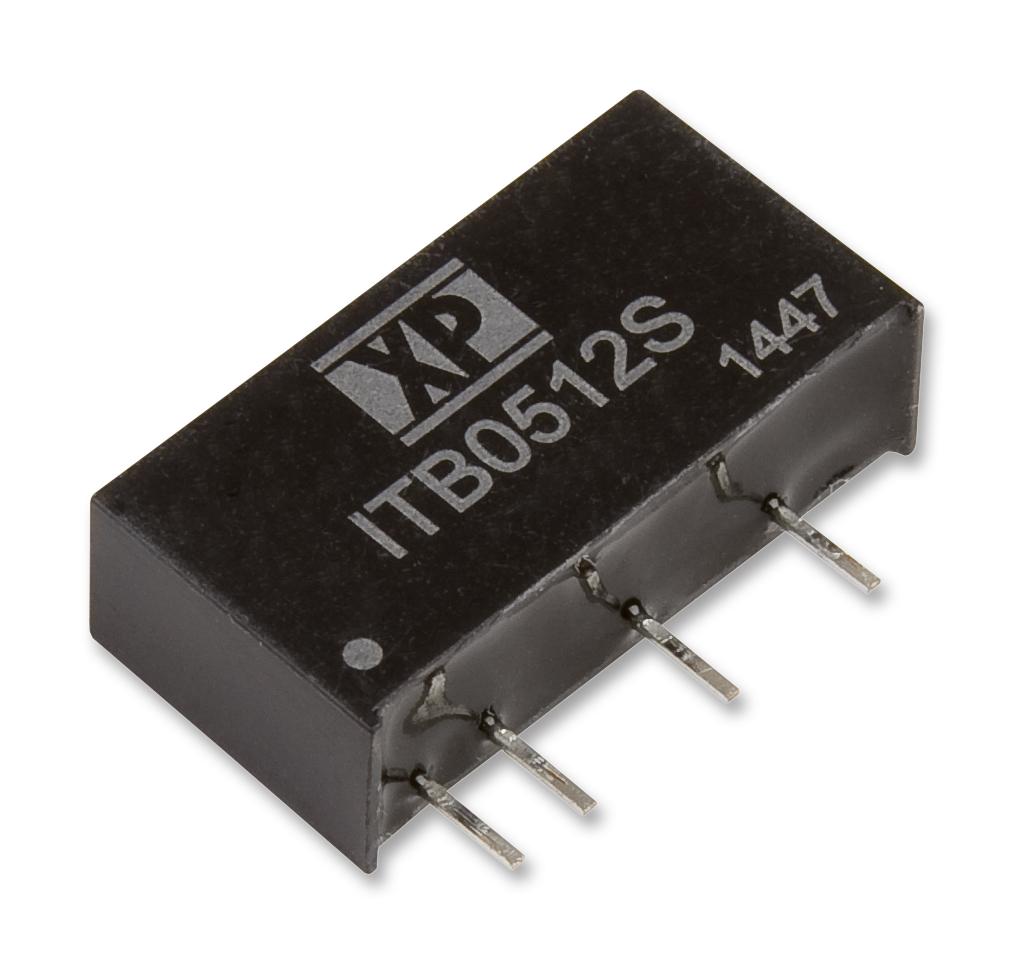

XP POWER ITB0512S Industrial Power Converter
The ITB Series DC-DC Converter offers a reliable 1 Watt power solution with a compact SIP package design. Operating over a temperature range of -40°C to +105°C, it supports full load conditions at 95°C ambient temperature. Designed for industrial applications, it provides 1500 VDC isolation, low noise, and high efficiency up to 81%. Suitable for various voltage conversions such as 5V, 12V, and 15V outputs, it features continuous short circuit protection, MTBF over 3.5 million hours, and a 3-year warranty, ensuring durable and stable power delivery in demanding environments.
XP POWER ITB0512S Industrial Power Converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 5V to 24V
- Output Voltages: 5V, 12V, 15V, 12V, 15V (multiple models)
- Output Current: 15 mA to 200 mA depending on model
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +105°C
- Full Load at 95°C Ambient
- Efficiency: Up to 81%
- MTBF: Over 3.5 million hours
- Dimensions: 0.76 x 0.24 x 0.39 inches (19.5 x 6.0 x 10.0 mm)
- Full Load at 95°C Ambient
- Conducted & Radiated Emissions: Class B
- Input Surge Voltage: 8V to 30V for 1000 ms
- Ripple & Noise: 60 mV pk-pk
- Isolation Resistance: 10^2 Ohms
- Weight: Approximately 0.0083 lbs (3.8 grams)
Buy the XP Power ITB0512S – Reliable Industrial Power Converter for High-Temperature Environments
Purchase the XP Power ITB Series industrial power converter online today to enjoy reliable power in demanding industrial environments. This compact, high-efficiency converter supports multiple voltages and features wide temperature operation from -40°C to +105°C, making it ideal for critical industrial, automation, and control projects. With 1500 VDC isolation, low noise, and a 3-year warranty, it guarantees long-term performance and durability. Order now to secure a dependable power solution for your equipment needing compact size, high temperature tolerance, and excellent EMI performance.
Order your XP Power ITB0512S Series industrial power converter today and ensure stable, efficient power delivery for your demanding applications.
Frequently Asked Questions
Where can I buy XP POWER ITB0512S?
You can click on the BUY or RFQ button to purchase ITB0512S from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITB0512S?
You can download the ITB0512S datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITB0512S?
XP POWER
