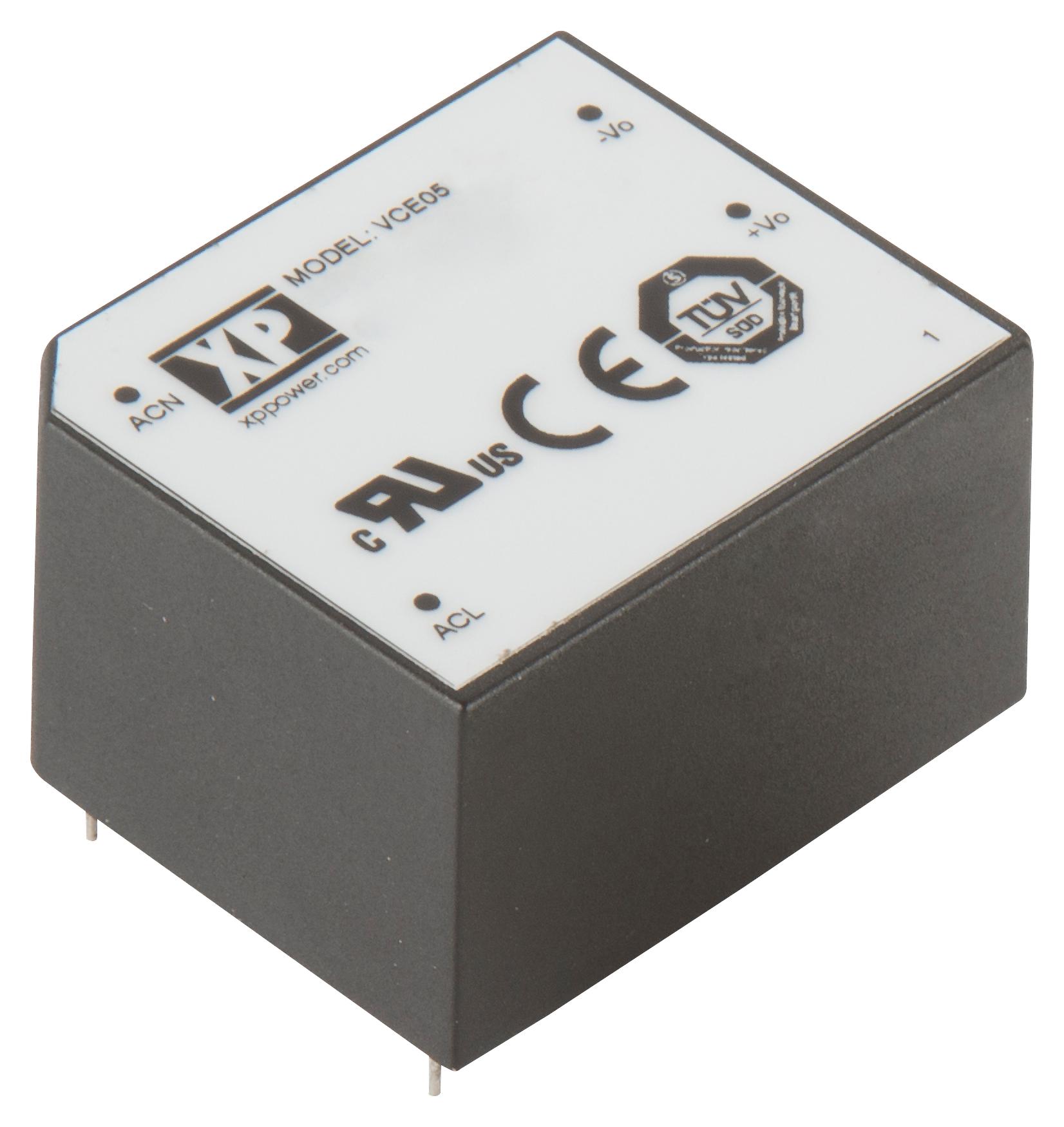

XP POWER VCE05US24 Power Supply
The VCE05 series is a compact, reliable AC-DC power supply offering a 5W output with multiple voltage options from 3.3V to 48V. Designed for low-cost industrial and ITE applications, these supplies feature open frame and encapsulated PCB mount options, meeting international safety and EMC standards. With high efficiency up to 78%, low no-load power consumption, and peak load capabilities of 130%, the series ensures secure operation within -25°C to +70°C. Ideal for embedded systems, automation, and control panels, they combine performance with easy integration and durability.
XP POWER VCE05US24 Power Supply Specifications:
- Input Voltage Range: 85-264 VAC
- Output Power: 5W
- Output Voltages: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V
- Output Current: 1210 mA at 3.3V, 1000 mA at 5V, 550 mA at 9V, 410 mA at 12V, 330 mA at 15V, 210 mA at 24V, 100mA at 48V
- Efficiency: Up to 78%
- No Load Power Consumption: <0.3 W
- Operating Temperature Range: -25°C to +70°C
- Isolation Voltage: 3000 V
- Dimensions (Open Frame): 1.30 x 1.10 x 0.75 inches
- Dimensions (Encapsulated): 1.20 x 1.00 x 0.70 inches
- Protection: Overload (180%), Short Circuit, Overvoltage (40%Vnom)
- Certifications: UL60950, IEC60950, EN60950, EMC EN55022 Class B
- Switching Frequency: 20 kHz
- MTBF: 3400 hours
- Weight: 14g (Open Frame), 24g (Encapsulated)
Buy the XP Power Series VCEO5 5W Power Supply: VCE05US24
Purchase your XP Power VCE05US24 power supply online today to benefit from dependable performance, high efficiency, and wide input range. Perfect for industrial automation, embedded systems, and control panels, this versatile 5W power supply offers multiple output options and meets international safety standards. Its compact design, low no-load power consumption, and robust protection features make it ideal for demanding environments. Buy now to ensure your projects receive reliable, high-quality power with fast delivery and excellent support.
Order your XP Power Series VCE05US24 compact power supply today and ensure your industrial systems operate reliably with efficient, safe power solutions.
Frequently Asked Questions
Where can I buy XP POWER VCE05US24?
You can click on the BUY or RFQ button to purchase VCE05US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE05US24?
You can download the VCE05US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE05US24?
XP POWER
