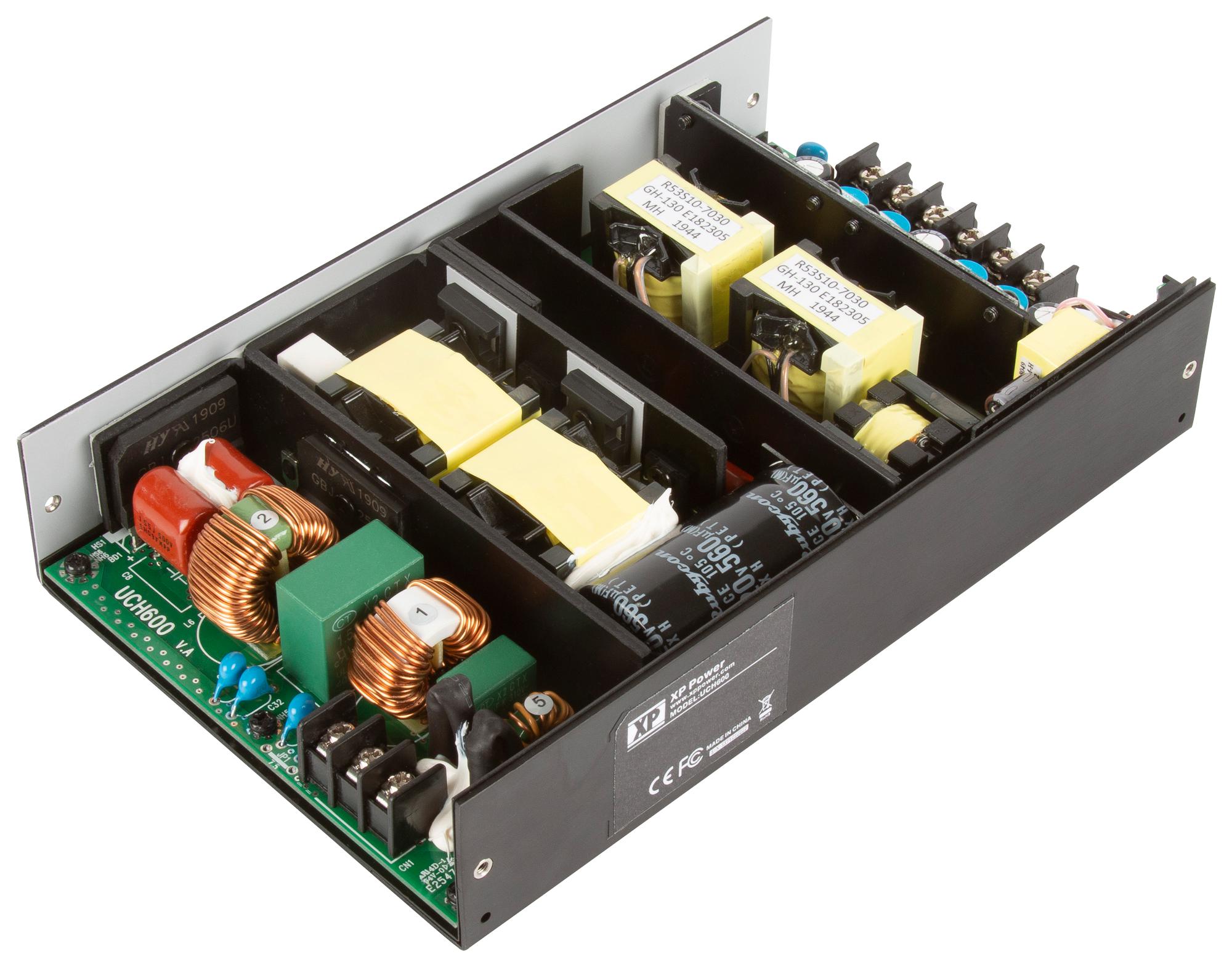

XP POWER UCH600PS36 Medical Power Supply
This convection-cooled single-output AC/DC power supply is approved for medical and industrial (ITE) applications. It features a compact footprint of just 5.0 inches by 8.0 inches and provides up to 600 W of power, resulting in a high power density of 9.5 W per cubic inch. The unit includes a 12 V/0.6 A fan supply for system cooling if needed, along with a 5 V/1 A standby output. Designed with safety in mind, it incorporates two fuses and low leakage currents in compliance with medical standards. The power supply operates reliably in ambient temperatures up to 70°C and is safety certified for both medical and ITE applications. It meets conducted emission standards EN55011/22 Level B, making it suitable for a wide range of applications, including BF medical use. Additional features include remote on/off control and operation across a temperature range from -20°C to +70°C.
XP POWER UCH600PS36 Medical Power Supply Specifications:
- Power Output: 600 W
- Input Voltage: 90-264 VAC
- Efficiency: Up to 95%
- Dimensions: 5.0 inches by 8.0 inches by 1.57 inches (127 mm x 203.2 mm x 40 mm)
- Operating Temperature: -20°C to +70°C
- Cooling: Convection cooled
- Safety Approvals: Medical (IEC60601-1), ITE, BF applications
- Emissions: EN55011/22 Level B conducted and radiated
- Standby Output: 5 V/1 A, 12 V/0.6 A fan supply
- Features: Remote On/Off, low leakage currents, two fuses
- Power Density: 9.5 W/in³
- Operating Altitude: Up to 5000 meters
- Input Protection: Fuses (F12A/250V)
Buy the Power Supplies Series UCH600 AC/DC Power Supply: UCH600PS36
Experience the reliable performance of the UCH600PS36 medical and industrial power supply. With a compact footprint of just 8 inches by 5 inches, it delivers up to 600 W of power with efficiencies reaching 95%. Perfect for medical, ITE, and BF applications, it features low emissions, remote on/off control, and a wide operating temperature range from -20°C to +70°C. Its robust design includes dual safety fuses and low leakage currents, ensuring safety compliance and long-term durability. Purchase online now for trusted performance in critical applications.
Get UCH600PS36 power supply today—built for high efficiency, compact design, and reliable medical-grade performance.
