XP POWER VCE10US03 Power Supply Module
The VCE10 power supply series by XP Power offers compact, reliable 10W AC-DC single output modules suitable for industrial, domestic, and ITE applications. Available in open frame and encapsulated PCB mount options, these units deliver voltages from 3.3V to 48V with efficiencies up to 80%. They feature worldwide safety approvals, low no-load power consumption, and operate across a wide input range of 85-305 VAC. With robust design, they ensure stable performance in a variety of environments, meeting stringent EMC and safety standards for versatile system integration.
XP POWER VCE10US03 Power Supply Module Specifications:
- Input Voltage Range: 85-305 VAC, derates at 90 VAC to 90%
- Efficiency: Up to 80%, model-dependent
- Output Power: 10W
- Output Voltage: 3.3V to 48VDC
- Output Current: 2400mA at 3.3V, 210mA at 48V
- Dimensions (Open Frame): 2.00 x 1.15 x 0.91 inches (50.8 x 29.2 x 23.1 mm)
- Dimensions (Encapsulated): 1.90 x 1.05 x 0.88 inches (48.3 x 26.7 x 22.4 mm)
- Operating Temperature: -25°C to +70°C, linearly derated
- Protection: Short circuit, overload, overvoltage, auto-recovery
- Isolation Voltage: 3000 VAC input to output
- Approval Standards: IEC62368-1, UL62368-1, IEC60335-1, EN62368-1
- EMC: EN55032 Level B, EN61000-3-2, EN61000-3-3, EN55024
- Switching Frequency: 5-50 kHz
- Humidity: 95% RH non-condensing
- Altitude: Up to 3048 meters

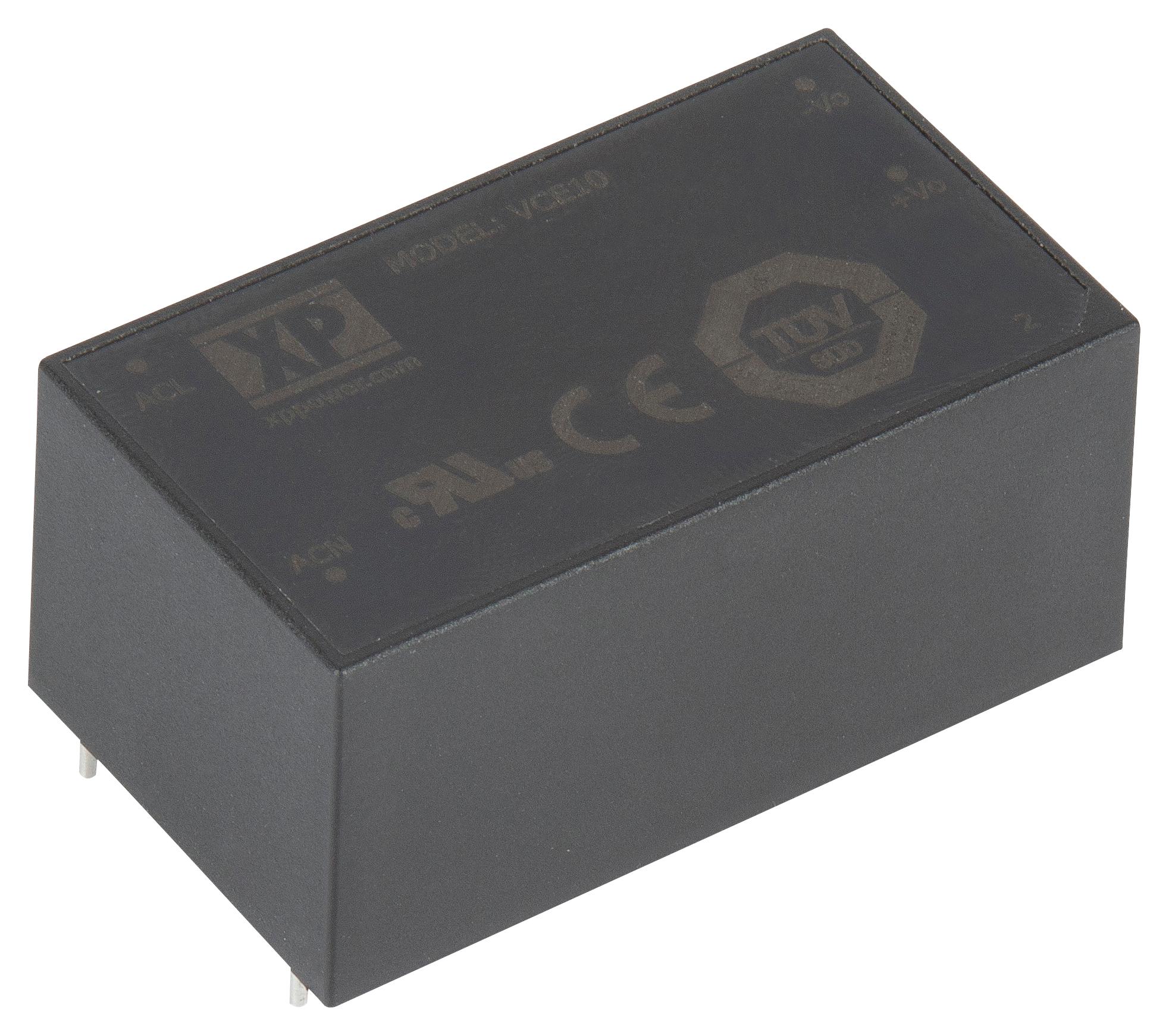

Buy the Buy XP Power VCE10US03 Power Supply Part Number VCE10US03 Online
Secure your advanced power solutions with the XP Power VCE10US03 single output 10W power supply. Designed for industrial, domestic, and ITE applications, it is compact, efficient, and easy to integrate. Featuring approvals for worldwide safety standards, broad input voltage range, low no-load power consumption, and reliable overload protection, this module guarantees stable operation in diverse environments. Ideal for designers seeking dependable power supply units—order online today to streamline your project deployment and ensure consistent performance.
Order your XP Power VCE10US03 Series 3.3VDC 10W power supply today and ensure reliable, efficient power for your industrial or domestic projects.
Frequently Asked Questions
Where can I buy XP POWER VCE10US03?
You can click on the BUY or RFQ button to purchase VCE10US03 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE10US03?
You can download the VCE10US03 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE10US03?
XP POWER
