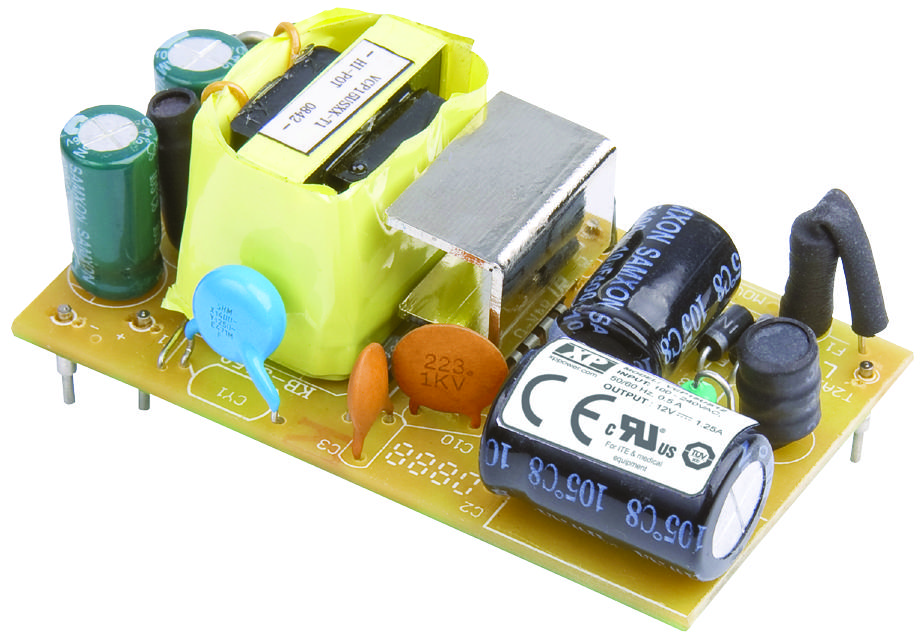

XP POWER VCP15US24 Power Supply Module
This device is designed with IT and medical applications in mind, featuring 3rd edition safety approvals. It is a PCB mount component with Class II construction and no load input power. The product is suitable for medical systems requiring reliable safety standards. It operates from 90-264 VAC, with efficiencies measured at 25%, 50%, 75%, and 100% load. It includes features like 4000VAC input-output isolation, low no load power consumption, and comprehensive safety and EMC approvals, making it ideal for critical medical and industrial power supply needs.
XP POWER VCP15US24 Power Supply Module Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 47-63 Hz
- Input Current: 0.5 A max at 90 VAC
- Inrush Current: 40 A max at 240 VAC, cold start at 25 °C
- Power Factor: EN61000-3-2, class A
- No Load Input Power: <0.3 W
- Output Voltage Options: 5V, 12V, 15V, 24V (other voltages available on request)
- Output Power Range: 15 W with efficiencies based on load conditions
- Output Regulation: ±2% at 50% load, 0-100% load regulation within 2%
- Ripple & Noise: Measured at 20 MHz bandwidth, 20 mV typical
- Isolation Voltage: 4000VAC input to output
- Operating Temperature: 0°C to +70°C, derating from 50°C to 70°C at full load
- Cooling: Natural convection
- Operating Humidity: 5-90% RH, non-condensing
- Storage Temperature: -20°C to +80°C
- Vibration: 10-300 Hz, 2g for 15 mins/sweep, 3 axes
- Safety & EMC: EN55032, EN61000-3-2, EN61000-3-3, EN61000-4 series, UL, cUL, IEC60950-1, IEC60601-1, CE, UKCA
- Dimensions: Open Frame 2.72 x 1.209 x 0.820 inches; Encapsulated 2.55 x 1.197 x 0.819 inches
- Weight: Open frame approximately 40 g; Encapsulated approximately 100 g
Buy the Power Supply Series VCP: 15W Power Supply VCP15US24
Purchase the Power Supply Module Series VCP15US24 online today for your medical and industrial applications. Designed with IT and medical standards, it offers reliable safety, wide input voltage range, high efficiency, and 4000VAC isolation. Its PCB mount design simplifies integration into various systems, and its certifications ensure compliance with international safety standards. Ideal for critical systems requiring stable power, low-noise output, and robust construction, this module delivers performance, safety, and long-term durability. Buy now and ensure your system’s power needs are met with confidence.
Get Power Supply Series VCP15US24 today—built for medical and industrial reliability and efficiency.
Frequently Asked Questions
Where can I buy XP POWER VCP15US24?
You can click on the BUY or RFQ button to purchase VCP15US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCP15US24?
You can download the VCP15US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCP15US24?
XP POWER
