XP POWER VCE40US03 Power Supply
The VCE40 series consists of open frame and encapsulated AC-DC power supplies with a single output, designed for cost-effective ITE, industrial, and domestic applications. They are available in both open frame and PCB-mount encapsulated options. These power supplies are compliant with worldwide safety standards for ITE and household appliances, meeting Class B regulations for conducted and radiated emissions. They feature a wide input voltage range of 85 to 305 VAC and provide output voltages from 3.3V to 48V DC. The products are approved to EN55035 immunity standards and are classified as Class II isolation components, facilitating easy integration into various systems.
XP POWER VCE40US03 Power Supply Specifications:
- Input Voltage Range: 85-305 VAC, derating from 100% at 90 VAC to 90% at 85 VAC
- Output Power: 30W (3.3VDC), 40W (5VDC, 9VDC, 12VDC, 15VDC, 24VDC, 48VDC)
- Output Voltage Accuracy: 1.5% for 8V8 & BV models, 1% for others at 60% load
- Efficiency: Up to 85%, model dependent
- Operating Temperature: -25°C to +70°C, linearly derating output at higher temperatures
- Isolation: Input to Output 3000 VAC
- Switching Frequency: 5-6 kHz, varied with load
- Dimensions: Open frame - 3.46 x 1.50 x 1.12 inches, encapsulated - 3.46 x 1.38 x 1.09 inches
- Weight: Open frame - 0.187 lbs (85 g), encapsulated - 0.419 lbs (190 g)
- Safety Approvals: IEC62368-1, IEC60335-1, IEC60950-1, UL62368-1
- EMI Compliance: EN55032 Class B, EN55035 immunity standard
- Start-Up Delay: 2–3 seconds, Hold-up time: 8 ms

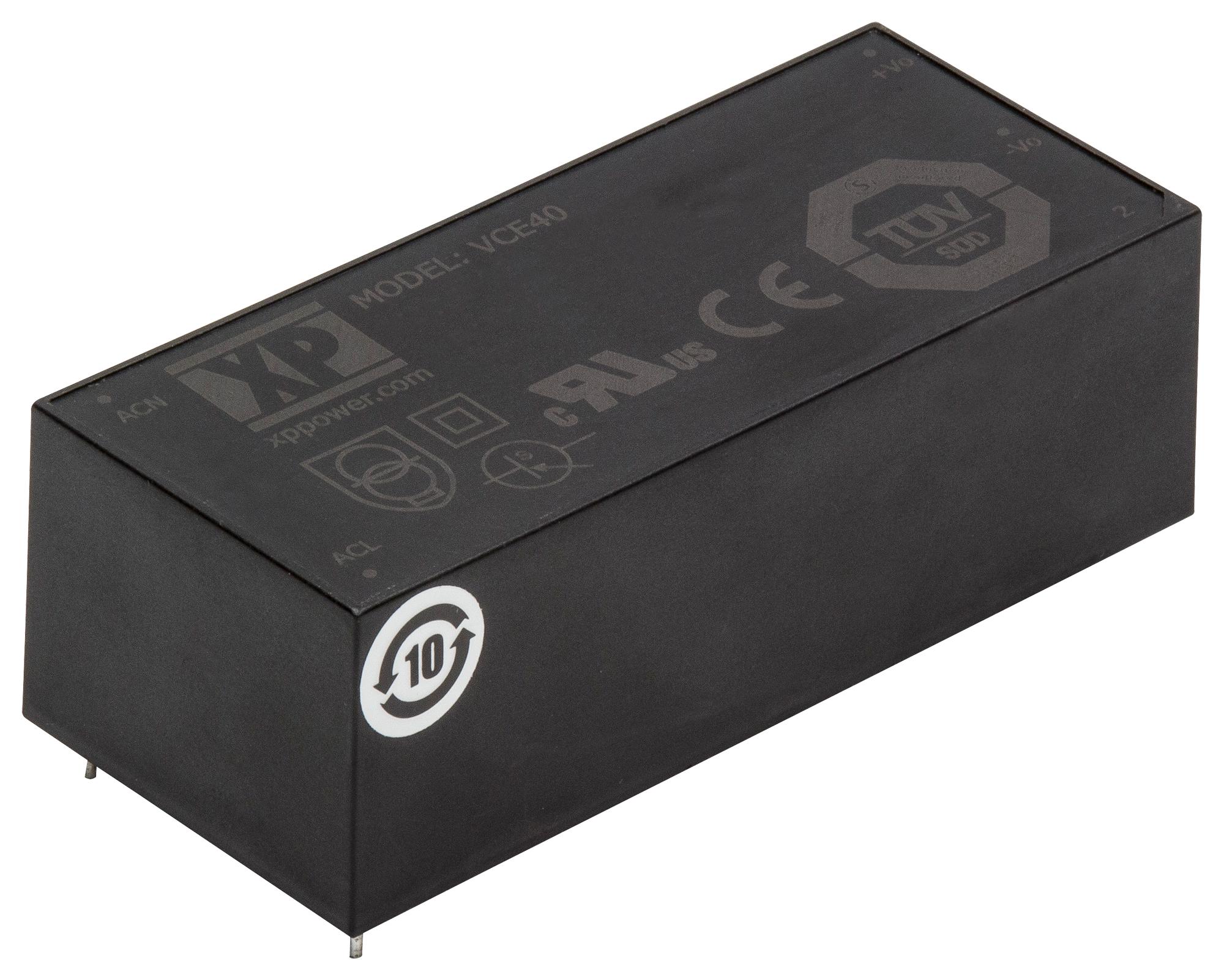

Buy the Buy XP Power VCE40 Part Number VCE40US03 Online
Purchase the XP Power VCE40 series power supply today online for reliable, safe, and efficient power conversion. Ideal for industrial, domestic, and ITE applications, these supplies offer a wide input voltage range, multiple output options, and meet international safety standards. Designed for easy integration, the VCE40 series ensures consistent performance with high efficiency, minimal noise, and robust safety features. Invest now to streamline your power management needs with trusted quality and long-lasting durability.
Get XP Power VCE40US03 today—built for precision, reliability, and versatile system integration in low-cost power supply solutions.
