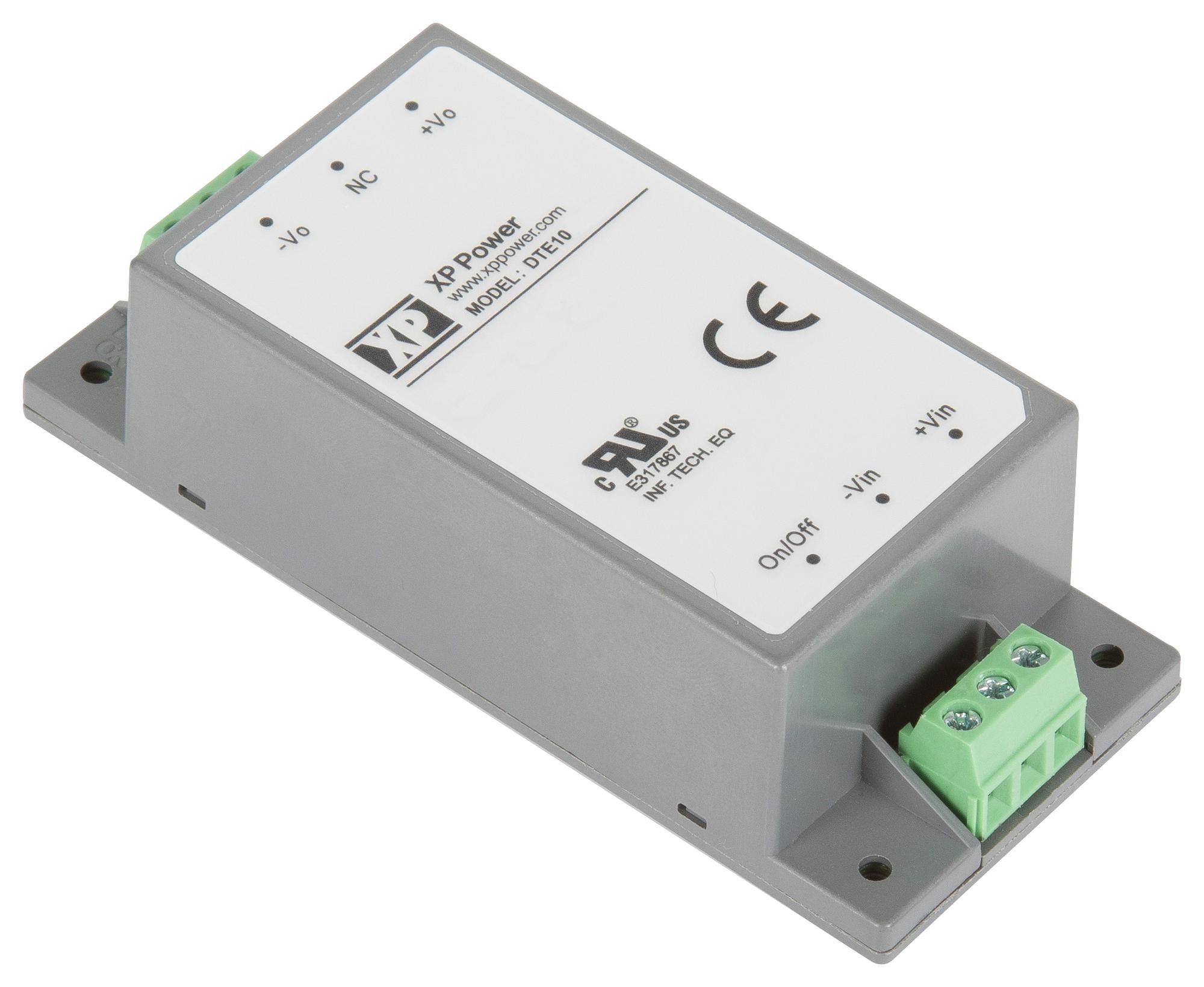

XP POWER DTE1024D15 DC-DC Converter
The DTE10 series are encapsulated 10W DC-DC converters featuring screw terminals for easy connections. An LED indicator provides a clear 'power good' signal. Their standard Remote On/Off function allows standby current to be as low as 2.5mA when inhibited. These modules offer a 3kVDC input/output isolation, ensuring excellent separation between supply and load. They are fully protected against input undervoltage, short circuits, and overloads. Designed for rugged industrial use, they operate efficiently over a wide temperature range from -40°C to +105°C, with full power available up to 80°C. Certifications include IEC/UL/cUL 62368-1 safety approvals and EN55032 Class A emissions with no external components. The modules have an MTBF greater than 4 million hours and dimensions of 3.11" x 1.34" x 0.87" (79.0mm x 34.0mm x 22.0mm).
XP POWER DTE1024D15 DC-DC Converter Specifications:
- Power: 10 Watts
- Input Voltage Range: 9-36 VDC (12V & 24V nominal), 18-75 VDC (48V nominal)
- Output Voltage Options: 5V, 12V, 15V, 24V, 48V
- Input Current: 2.00A at 5V, 0.833A at 12V, 0.666A at 15V, 0.418A at 24V, 0.208A at 48V
- Output Current: Up to 2A depending on model
- Isolation: 3kVDC input/output
- Operating Temperature: -40°C to +105°C
- Dimensions: 3.11" x 1.34" x 0.87" (79.0mm x 34.0mm x 22.0mm)
- Mounting: Chassis mount, optional DIN rail version
- Protection: Short circuit, overload, input undervoltage
- Efficiency: Up to 86%
- Safety Approvals: IEC/UL/cUL 62368-1
- Emissions: EN55032 Class A
- MTBF: Greater than 4 million hours
- Remote On/Off: Yes, standby current 2.5mA when inhibited
- Full power available up to 80°C
Buy the XP Power Series DTE Series DC-DC Converter: DTE1024D15
Order the XP Power DTE1024D15 DC-DC converter online today to ensure a reliable power supply for your industrial or commercial projects. This rugged 10W module features screw terminals for easy connections, a clear LED power indicator, and a remote On/Off function. Its 3kVDC isolation provides excellent safety separation, and extensive protections prevent short circuits, overcurrent, and undervoltage conditions. Designed for durability, it operates efficiently from -40°C to +105°C, with full power up to 80°C, and meets IEC/UL safety standards for peace of mind.
Get XP Power DTE1024D15 today—built for rugged industrial applications with wide temperature operation and reliable safety features.
Frequently Asked Questions
Where can I buy XP POWER DTE1024D15?
You can click on the BUY or RFQ button to purchase DTE1024D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE1024D15?
You can download the DTE1024D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE1024D15?
XP POWER
