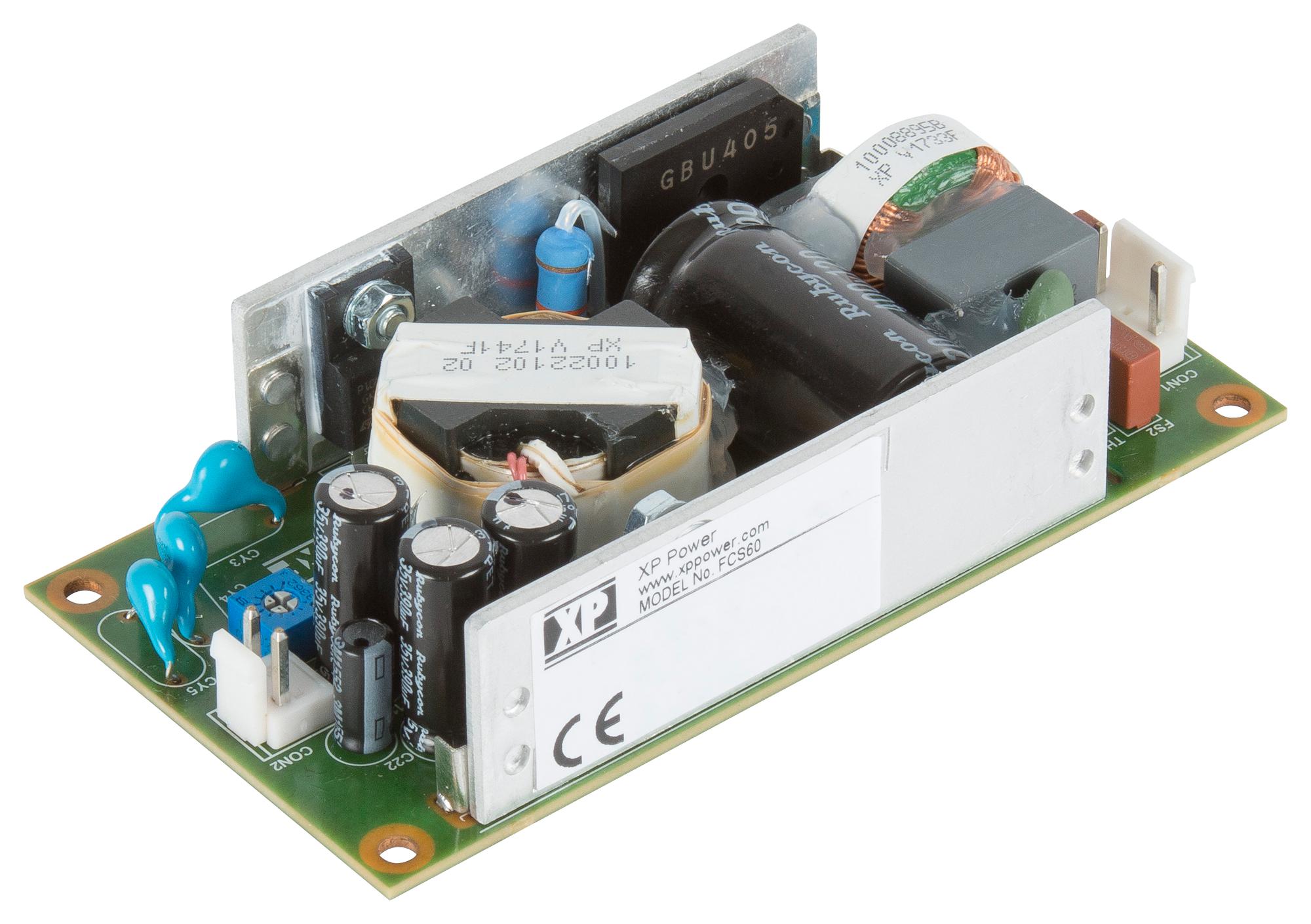

XP POWER FCS60US48 High Power Compact Power Supply
The FCS60 series is a high-efficiency, low-profile AC-DC power supply designed to meet the latest environmental and safety standards. It offers up to 60W of power across a compact footprint of 2 inches by 4 inches and a height of just 1.04 inches. Suitable for medical and industrial (ITE) applications in both Class I and Class II installations, it features low no-load power consumption below 0.3W, built-in AC line fuses, and complies with medical safety requirements. The power supply operates at input voltages down to 80VAC, making it versatile for various uses, including medical equipment and industrial devices. Its high power density, low noise, and safety approvals facilitate diverse application needs.
XP POWER FCS60US48 High Power Compact Power Supply Specifications:
- Power Output: 60 W
- Output Voltage Range: 12.0V, 15.0V, 18.0V, 24.0V, 36.0V, 48.0V
- Output Current: 5.00A, 4.00A, 3.33A, 2.50A, 1.67A, 1.25A
- Input Voltage Range: 80VAC to 264VAC
- Efficiency: 85-86%
- Dimensions: 2.00 x 4.00 x 1.04 inches (50.8 x 101.6 x 26.4 mm)
- No Load Power: Less than 0.3 W
- Temperature Range: -25°C to +70°C (derating above 50°C)
- Safety Certifications: IEC60601-1, IEC62368-1, IEC60335-1, UL, CSA, EN standards
- Isolation: 2 x MOPP (primary-secondary), 11 x MOPP (primary-earth, secondary-earth)
- Operating Altitude: Up to 5000 m
- Operating Humidity: 5% to 95% RH, non-condensing
- MTBF: 500,000 hours
- Weight: Approximately 0.25 lbs (112 g)
Buy the XP Power FCS60U–2013 Reliable AC-DC Power Supply for Industrial Applications
Purchase the high-efficiency, compact AC-DC power supply online today to ensure reliable operation in medical, industrial, or household environments. With a small footprint of just 2 inches by 4 inches and a low profile of 1.04 inches, it provides up to 60W of power with efficiencies up to 86%. Designed to meet stringent safety and environmental standards, it features low no-load power consumption below 0.3W, built-in line fuses, and operation down to 80VAC input. Perfect for diverse applications requiring high density, low noise, and proven safety compliance.
Buy XP Power FCS60U–2013 now and experience unmatched reliability and performance with high efficiency and safety standards.
Frequently Asked Questions
Where can I buy XP POWER FCS60US48?
You can click on the BUY or RFQ button to purchase FCS60US48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FCS60US48?
You can download the FCS60US48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of FCS60US48?
XP POWER
