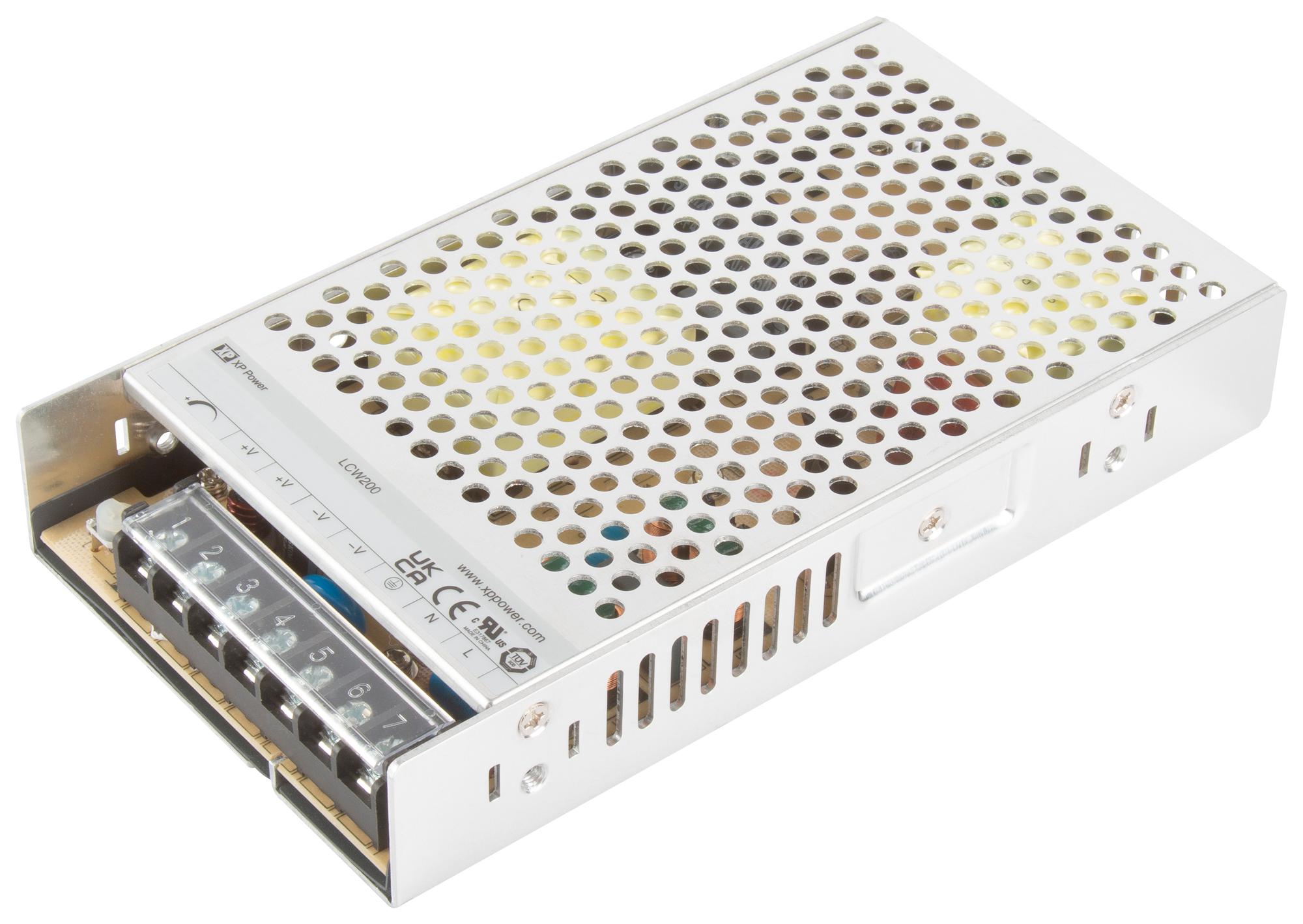

XP POWER LCW200PS12 Power Supply
The LCW200 series regulated convection-cooled AC-DC power supplies deliver 200W output, with a wide input range from 85-305VAC. They feature active PFC, adjustable output voltage, low standby power, and protections against short circuits, overloads, and overvoltage. Certified by UL, EN, CE, and UKCA, these units are ideal for industrial and security applications, smart home systems, lighting control, ticketing, and vending. Housing in aluminum chassis, they operate from -30°C to +70°C, offer up to 90% efficiency, and include optional conformal coating, making them reliable and cost-effective for critical electronic systems.
XP POWER LCW200PS12 Power Supply Specifications:
- Power Output: 200W
- Input Voltage Range: 85-305VAC
- Output Voltage Adjustment: Yes
- Efficiency: Up to 90%
- Input Frequency: 50/60 Hz
- Protection: Short circuit, overvoltage, overload, temperature
- Operating Temperature: -30°C to +70°C
- Enclosure: Aluminum chassis with vented galvanized steel cover
- Switching Frequency: 65 kHz
- Size: 7.05" x 3.89" x 1.18" (179 x 99 x 30 mm)
- Certifications: UL (UL62368-1), EN (EN62368-1), CE, UKCA
- Environmental: Non-condensing, humidity 5-90% RH
- Isolation: Input to Output 4000VAC, Input to Ground 2000VAC
- Cooling Method: Natural convection
Buy the XP Power Series 200W Convection Power Supply: LCW200PS12
Enhance your electronic systems with the high-reliability 200W convection-cooled power supply from XP Power. Features include active PFC, adjustable output, protections, efficient operation up to 90%, and certifications for safety and performance. Its compact design, operating temperature range of -30°C to +70°C, and optional conformal coating make it suitable for diverse industrial, security, and automation applications. Purchase online now for a dependable power solution designed to keep critical systems running smoothly and efficiently for years to come.
Get XP Power LCW200PS12 today—built for precision, efficiency, and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy XP POWER LCW200PS12?
You can click on the BUY or RFQ button to purchase LCW200PS12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW200PS12?
You can download the LCW200PS12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW200PS12?
XP POWER
