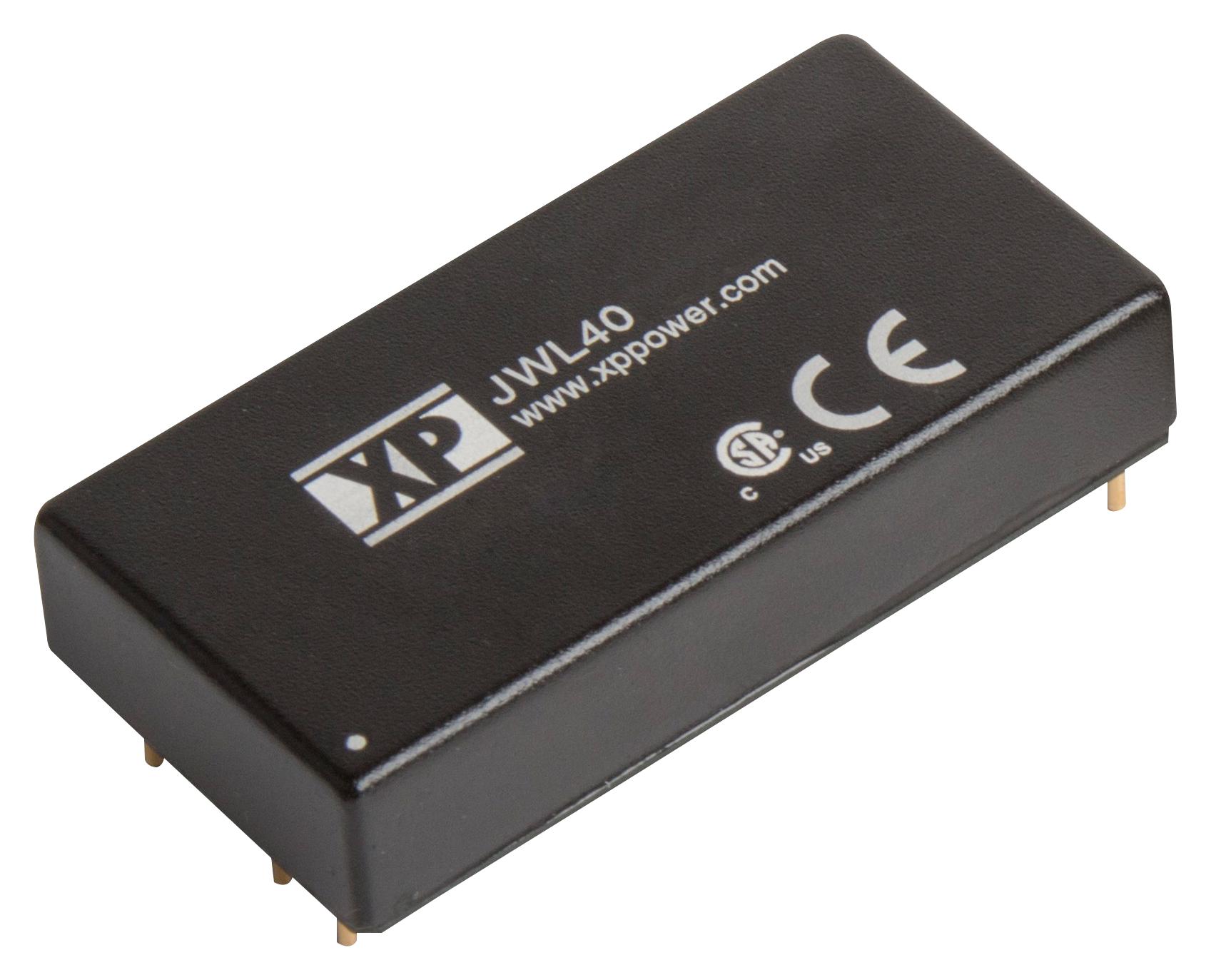

XP POWER JWL4024S12 DC-DC Power Module
The JWL40 series features power modules with an output power of 40 Watts and an ultra-wide 4:1 input voltage range, suitable for various industrial and power management applications. They support input voltages of 9V to 36VDC or 18V to 75VDC, providing flexibility for different system requirements. These modules offer either single outputs in 3.3V, 5V, 12V, 15V, or 24VDC, or dual outputs in either ±12V or ±15VDC. All models allow output voltage adjustments of ±10% via external resistor. Designed with safety and EMI compliance, they meet IEC60950-1 and UL/cUL60950-1 standards, and can operate across temperatures from -40°C to 105°C with derating. Features include 1500VDC isolation, remote On/Off control, a six-sided metal case, and Class A conducted emission compliance with external filtering.
XP POWER JWL4024S12 DC-DC Power Module Specifications:
- Power Output: 40 Watts
- Input Voltage Range: 9V to 36VDC or 18V to 75VDC
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24VDC, or dual ±12V / ±15V
- Output Voltage Adjustment: ±10% via external resistor
- Isolation: 1500VDC
- Operating Temperature: -40°C to +105°C with derating
- Efficiency: Up to 90%
- Safety Standards: IEC60950-1, UL60950-1, UL62368-1
- EMI Compliance: Class A conducted emission with external filter
- Dimensions: 2
Buy the XP Power JWL4024S12 – Reliable DC-DC Converter for Industrial Applications
Order the XP Power JWL4024S12 online today to ensure your industrial applications benefit from a high-efficiency, reliable power module with extensive safety features, 1500VDC isolation, adjustable output, and operation across wide temperature ranges. Its compact size and optional heatsink provide flexibility for various system designs. With UL, CE, and UL file safety approvals, this 40W power module guarantees safety and durability. Enhance your power management and system efficiency by purchasing this versatile, robust power solution online now.
Buy XP Power JWL4024S12 now and experience unmatched reliability and performance in compact industrial power solutions.
Frequently Asked Questions
Where can I buy XP POWER JWL4024S12?
You can click on the BUY or RFQ button to purchase JWL4024S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWL4024S12?
You can download the JWL4024S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWL4024S12?
XP POWER
