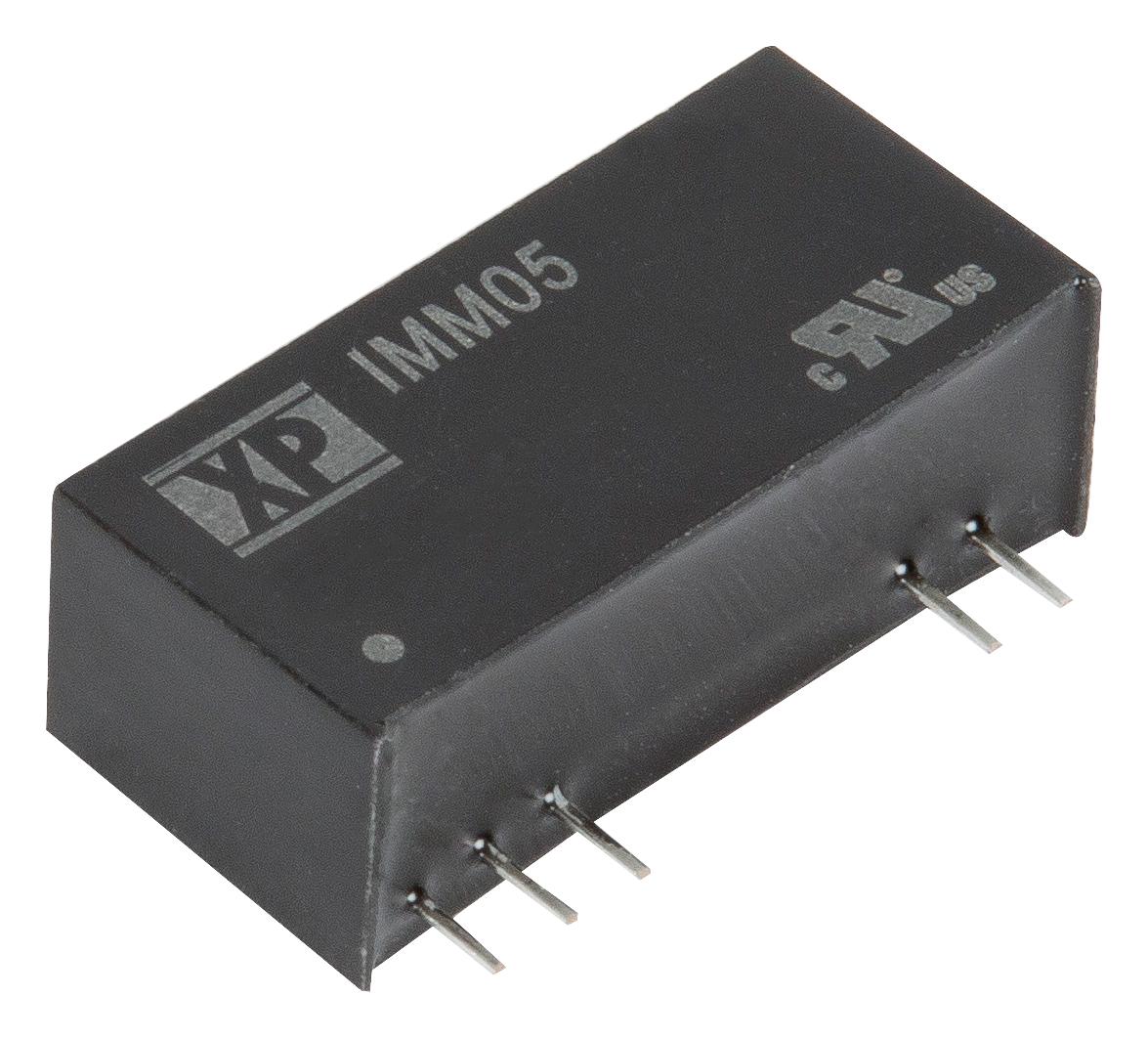

XP POWER IMM0512S05 Medical DC-DC Converter
The IMM05 series of DC-DC converters provides an ultra-compact 5W power solution with an isolation barrier between input and output, featuring low leakage current suitable for medical BF and CF applications. These converters offer regulated single and dual outputs ranging from 3.3VDC to ±15VDC, with a 2:1 input voltage range. They come in an ultra-compact SIP-9 package with 1500VAC isolation and 1 x MOPP at 250VAC, supporting remote On/Off control. Operating temperatures span from 20°C to 100°C, with full load capacity up to 60°C. The series is certified for worldwide medical standards, making it ideal for medical applications.
XP POWER IMM0512S05 Medical DC-DC Converter Specifications:
- Power: 5 Watts
- Input Voltage Range: 4.5-9.0 V, 9-18 V, 18-36 V, 36-75 V, 120 V
- Output Voltage: 3.3 V, 5 V, 12 V, 15 V, 15 V, 12 V, 15 V, 28 V, 48 V, 50 V, 72 V
- Output Current: up to 7 A depending on model
- Isolation Voltage: 1500 VAC
- Operating Temperature: -20°C to +100°C
- Full Load Operation: Up to +60°C
- Package: SIP-9
- Remote On/Off Control: Yes
- Leakage Current: 2 µA
- Certification: Worldwide medical certifications (ISO 13485, IEC 60601-1)
Buy the Buy XP Power IMMO5 Series DC Power Converter Part Number IMM0512S05 Online
Purchase the XP Power IMMO5 Series IMM0512S05 online today for a high-quality, ultra-compact 5W medical-grade DC-DC converter. Featuring 1500VAC isolation, remote On/Off, and certified for global medical standards, this converter ensures reliable power for sensitive medical electronics. Its small SIP-9 package offers easy integration into tight spaces while providing full load performance up to 60°C. Perfect for applications requiring low leakage current, such as BF and CF medical devices, with robust insulation and safety certifications ensuring compliance and safety. Shop now for fast delivery.
Order your XP Power IMMO5 Series IMM0512S05 today and ensure reliable, medical-grade power with high isolation and compact design for your critical applications.
Frequently Asked Questions
Where can I buy XP POWER IMM0512S05?
You can click on the BUY or RFQ button to purchase IMM0512S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0512S05?
You can download the IMM0512S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0512S05?
XP POWER
