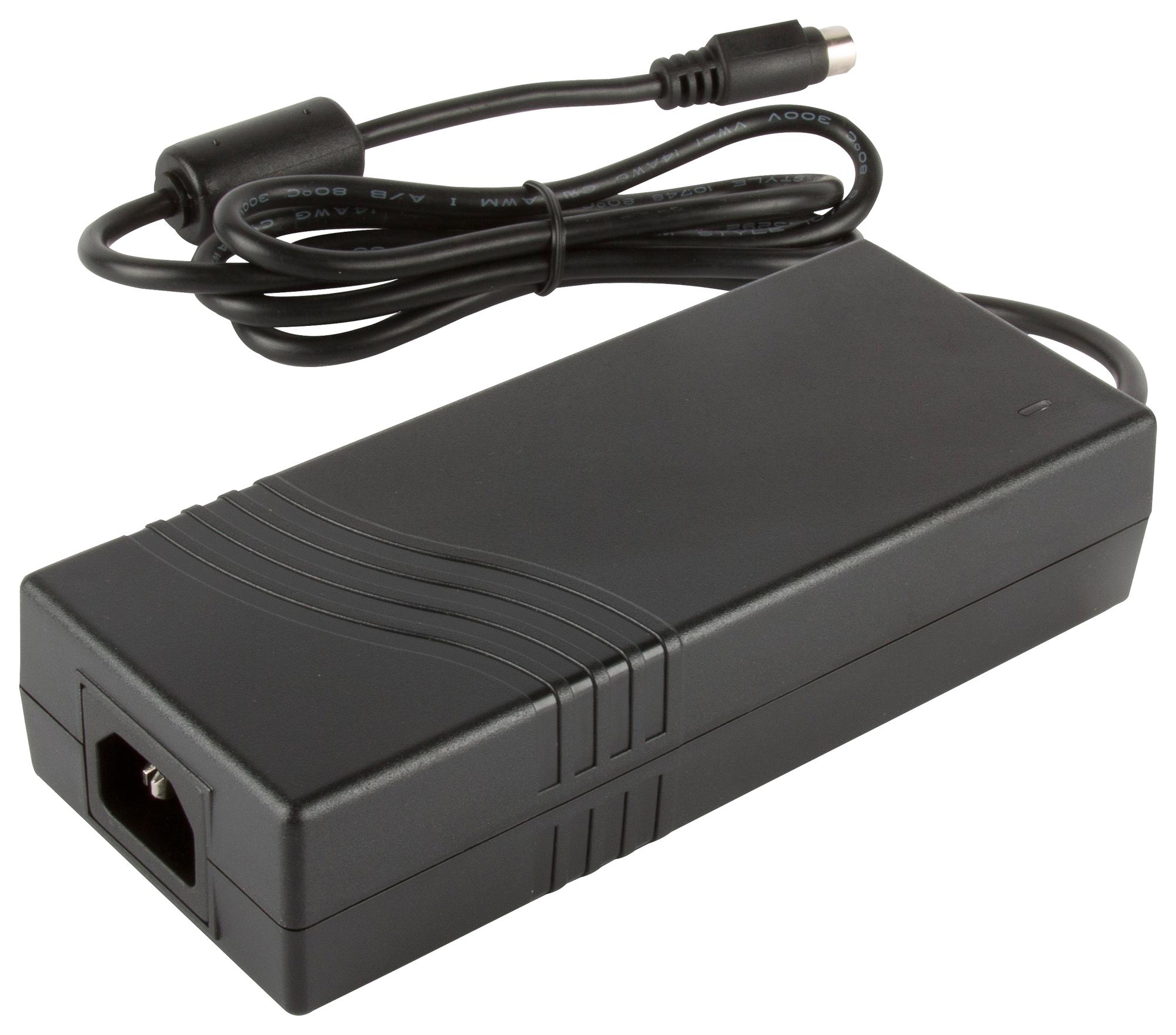

XP POWER VES220PS15 Industrial Power Supply
The VES220 series is a 220W AC to DC power supply that complies with Energy Efficiency Level VI and CoC Tier 2 standards, ensuring minimal no-load power consumption and reduced operating costs. It offers typical efficiency around 92%, which helps keep the unit cool even at full load. Features include less than 0.15W standby power, high power density, and China Compulsory Certification (CCC) approval. The power supply operates reliably within a temperature range of -10°C to +60°C. Its dimensions are 7.77 inches by 3.5 inches by 1.53 inches (197.4mm x 88.9mm x 39.0mm).
XP POWER VES220PS15 Industrial Power Supply Specifications:
- Power Output: 220 Watts
- Input Voltage: 90-264 VAC
- Input Frequency: 63 Hz
- Input Current: 22A at 115/230 VAC
- Standby Power: 0.15 W
- Efficiency: Approximately 92%
- Dimensions: 7.77 x 3.5 x 1.53 inches (197.4 x 88.9 x 39.0 mm)
- Operating Temperature Range: -10°C to +60°C
- Certifications: UL, TUV, cUL, CCC
- Compliance: Energy Efficiency Level VI, CoC Tier 2
- Isolation: Input to Output 3000 VAC
- Output Voltage Options: 12V, 15V, 19V, 24V, 48V
- Output Current Range: from 11.58A to 18.3A depending on model
- Efficiency at full load: up to 93%
- Cooling: Natural convection
- Protections: Overload, overvoltage, short circuit
- Weight: Approx. 2.2 lbs (1010 g)
Buy the Buy Toya Power Supply Part Number VES220PS15 Online
Secure your Toya Industrial Power Supply online today. With a high efficiency of 92%, low standby power, and robust safety certifications, this 220W AC/DC converter is ideal for demanding applications. Its compact size and wide temperature range ensure excellent performance in industrial environments. Easy to install with international safety approvals, it guarantees dependable power for your projects. Simplify procurement and enjoy fast delivery—order your Toya power supply now and upgrade your power solutions effortlessly.
Order your Toya SeriesVES220PS15 power supply today and experience reliable industrial power with high efficiency and certified safety standards.
Frequently Asked Questions
Where can I buy XP POWER VES220PS15?
You can click on the BUY or RFQ button to purchase VES220PS15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VES220PS15?
You can download the VES220PS15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VES220PS15?
XP POWER
