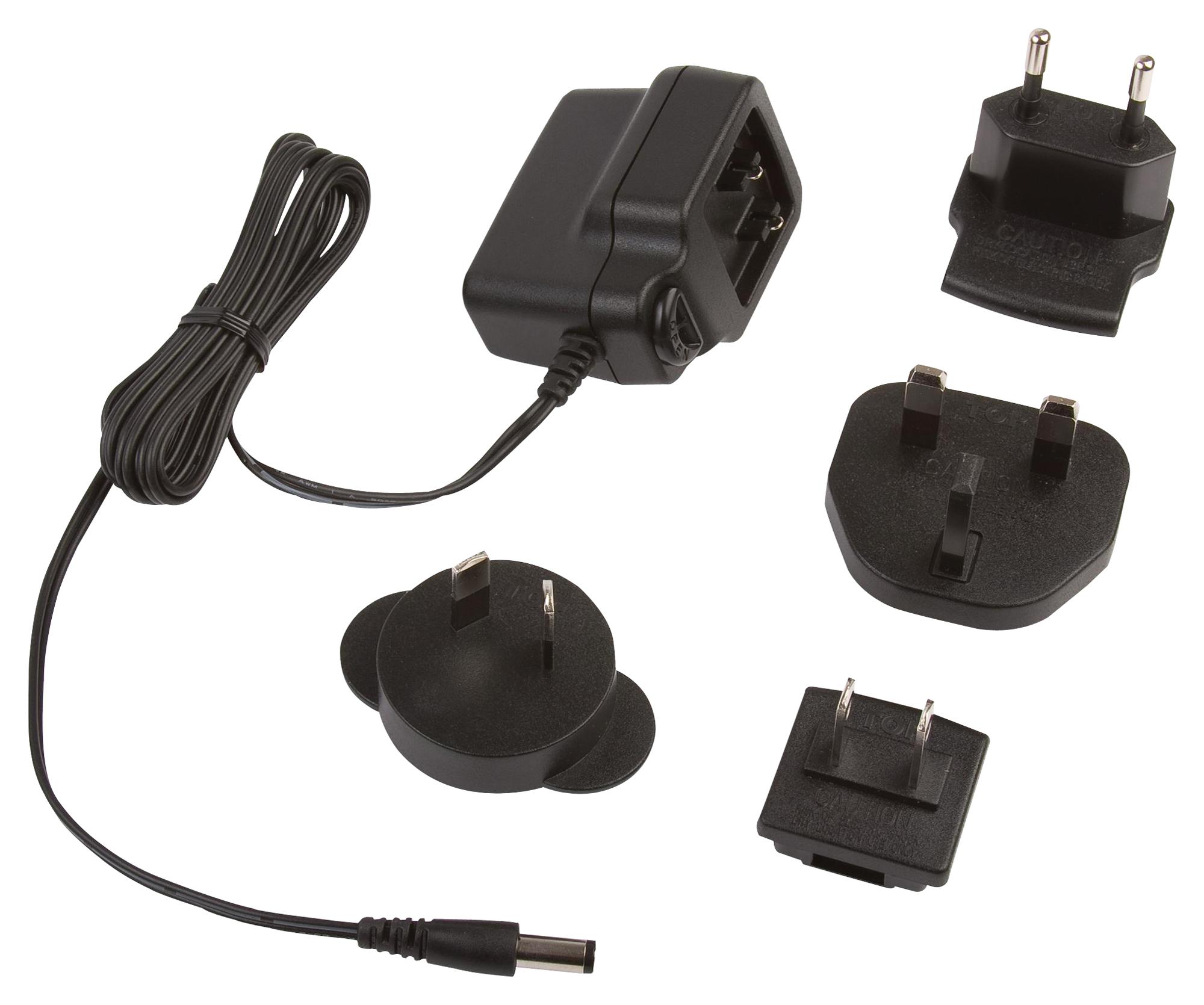

XP POWER VER18US120JA Power Adapter
The VER18 series offers energy-efficient AC-DC power supplies with a universal input range of 20-264 VAC, low no-load power consumption, and high active mode efficiency compliant with Level VI standards. These compact wall plug adaptors deliver power from 9 V to 24 V with output currents from 750 mA to 2000 mA, suitable for various cost-sensitive industrial and electronic applications. Features include interchangeable mains connectors, internal T1.0A/250 VAC fuse, transient response within 600 ms, and robust safety and electromagnetic compatibility certifications.
XP POWER VER18US120JA Power Adapter Specifications:
- Input Voltage: 20-264 VAC
- Input Frequency: 50-60 Hz
- Input Current: 0.6 A at 100 VAC
- Power Factor: Class A
- Efficiency: Level VI
- Isolation: 3000 V AC input to output
- Output Voltages: 9V, 12V, 15V, 18V, 24V
- Output Currents: 750 mA to 2000 mA depending on model
- Total Regulation: 5%
- Ripple & Noise: 160 mV pk-pk
- Protection: Continuous short circuit, auto recovery
- Operating Temperature: 0°C to +60°C, derates above 40°C
- Dimensions: 3.54 x 1.69 x 1.68 inches (90.5 x 42.0 x 42.7 mm)
- Weight: 0.18 lbs (60 g)
- Switching Frequency: 24-70 kHz
- Certifications: UL, cUL, TUV, CB, CE, Australia NZ
- Construction: Class II, LED indicator, interchangeable connectors
Buy the XP Power VER18US120JA – Reliable Power Supply for Industrial Applications
Secure your power needs with the XP Power VER18 series. These efficient, compact power supplies feature universal input, multiple voltage outputs, and are ideal for industrial, electronic, and automation projects. With high safety standards, low no-load power consumption, and interchangeable connectors, they ensure dependable operation. Easy to install and robustly built, they provide a cost-effective solution for a wide range of applications. Purchase online today for swift delivery and trusted performance.
Buy XP Power VER18US120JA now and experience unmatched reliability and performance with high efficiency and versatile output options.
