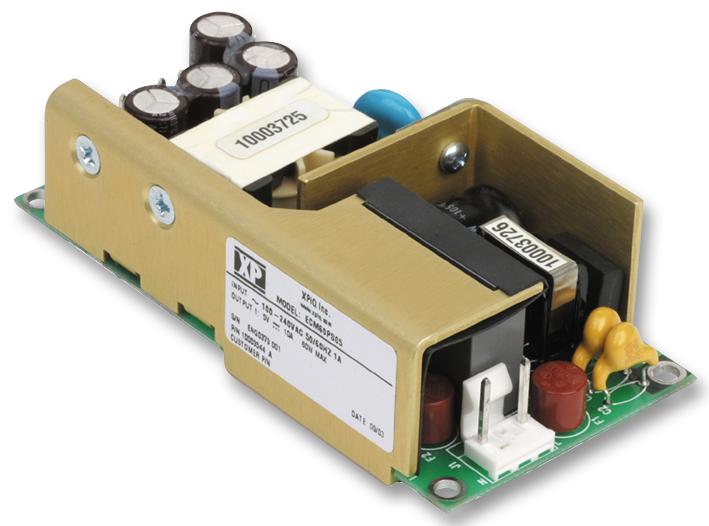

XP POWER ECM60US09 Power Supply
The ECM60US09 is a high-density 60W industrial and medical power supply, offering a compact size of 2.5" x 4.5" x 1.2" and full load operation at 0°C to +50°C. It features adjustable single output from 3.3 V to 48 VDC, high efficiency of 80-85%, low leakage current, and compliance with EN61000 Level B standards. Suitable for medical, industrial, and IT applications, it includes overvoltage, overload, and short circuit protections, with optional cover, loom, and connector kits for versatile installation and reliable operation in demanding environments.
XP POWER ECM60US09 Power Supply Specifications:
- Input Voltage: 90-264 VAC universal input, 47-63 & 440 Hz
- Output Power: 60 W
- Output Voltage Range: 3.3 V to 48 VDC, adjustable by +10%
- Efficiency: 80-85%
- Size: 2.5" x 4.5" x 1.2" (63.5 mm x 114.3 mm x 30.48 mm)
- Operating Temperature: 0°C to +50°C full load, up to +70°C with derating
- Leakage Current: Max 125 pA at 115 VAC and 210 μA at 230 VAC
- EMC: EN55032 Level B conducted emissions
- Approvals: Medical and industrial safety standards (IEC60601-1, IEC60950-1, UL 62368-1)
- Protections: Overvoltage, overload, short circuit, automatic restart in hiccup mode
- Cooling: Convection and force cooled available
- Dimensions: 2.5 x 4.5 x 1.2 inches
- Connections: Optional cover kits, mating connector and loom kits available
Buy the XP Power Series ECM60 60W Power Supply: ECM60US09
Order the XP Power ECM60US09 power supply online now to experience a compact, high-efficiency solution designed for industrial and medical environments. With adjustable output, low leakage current, and comprehensive protections, this 60W power supply ensures reliable performance across a wide temperature range. Its small form factor makes it ideal for space-constrained applications, and optional accessories like cover, loom, and connector kits make installation flexible. Trust in quality and compliance for your critical projects with easy online purchasing.
Get XP Power ECM60US09 today—compact 60W power supply built for demanding industrial and medical applications with high efficiency and reliability.
Frequently Asked Questions
Where can I buy XP POWER ECM60US09?
You can click on the BUY or RFQ button to purchase ECM60US09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECM60US09?
You can download the ECM60US09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECM60US09?
XP POWER
