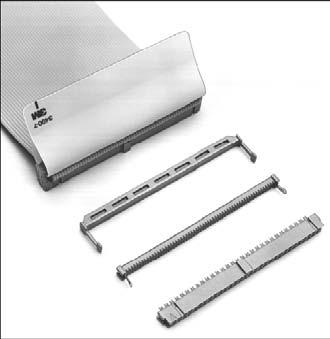

3M 33347600 Wiremount Connector
This is a highly reliable 0.100 inch wire-mounted connector designed for .050 inch pitch cable wiring applications. It features industry-standard IDC sockets with positive locking metal J-clips that ensure high cover retention. Compatible with 3M headers, plugs, and pin strips for quick connect/disconnect, it offers open or closed end covers, flat cable or discrete wire acceptance, and military polarization options. Available with transfer adhesive on covers for precise alignment, and optional pull tabs for easy unplugging, it supports a wide range of industrial and military wiring needs.
3M 33347600 Wiremount Connector Specifications:
- Material: Glass Filled Polyester (PBT)
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Copper Alloy
- Plating: Nickel, Gold
- Wire Accommodation: 26 and 28 AWG Solid and Stranded
- Current Rating: 100 pw (per wire) at 500 V, 1000 V at Sea Level
- Temperature Rating: -55°C to +105°C
- Insulation Resistance: Not specified in OCR, externally validated
- Withstanding Voltage: 1000 V at Sea Level
- Dimensions: 0.100” x 0.100” for .050” pitch cable, typical length approx 4.75mm for 26 AWG and 4.50mm for 28 AWG
- Environmental: Open or closed end covers, optional strain relief, dual polarization slots, transfer adhesive, and optional pull tabs
Buy the Buy 3M Wiremount Socket Part Number 33347600 Online
Purchase the 3M Wiremount Connector Part Number 33347600 online to ensure high-quality, secure connections for your electrical and electronic assemblies. This connector features industry-standard IDC sockets with positive locking J-clips for high cover retention, and it supports quick connect/disconnect capabilities with compatible headers and plugs. Designed with durability in mind, it offers optional strain relief, precise alignment transfer adhesive, and dual polarization slots for versatility in industrial, military, and electronics applications. Buy now for reliable performance and easy installation.
Order your 3M Series3000 Wiremount Socket Part Number 33347600 today and ensure quick, reliable, and secure cable connections for your industrial projects.
Frequently Asked Questions
Where can I buy 3M 33347600?
You can click on the BUY or RFQ button to purchase 33347600 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 33347600?
You can download the 33347600 datasheet or visit the 3M website for support.
Who is the manufacturer of 33347600?
3M
