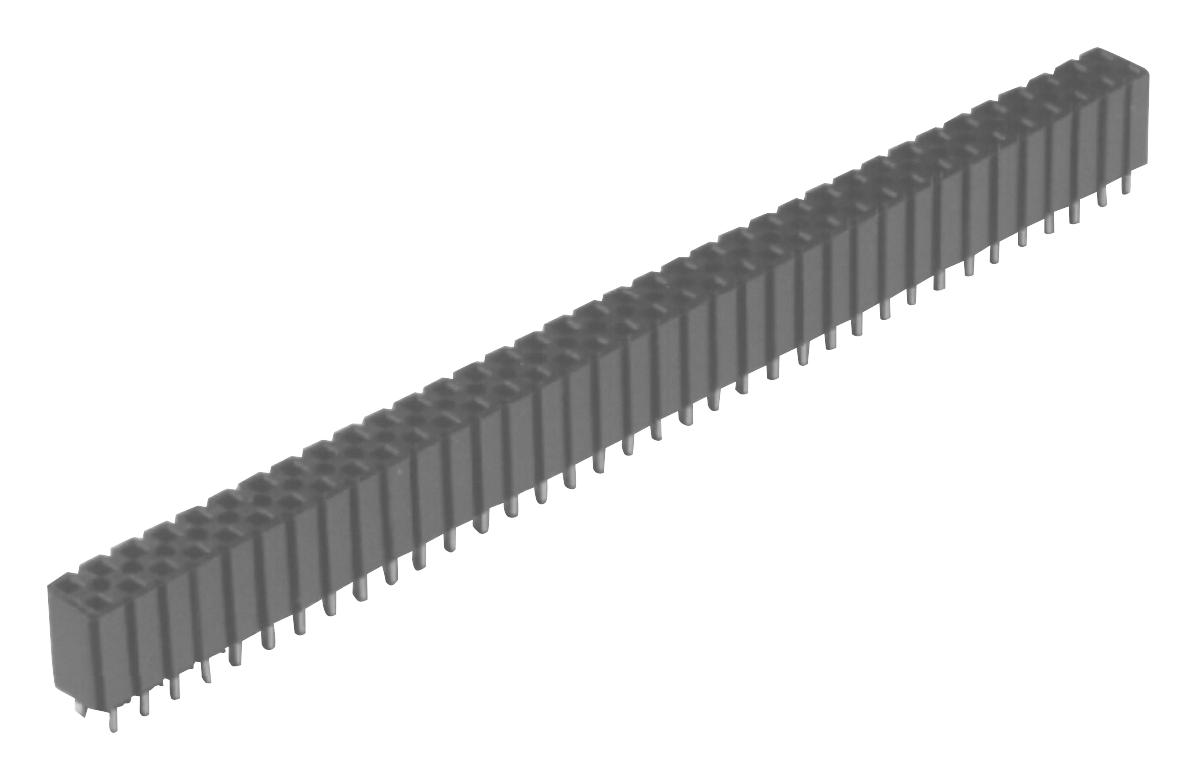

3M 9299750104RK PCB Socket
The 3M Boardmount Socket Series 929 provides reliable electrical connections for PCB applications with a flat insulator made of UL 94V-0 glass-filled polyester. Designed with a tuning fork contact, it supports 1-40 contacts in a single row or 2-80 contacts in two rows, accommodating various electrical needs. Features include solder tails for wave soldering, optional board retention, and platable contact options such as tin-lead or matte tin. Suitable for environments with temperature ranges from -40°C to +105°C, with a current rating of up to 2 amps per line, making it ideal for compact electronic assemblies.
3M 9299750104RK PCB Socket Specifications:
- Insulator Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Tin-Lead or Matte Tin
- Current Rating: 2 amps maximum per line at 65°C
- Insulation Resistance: >5 x 10^9 Ohms at 500 V
- Withstanding Voltage: 1,500 V at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (J-STD-020C), max molded insulator temp 191°C
- Physical Dimensions: Multiple options from 0.20 inch (5.08 mm) to 4.00 inch (101.6 mm) based on contact counts and row configurations
- Mounting: Through-hole, compatible with recommended mounting patterns
- Certifications: UL Listed (File No.: E68080)
Buy the 3M Series 929 PCB Socket: 9299750104RK
Enhance your electronic assembly with the reliable 3M Series 929 PCB Socket, supporting up to 80 contacts with solder tails, optional board retention, and robust electrical and thermal performance. Manufactured with durable materials and available in various plating options, this socket ensures secure connections for high-density PCB applications. Its versatile design accommodates a wide range of current ratings and temperature environments, making it essential for advanced electronics manufacturing. Order online now to experience seamless integration and dependable connectivity for your electronic projects.
Order your 3M Series 929 PCB Socket today and give your electronic projects the dependable, high-density connection they need for optimal performance.
Frequently Asked Questions
Where can I buy 3M 9299750104RK?
You can click on the BUY or RFQ button to purchase 9299750104RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299750104RK?
You can download the 9299750104RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299750104RK?
3M
