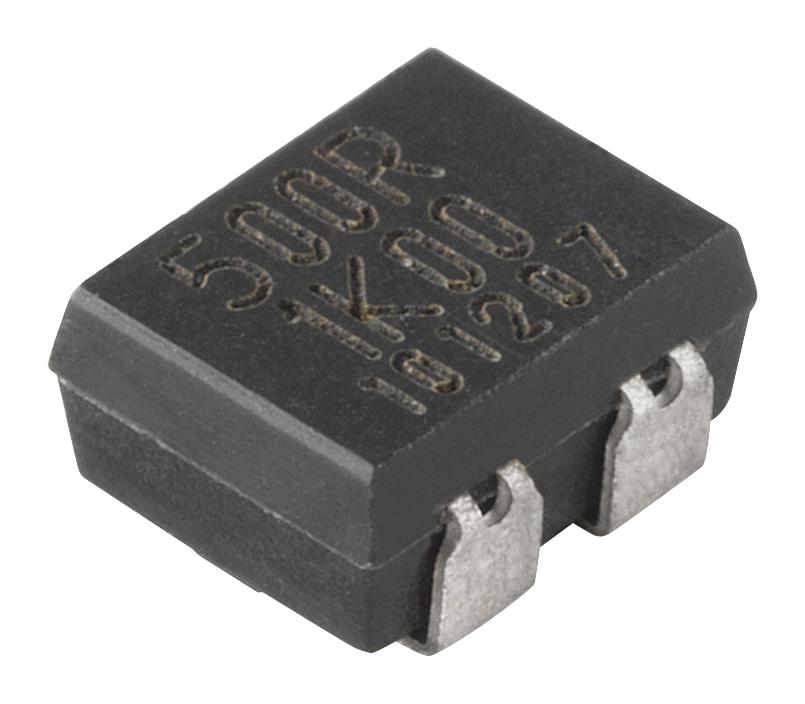

ALPHA ELECTRONICS MU1K00020K00BA Precision SMT Resistor
The MU Series ultra precision SMT resistor features a molded design with J-Lead terminals, ideal for high-reliability electronic applications. It offers precise resistance values, tight tolerance, and excellent temperature stability up to 125°C. Suitable for use in amplifiers and circuit protection, this resistor provides stable performance under thermal shock, overload, and moisture exposure. Its compact dimensions, robust construction, and RoHS compliance make it versatile for modern electronics demanding high precision and durability in compact layouts.
ALPHA ELECTRONICS MU1K00020K00BA Precision SMT Resistor Specifications:
- Resistance Range: 20Ω to 20kΩ
- Tolerance: ±0.05%, ±0.1%, ±0.5%, ±1%
- Rated Power: 0.05W to 0.5W depending on resistance value
- Maximum Operating Temperature: 125°C
- Working Temperature Range: -65°C to +150°C
- Dimensions: Length 32mm, Width 15mm, Height 14mm, with specific variations
- Material: Molded ceramic body with J-Lead terminals
- RoHS Compliant
- Dielectric Withstanding Voltage: AC 200V for 1 min
- Insulation Resistance: Over 10,000 MΩ
- Resistance to Soldering Heat: 260°C for 10 sec
- Moisture Resistance: 90-98% RH, 240 hrs testing
- Vibration and Shock Resistance: 20G, 100G respectively, 10 shocks each
- Reliability under Thermal Shock and Storage conditions tested
- Frequency Response: Suitable for high-frequency applications
- Application: Input/feedback resistors for amplifiers, circuit stabilization, and high-precision analog circuits
Buy the Buy Alpha Electronics MU Series Part Number MU1K00020K00BA Online
Discover the advanced performance of the Alpha Electronics Precision SMT Resistor. Designed for high-reliability applications, its molded ceramic body and J-Lead terminals ensure excellent stability, thermal resistance, and durability. Ideal for amplifiers, feedback circuits, and precision electronics, this resistor maintains tight tolerance and stable operation even under thermal shock, moisture, and mechanical stress. Purchase online today to ensure your projects benefit from top quality, RoHS compliance, and industry-leading manufacturing standards for superior electronic performance.
Buy Alpha Electronics MU1K00020K00BA now and experience unmatched reliability and high-precision performance with this molded SMT resistor.
