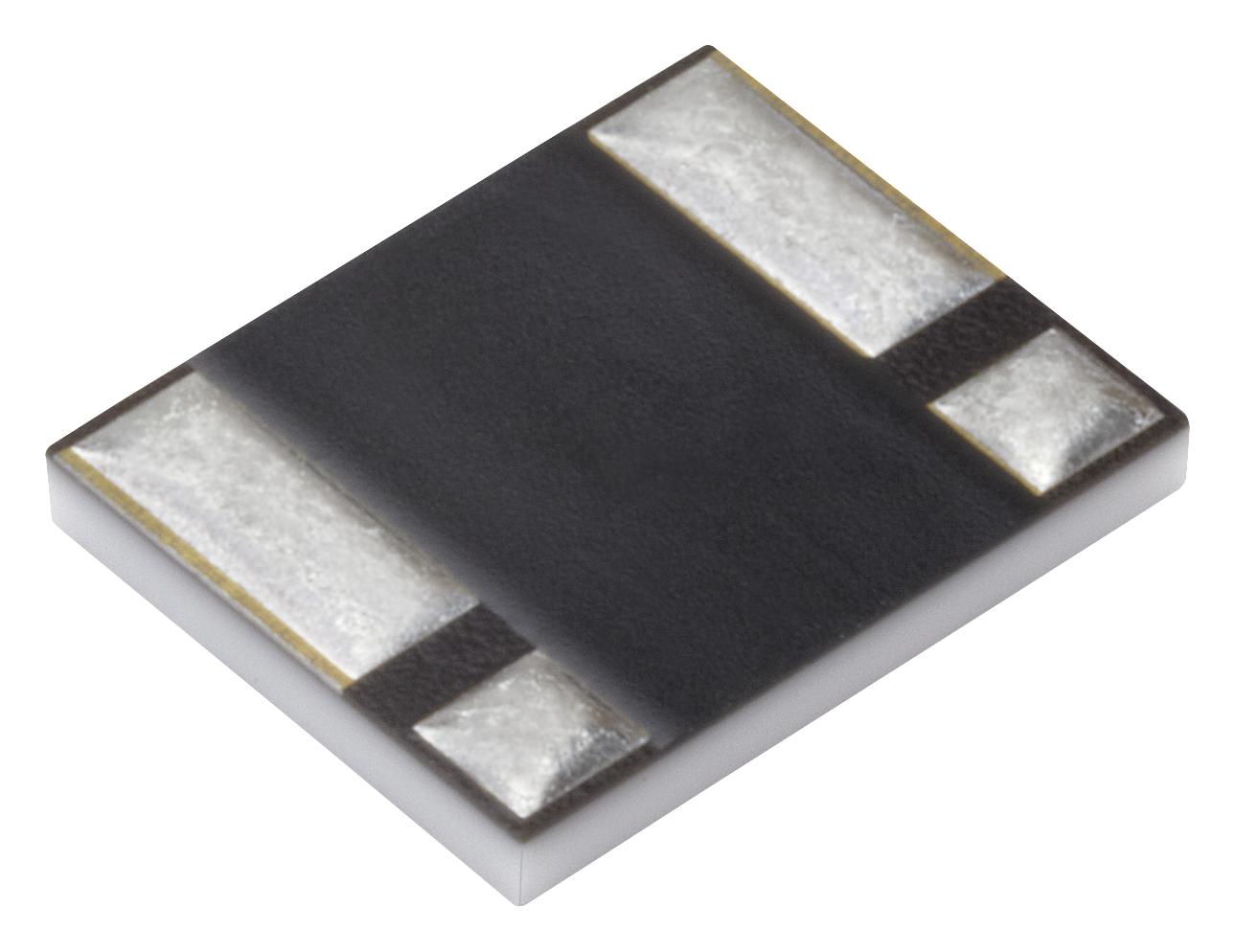

ALPHA ELECTRONICS RBHCR0500DL Current Sense Resistor
The RBH series ultra-precision SMT current sense resistors are high-reliability flip-chip components designed for accurate current measurement in industrial electronic circuits. Featuring ceramic substrates with high purity alumina, these resistors offer low resistance values from 0.01 to 0.1 ohms, with TCR ratings of ±42 ppm/°C. They endure thermal shocks, high-temperature exposure, and soldering heat, making them suitable for demanding applications. Their compact dimensions and robust construction ensure stable performance under various environmental conditions, ideal for power sensing, measurement, and control systems in industrial environments.
ALPHA ELECTRONICS RBHCR0500DL Current Sense Resistor Specifications:
- Ceramic substrate made of high-purity alumina
- Resistance range: 0.01 to 0.1 ohms
- Resistance Tolerance: ±0.5%, ±1%, ±2% (depending on model)
- TCR: ±42 ppm/°C
- Rated Power: 1 to 2 W depending on model
- Temperature Range: -65°C to 155°C
- Maximum Operating Temperature: 70°C
- Mechanical Dimensions: Length varies from 3.4 mm to 6.3 mm, width from 1.75 mm to 2.0 mm
- Mounting: Surface-mount flip-chip package suitable for automatic assembly
- Power derating applies above 70°C, advised to keep surface temperature below 90°C
- Environmental Resistance: Thermal shock, moisture resistance, dielectric strength, and high-temperature endurance tested
- Application: Current sensing, power measurement, and control in industrial and electronic power circuits
Buy the Alpha Electronics RBH Series – Reliable Current Sense Resistors for Industrial Applications
Enhance your electrical designs with Alpha Electronics RBH Series Current Sense Resistors. Crafted with high-purity ceramic substrates and offering low resistance from 0.01 to 0.1 ohms, they deliver outstanding stability and accuracy. Their compact flip-chip packages ensure easy integration into automated production lines. These resistors withstand thermal shocks, high temperatures, and soldering heat, ensuring long-term reliability in demanding industrial environments. Perfect for power measurement, current sensing, and control applications, the RBH series provides consistent performance in compact formats.
Order your Alpha Electronics RBH Series current sensing resistors today and equip your industrial projects with dependable, high-precision current measurement components.
