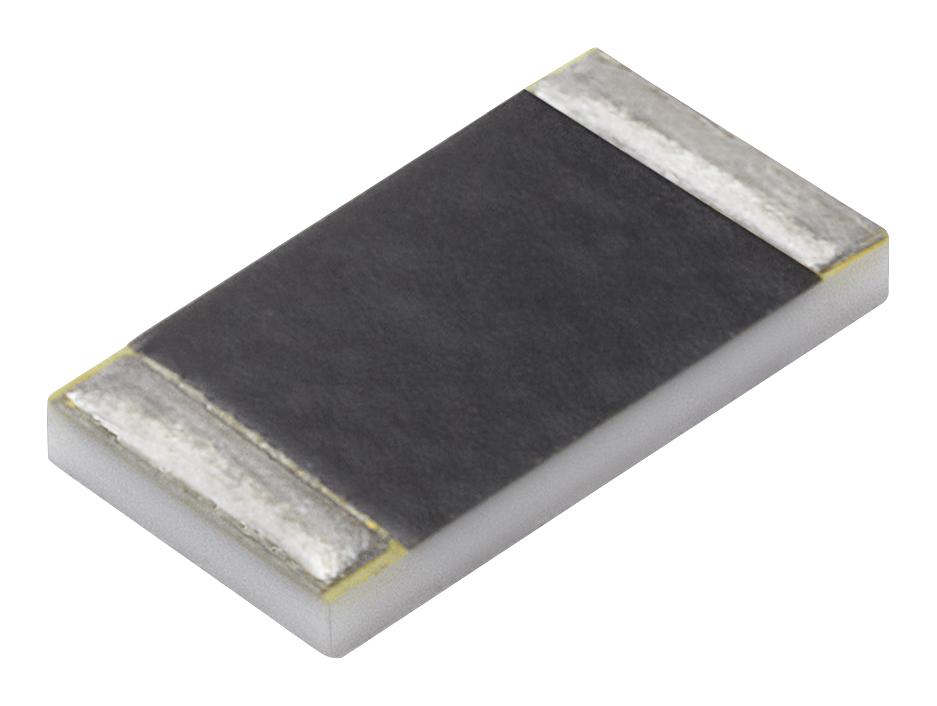

ALPHA ELECTRONICS RBFJR0500FL Current Sense Resistor
The RBF JR0500FL is an ultra-precision surface-mount resistor designed for high accuracy current sensing applications. Constructed with a high-purity ceramic substrate and precise metal foil, it offers excellent stability, a wide operating temperature range of -65°C to +155°C, and low TCR values, ensuring reliable performance in demanding conditions. Suitable for use in power management, measurement, and control circuits, this resistor features RoHS compliance and is packaged in tape and reel format for efficient automation manufacturing. Its robust design ensures long-lasting durability in electronic systems requiring precise current measurement.
ALPHA ELECTRONICS RBFJR0500FL Current Sense Resistor Specifications:
- Construction: Ceramic substrate with high purity alumina
- Temperature Range: -65°C to +155°C
- TCR: As specified per series, typically low ppm/°C
- Resistance Range: 0.01 to 0.1Ω, based on series
- Rated Power: Typically 0.5 W depending on the model
- Dimensions: Length approximately 3.4 mm to 6.3 mm, Width 0.75 mm to 1.75 mm, Height 0.2 mm to 0.3 mm
- Dielectric Withstanding Voltage: AC 200V for 1 min
- Insulation Resistance: Over 10,000 MΩ at DC 100V
- Operating Temperature: -65°C to +155°C
- RoHS Compliance: Yes
- Package: Tape and reel with capacity up to 4000 pieces per reel
- Soldering: Reflow recommended at peak temperature 250°C ±5°C for max 10 sec
- Vibration & Shock Resistance: Meets industrial standards
Buy the Buy Alpha Electronics RBF Part Number RBFJR0500FL Online
Purchase the Alpha Electronics current sense resistor RBFJR0500FL online today. Specifically designed for high precision and reliability, it offers excellent stability across wide temperature ranges. The resistor's ceramic substrate and metal foil construction ensure minimal drift, making it perfect for power supply, measurement, and control applications. With RoHS compliance and tape and reel packaging, it supports automated assembly processes. Invest in this durable, high-performance resistor to enhance your electronic system's accuracy and longevity, available now for fast, secure online ordering.
Get Alpha Electronics RBFJR0500FL today—built for high accuracy current sensing in power management and measurement applications.
Frequently Asked Questions
Where can I buy ALPHA ELECTRONICS RBFJR0500FL?
You can click on the BUY or RFQ button to purchase RBFJR0500FL from an authorized ALPHA ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part RBFJR0500FL?
You can download the RBFJR0500FL datasheet or visit the ALPHA ELECTRONICS website for support.
Who is the manufacturer of RBFJR0500FL?
ALPHA ELECTRONICS
