Advantech Automation BB232OPDR RS-232 Isolator
The RS-232 2kV Isolated Repeater is a DIN rail-mounted device designed to extend RS-232 signals up to 15.2 meters (50 feet) while providing 2,000V optical isolation. It protects connected equipment from ground loops, lightning surges, and electrical noise, ensuring reliable data transmission in industrial environments. The repeater features terminal block connections, four LED indicators for data flow and power, and operates efficiently from 10 to 30 VDC at 12W. Ideal for industrial automation, it supports multiple data and control signals in both directions under harsh conditions.
Advantech Automation BB232OPDR RS-232 Isolator Specifications:
- Connector: Terminal Block
- Signals: 4 signal lines in each direction, protected ground on isolated side
- Method: Optical isolation
- Rating: 2,000 V
- Voltage: 10 to 30 VDC
- Power Consumption: 12W
- Source: External power supply
- Wire Size: 24 to 14 AWG
- Torque: 4 kgf-cm
- LED Indicators: Data flow LEDs on each side, Power LED (Red) ON when powered
- Material: Plastic
- IP Rating: 30
- Dimensions: 2.5 x 7.9 x 9.5 cm (1.0 x 3.1 x 3.7 in)
- Operating Temperature: -40 to 80°C (-40 to 176°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Operating Humidity: 0 to 95% Non-condensing
- MTBF: 244689 hours
- Certifications: CE, FCC, NEMA TS2, cULus Recognized
- Mounting: 35 mm DIN rail (panel mount adapter available)

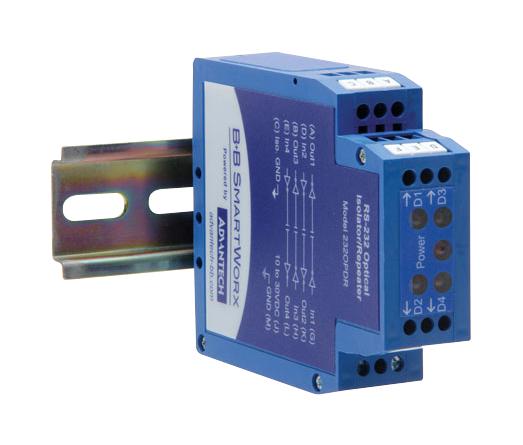

Buy the Buy BB SMARTWORX RS-232 2kV Isolated Repeater Part Number BB232OPDR Online
Enhance your industrial communication setup with this RS-232 isolator and repeater. Designed for DIN rail mounting, it offers 2,000V isolation, extending data signals up to 50 feet. Its robust construction includes terminal block connections, LED indicators for data flow and power, and operates efficiently in harsh environments with temperatures from -40°C to 80°C. Suitable for automation, this device safeguards equipment from electrical surges, ground loops, and noise, ensuring seamless, reliable data transfer in demanding industrial applications.
Buy BB SMARTWORX BB232OPDR now and experience unmatched industrial-grade RS-232 signal extension, ground loop protection, and reliable data transmission.
