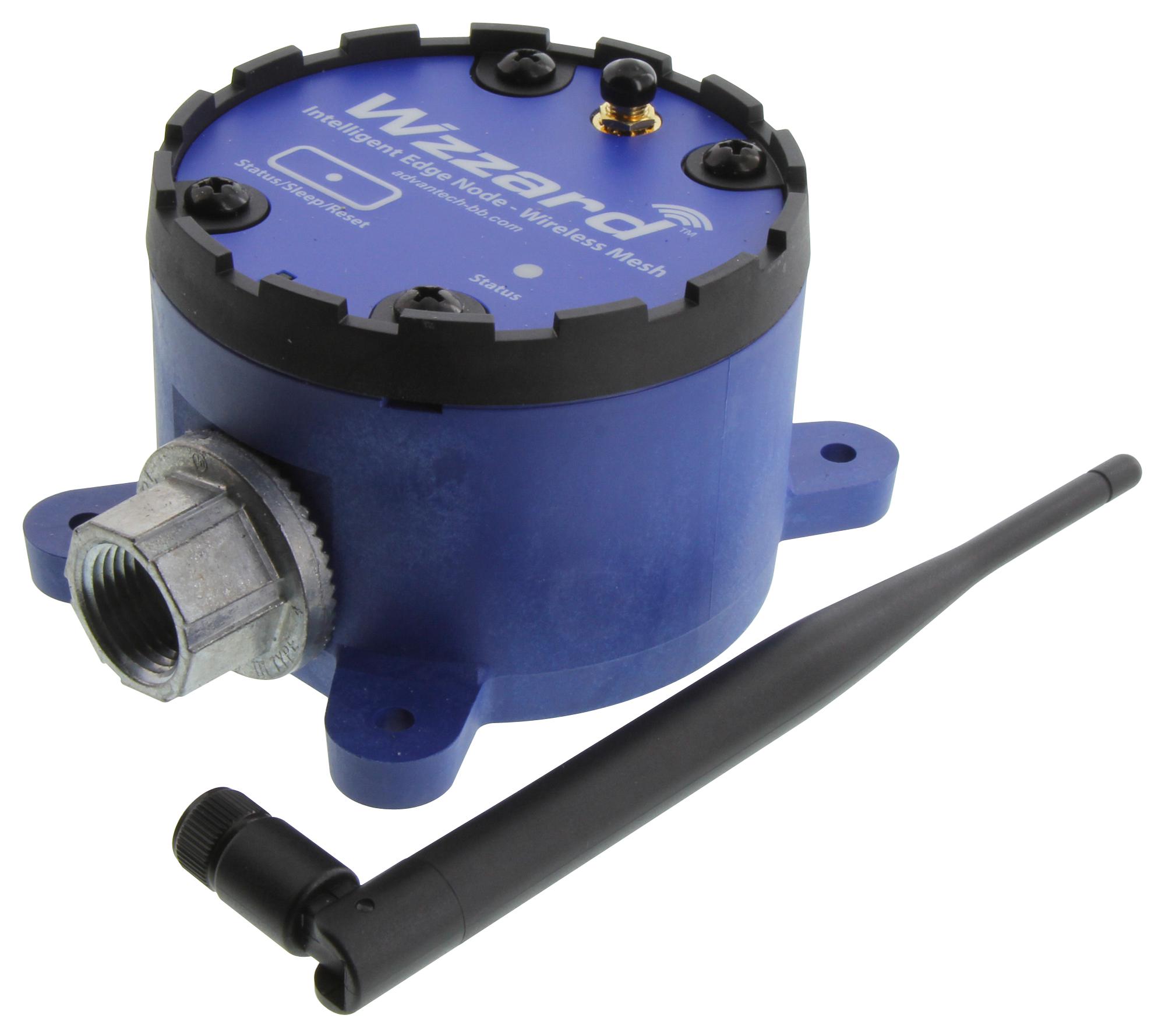

Advantech Automation BBWSD2C21150 Wireless Industrial Sensor
The Wzzard Mesh Wireless Sensors from the BB-WSD2x series provide industrial wireless connectivity with ultra-low power SmartMesh IP technology. They feature rugged IP67 enclosures suitable for indoor or outdoor environments. Each sensor includes temperature, digital, analog, and thermocouple interfaces, allowing versatile data collection. The wireless mesh network ensures reliable communication in RF-demanding settings with up to 99.999% uptime. These scalable sensors support MQTT and JSON protocols, integrate with gateways, and operate for over five years on lithium batteries, making them ideal for demanding industrial applications.
Advantech Automation BBWSD2C21150 Wireless Industrial Sensor Specifications:
- Batteries: (2) 3.6V 2400 mAH Lithium Thionyl Chloride AA, Life >5 years
- Power Supply: Switched Vbat Battery Power, 40-30 VDC @ 40mA peak, Vref 3.3V (+/- 0.1%)
- Housing: IP67 rated, fiber reinforced polyester PBT, dimensions approximately 194 mm x inches
- Connectivity: Wireless 802.15.4e, SmartMesh IP, 2.400-2.4835 GHz, 15 channels, 5 MHz separation, 250 kbps data rate
- Range: Indoor up to 100 m, outdoor up to 300 m, Antenna: Omnidirectional, 3.8 dBi included
- Interfaces: Analog Input 0-10 VDC, 0-20 mA, 4-20 mA; Digital Input 0-48 VDC; Digital Output up to 100mA @30VDC
- Sensor Types: Thermocouples (J, K, N, R, S, T, B, E), Thermistor 10K NTC, internal temperature, Vref and Vbat measurement
- Operating Temp: -40°C to +80°C, Storage: -40°C to +85°C, Humidity: 0-95% non-condensing
- Security: 128-bit AES encryption, message integrity, synchronized key changeovers
- Dimensions: Approximately 194 mm length, weight around 0.34 kg
- Certifications: UL, CE, FCC, IC, RoHS, WEEE, EN 61010-1
Buy the Advantech Series BB-WSD2x Wireless Sensor: BBWSD2C21150
Discover the Advantech BBWSD2C21150 wireless industrial sensor, engineered with SmartMesh IP technology for reliable, scalable connectivity. Its rugged IP67 enclosure ensures durability for indoor and outdoor applications. Equipped with versatile sensor interfaces including analog, digital, and thermocouple inputs, it provides accurate data collection. The long battery life exceeds five years, reducing maintenance needs. Easily configurable via gateway, it supports MQTT and JSON protocols for seamless IoT integration. This sensor enhances industrial automation and process monitoring with secure, reliable wireless connectivity, making it a smart choice for demanding environments.
Get Advantech BBWSD2C21150 wireless sensor today—built for precision and long-lasting durability in industrial environments.
