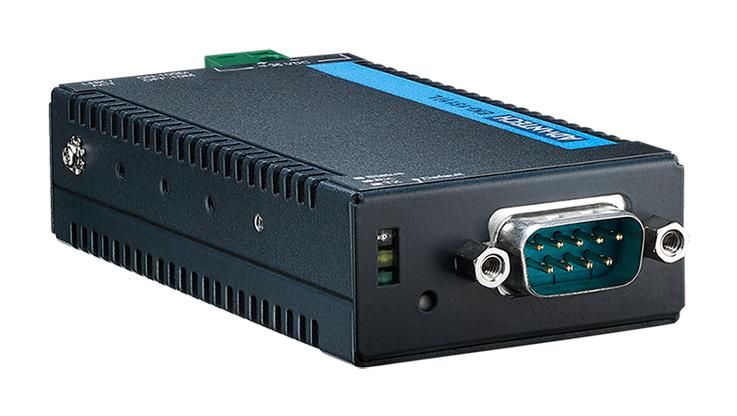

Advantech Automation EKI1511ILA Serial Device Server
The EKI-1511 series offers cost-effective serial device servers designed to connect RS-232 and RS-422/485 serial devices such as PLCs, sensors, meters, and barcode readers to Ethernet LANs. Features include 10/100 Mbps Ethernet, virtual COM port, TCP/UDP support, and up to 230.4 Kbps baud rate. With built-in 8 kV ESD protection, flexible configuration options (Windows utility, Telnet, web browser), and support for multiple OS including Windows and Linux. The compact enclosure supports DIN-rail and wall mounting, operates from -10°C to 60°C I model extends to -40°C, ideal for industrial environments, ensuring reliable serial-to-Ethernet connectivity with advanced network capabilities.
Advantech Automation EKI1511ILA Serial Device Server Specifications:
- Ethernet Speed: 10/100 Mbps
- Ethernet Port: 1x RJ45, magnetic isolation 2.25 kV
- Serial Ports: RS-232 or RS-422/485, DB9 connector
- Serial Data Bits: 5,6,7,8; Stop Bits: 1, 1.5, 2; Parity: None, Odd, Even, Space, Mark
- Baud Rate: 300 bps to 230.4 Kbps
- Flow Control: XON/XOFF, RTS/CTS
- Serial Signals: TxD, RxD, CTS, RTS, GND (RS-232), Data+/Data-, GND (RS-422/485)
- Protection: 8 kV ESD for signals
- Dimensions: 46 x 85.1 x 21.2 mm (1.81
- 30.3
- 18
- 13.4
- 23.5
- 0.8
- 2
- 0
- 0
- 0
- 0
- 0
- 0
- 0
- 0
- 0
- 0
Buy the Industrial Equipment Series RS-422/485 Serial Device Server: EKI1511ILA
Enhance your industrial communication setup with this reliable serial device server designed for connecting RS-232 and RS-422/485 devices to Ethernet networks. Featuring 10/100 Mbps Ethernet, virtual COM port, TCP/UDP support, and broad OS compatibility, it provides robust 8 kV ESD protection and flexible configuration options like Windows utility, Telnet, and web browser. Compact and durable, the enclosure supports DIN-rail and wall mounting, operates across a wide temperature range, and ensures seamless serial-to-Ethernet connectivity to meet demanding industrial environments effectively.
Order your Industrial Equipment Series RS-422/485 Serial Device Server today and give your projects the dependable Ethernet serial communication they deserve.
Frequently Asked Questions
Where can I buy Advantech Automation EKI1511ILA?
You can click on the BUY or RFQ button to purchase EKI1511ILA from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part EKI1511ILA?
You can download the EKI1511ILA datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of EKI1511ILA?
Advantech Automation
