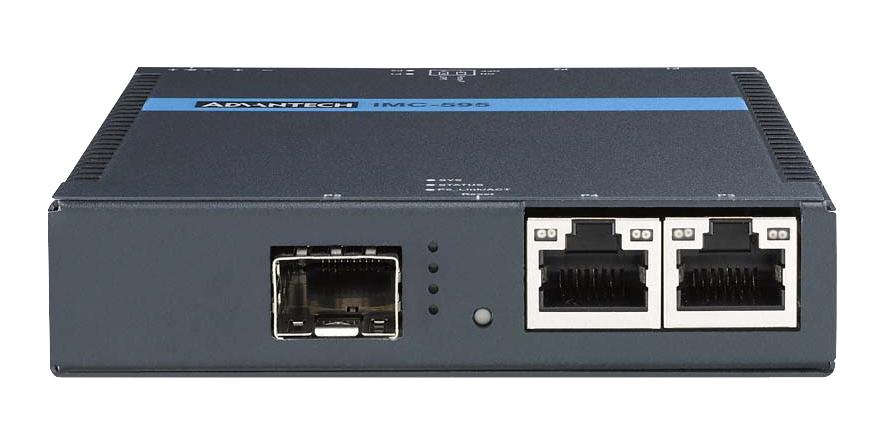

Advantech Automation IMC595MPIA Industrial PoE Media Converter
The IMC-595MPI is a versatile industrial-grade utility offering fiber-to-Ethernet conversion, PoE injection up to 180W, and managed Ethernet switching. Designed for harsh environments, it supports SNMP and iView remote management, Link Fault Pass Through, and Force-Power modes for flexible network deployment. Its compact metal enclosure enables wall or DIN-rail mounting, making it suitable for industrial networking applications requiring high power PoE, fiber connectivity, and remote configuration. The device ensures reliable operation from -40°C to 85°C, with comprehensive EMI and shock certifications, supporting robust industrial operations.
Advantech Automation IMC595MPIA Industrial PoE Media Converter Specifications:
- Physical Dimensions: 92.58 x 98.04 x 21.08 mm (3.65 x 3.86 x 0.83 in)
- Enclosure: Metal shell, wall or DIN-rail mountable
- Interfaces: 4x RJ-45 (2 PoE), 1x SFP fiber port
- PoE Power Output: Up to 180W with DC power supply
- Connectors: 2P pluggable terminal block, DC jack
- Power Consumption: 182W for model IMC-595MPI-A, 122W for IMC-595MPI-PS-A
- Power Input: 55-57V DC, reverse polarity protected
- Operating Temperature: -40°C to 85°C for IMC-595MPI-A, -10°C to 40°C for PS models
- Operating Humidity: 10-95% non-condensing
- MTBF: 699,158 hours for IMC-595MPI-A, 244,570 hours for PS-A
- Certifications: CE, FCC Class A, EN 61000-4 series, IEC shock, fall, vibration testing
Buy the Advantech IMC-595MPI – Reliable Industrial PoE Media Converter for Industrial Applications
Discover the advanced industrial PoE media converter, designed for harsh environments with rugged metal housing, flexible mounting options, and remote management via SNMP. It offers high power PoE output up to 180W, supporting fiber-to-Ethernet conversion and managed Ethernet features like Link Fault Pass Through and Force-Power modes. Ideal for industrial deployments requiring reliable fiber connectivity, high power delivery, and remote configuration. Purchase online now and ensure your industrial network’s robustness and flexibility with this versatile, compact device.
Get Advantech IMC-595MPI today—built for high power PoE, fiber conversion, and industrial networking durability.
