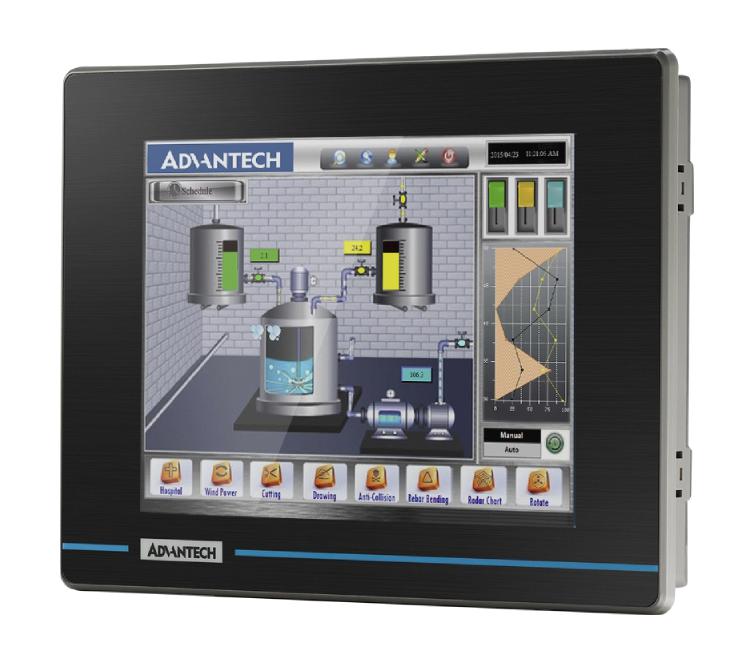

Advantech Automation WOP208KNAE Operator Panel
This 8-inch WQVGA operator panel is equipped with HMINavi software and features an ARM9 32-bit RISC processor with 64MB SDRAM. It supports over 500 industrial communication protocols and has a 128KB backup memory for critical data retention. The panel is compatible with the HMINavi designer development tool, available free on Windows 10, and allows data downloads via serial, Ethernet, or USB ports. With no limitation on internal I/O points, it offers flexible application use. Its panel mount design facilitates easy installation, and the front panel is IP66 rated for durability and protection.
Advantech Automation WOP208KNAE Operator Panel Specifications:
- Display Size: 8 inches
- Display Type: WQVGA TFT LCD
- Resolution: 800 x 600
- Protection Rating: IP66 front panel
- Processor: ARM9 32-bit RISC
- Working Memory: 64 MB SDRAM
- Backup Memory: 128 KB
- Storage: 128 MB NAND Flash
- Operating System: HMI RTOS, HMINavi Designer
- Backlight Life: LED, 20,000 hours
- Touchscreen: 4-wire analog resistive
- Power Supply Voltage: 24V AC ±10%
- Power Consumption: 20W
- Dimensions (W x H x D): 233 x 176 x 43.3mm
- Cut-out Dimensions: 221 x 164mm
- Operating Temperature: -10°C to 60°C
- Ingress Protection: IP66
- Vibration Resistance: 5-500Hz (1Grms)
- Weight: Approx. 1 kg
Buy the Advantech Series WOP-200K Operator Panel: WOP208KNAE
Purchase the Advantech Operator Panel now and enhance your automation system with a durable, high-performance device featuring IP66-rated front protection, versatile communication protocols, and easy installation. This 8-inch panel equipped with HMINavi software and ARM9 processor is perfect for demanding industrial environments. With support for over 500 protocols, flexible input/output options, and quick application switching, it's ideal for manufacturing, packaging, and F&B operations. Get yours online today for reliable, efficient process control and visualization.
Buy Advantech WOP208KNAE now and experience unmatched reliability and performance with durable IP66-rated environmental protection and flexible communication options.
