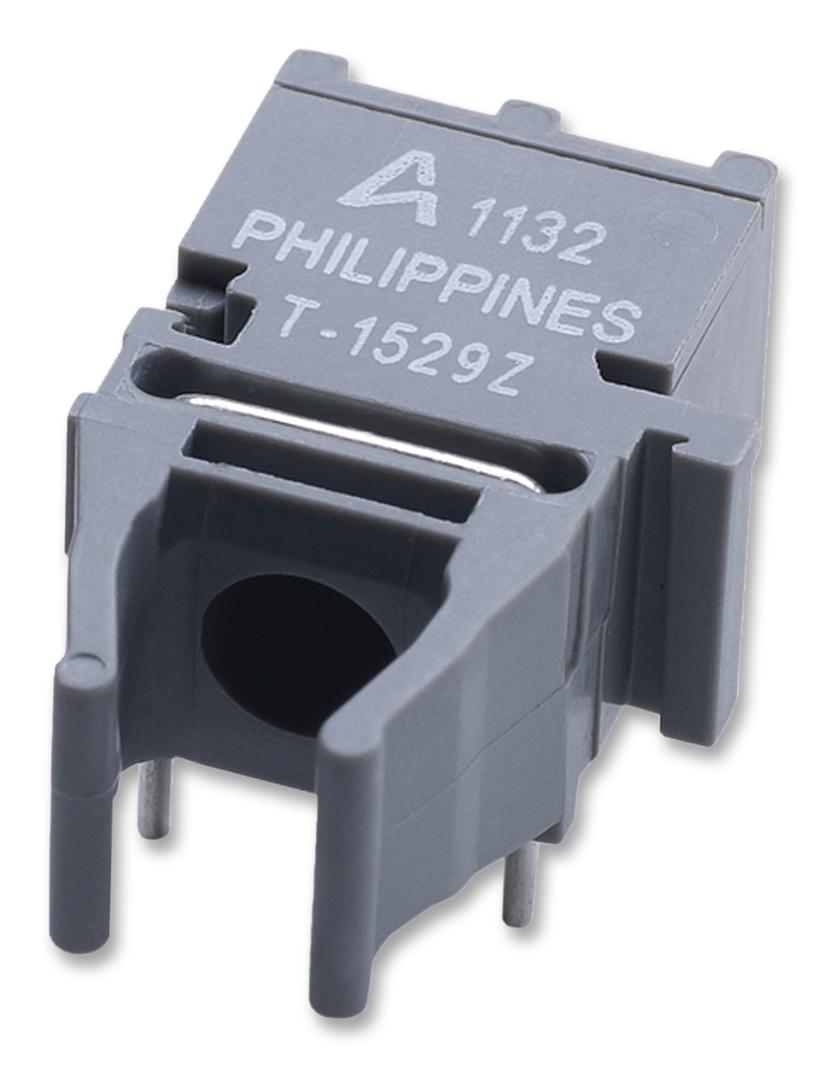

BROADCOM AFBR1529Z Fiber Optic Transmitter
The AFBR-15x9Z analog transmitter from Broadcom uses a 650 nm LED source in a housing designed for efficient coupling into 1 mm Polymer Optical Fiber or 200 μm Plastic-Clad Silica. Suitable for industrial control, factory automation, serial bus extension, and high-voltage isolation, it supports links up to 50 meters with POF and 200 meters with PCS, operating from DC to 10 MBd within -40°C to +85°C. Compatible with Broadcom’s Versatile Link connectors, it offers reliable data transmission with RoHS compliance and robust physical packaging.
BROADCOM AFBR1529Z Fiber Optic Transmitter Specifications:
- Operating temperature: -40°C to +85°C
- Wavelength: 630-685 nm
- Peak output power: -6 to 2 dBm (1 mm POF at 30 mA)
- Power supply voltage: Forward voltage 1.4-2.3 V
- Drive current: 3-45 mA
- Link distance: 50 m with POF, 200 m with PCS
- Peak emission wavelength: 650 nm
- Spectral width: 20 nm
- Diode capacitance: 30-70 pF
- Reverse voltage: 9-20 V
- Electrical and optical characteristics robustly tested for industrial environments
- Package: Flame-retardant housing, stackable, color-coded for easy connections
- Meets industry standards: RoHS compliant, IEC 60825-1,2 Class 1 safety
- Supports versatile mounting options with optional vertical or horizontal packaging
Buy the Broadcom AFBR-15x9Z – Reliable Fiber Optic Transmitter for Industrial Applications
Purchase the Broadcom AFBR-15x9Z fiber optic transmitter online now to ensure reliable, high-speed data transmission in industrial automation, factory control, and communication systems. Designed for easy integration with Versatile Link connectors, it supports up to 50 meters with Polymer Optical Fiber and 200 meters with Plastic-Clad Silica, operating efficiently between -40°C to +85°C. Its compact, flame-retardant package ensures durability and safety for diverse industrial environments. Get your advanced fiber optic solution today for seamless connectivity and high-performance networking.
Order your Broadcom AFBR-15x9Z fiber optic transmitter today and enhance your industrial communication projects with dependable data transmission and robust physical design.
