BROADCOM ARE18F3000000 Infrared LED

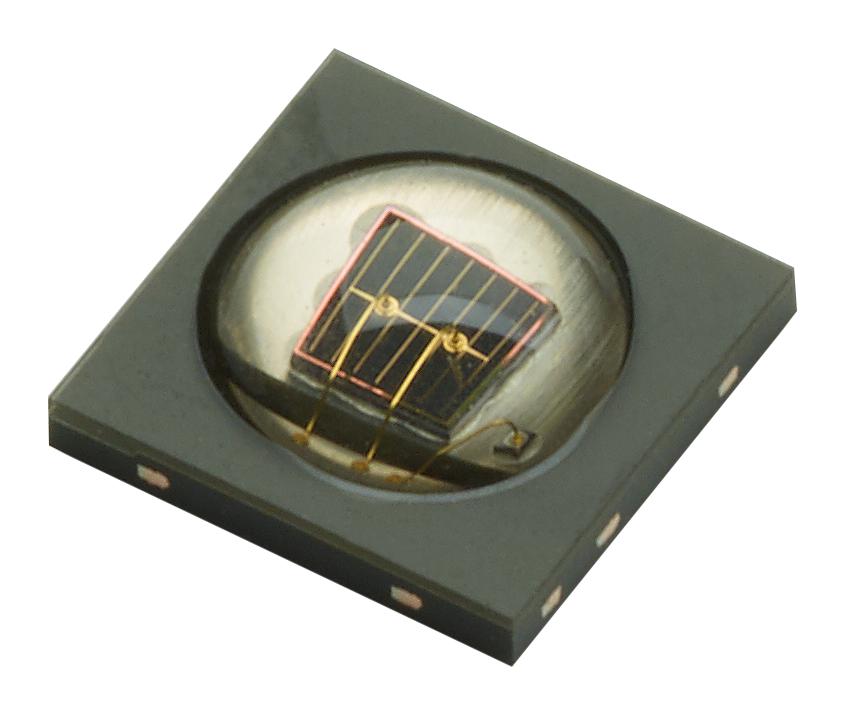

The high-power infrared LEDs are available in 850 nm and 940 nm wavelengths, suitable for infrared illumination, surveillance, and gesture recognition. Packaged in a compact 3.85 mm x 3.85 mm surface-mount format, with 90° and 150° viewing angles options. Designed for reflow soldering, these LEDs feature high radiant intensity and power, low forward voltage, and are ideal for CCTV, security systems, and infrared lighting applications. They comply with industrial standards and offer reliable performance in various environmental conditions.
BROADCOM ARE18F3000000 Infrared LED Specifications:
- Peak Wavelength: 850 nm or 940 nm
- Viewing Angles: 90° or 150°
- Power Dissipation: 2500 to 3600 mW
- Peak Forward Current: 3000 mA
- Forward Voltage: 1.8 V to 3.6 V depending on model
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Junction Temperature: up to 145°C
- Package Size: 3.85 mm x 3.85 mm surface-mount
- Compatible with reflow soldering, MSL 3 rating
Buy the Broadcom ARE1-xxx0– Reliable Infrared LED for Industrial Applications
Purchase the Broadcom infrared high-power LED today for superior infrared illumination in security systems, CCTV, and gesture recognition. With options in 850 nm and 940 nm wavelengths, along with 90° and 150° viewing angles, these LEDs deliver high radiant intensity and power. Their compact surface-mount design ensures easy installation and reflow soldering compatibility. Ideal for industrial applications, they guarantee consistent performance, low forward voltage, and excellent thermal management. Secure your supply today and enhance your optical systems with reliable, high-quality LEDs.
Buy Broadcom infrared LED now and experience unmatched reliability and performance in surveillance and infrared illumination projects.
Frequently Asked Questions
Where can I buy BROADCOM ARE18F3000000?
You can click on the BUY or RFQ button to purchase ARE18F3000000 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ARE18F3000000?
You can download the ARE18F3000000 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ARE18F3000000?
BROADCOM
