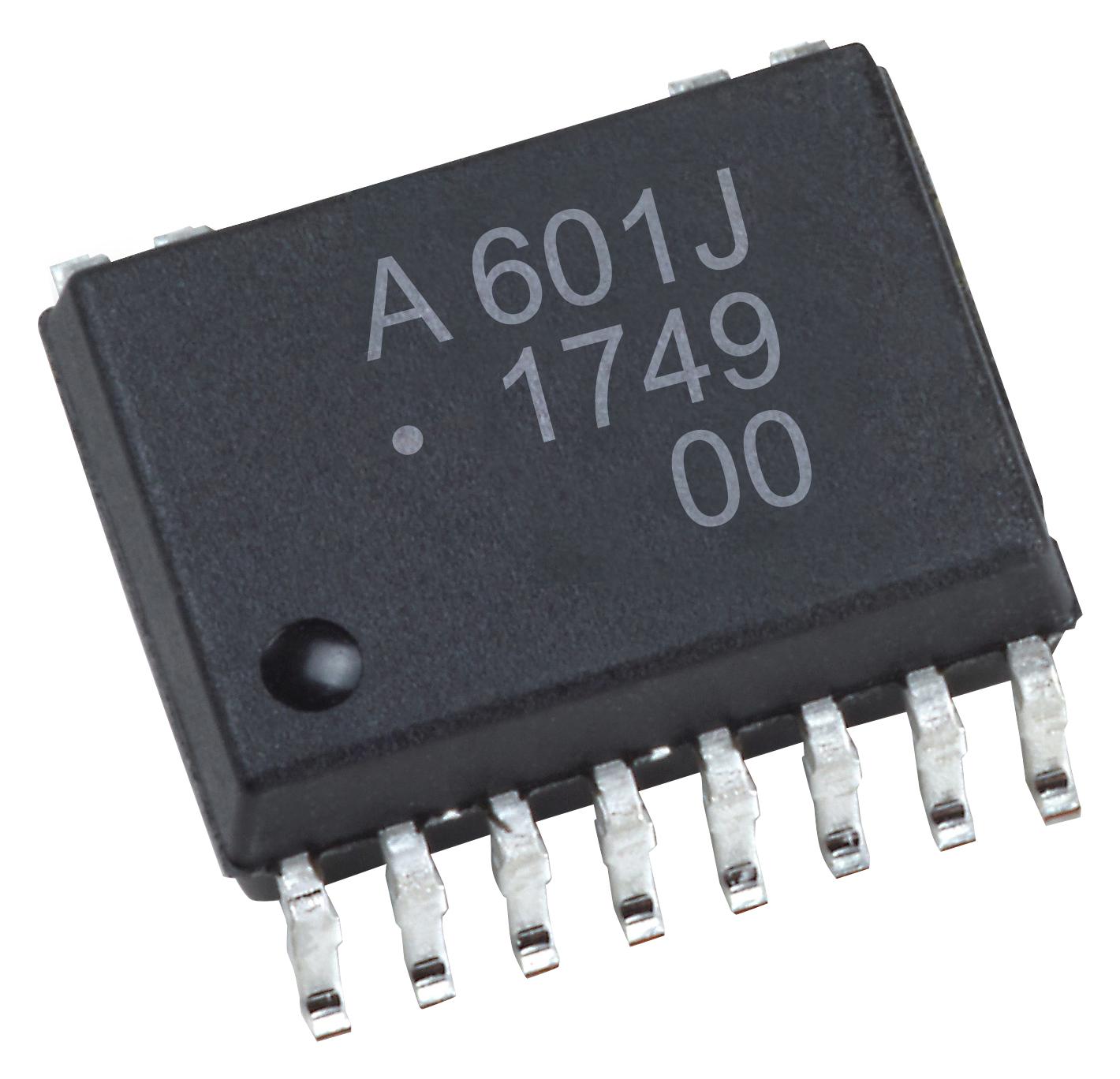

BROADCOM ASSR601J000E High Voltage Solid State Relay
The ASSR-601J is a high-voltage solid-state relay designed for industrial applications requiring reliable signal isolation. It features an AlGaAs infrared LED input, optically coupled to high-voltage photovoltaic diodes that switch high-voltage MOSFETs. With a breakdown voltage of 1500V and a maximum operating temperature of up to 110°C, it provides reinforced insulation and safety compliance with IEC/EN/DIN standards. Suitable for leakage detection, battery management systems, and electronic replacements, this compact relay ensures durability and electrical isolation in harsh environments.
BROADCOM ASSR601J000E High Voltage Solid State Relay Specifications:
- Breakdown voltage: 1500V at Ings = 250 HA
- Operating temperature: -40°C to +110°C
- Supply voltage: 4 V to 25 V
- Input current: 7 mA to 30 mA
- Output leakage current: 10 nA at 1000V
- On-resistance: less than 2500 Ω at 50 mA
- Switching time: ON < 4 ms, OFF < 0.5 ms
- Isolation creepage: 8 mm, clearance: 8 mm
- Package type: SO-16 with floating pins
- Safety certifications: IEC/EN/DIN EN 60747-5-5, UL 1577
- Maximum working insulation voltage: 1414Vpeax
- Input-output resistance: 1014 Ω, input-output capacitance: 6 pF
- Surge current capacity: 60 mA for 1 min
- Output power dissipation: up to 1000 mW
- Reflow soldering temperature: 260°C for 10 sec
Buy the Broadcom ASSR-601J – Reliable High Voltage Switch for Industrial Applications
Get the Broadcom ASSR-601J high-voltage solid-state relay now and ensure robust electrical isolation in demanding industrial settings. Featuring 1500V breakdown voltage, excellent insulation, and rapid switching times, it is ideal for leak detection, battery management, and electronic replacement in high-temperature environments. Easily integrated with microcontrollers, this compact relay offers reinforced safety approvals and reliable performance. Purchase online today for fast delivery and to optimize your electrical systems with this durable, high-voltage switching component.
Order your Broadcom ASSR-601J high-voltage solid-state relay today and enhance your industrial projects with dependable signal isolation and high-voltage switching performance.
Frequently Asked Questions
Where can I buy BROADCOM ASSR601J000E?
You can click on the BUY or RFQ button to purchase ASSR601J000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASSR601J000E?
You can download the ASSR601J000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASSR601J000E?
BROADCOM
