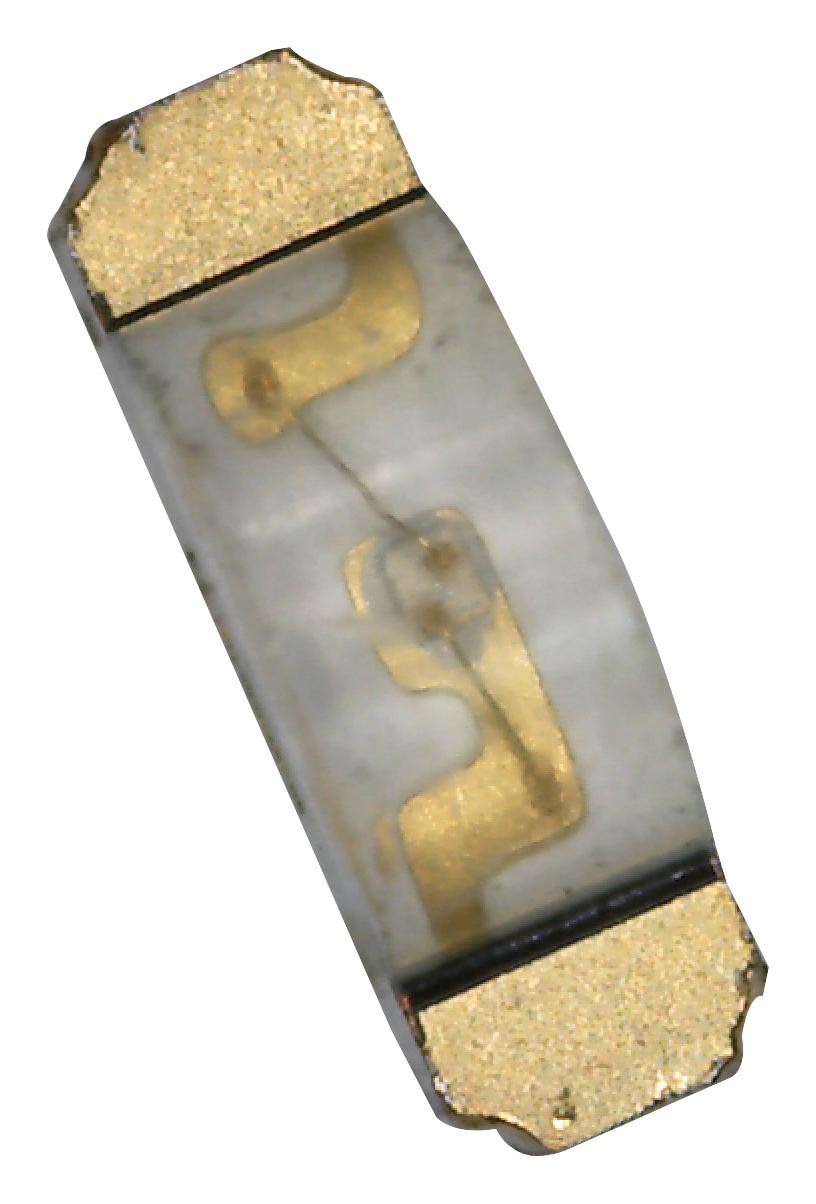

BROADCOM HSMRC170 Miniature LED Chips
These high-brightness, small-size LED chips utilize efficient InGaN technology, offering vibrant blue and green colors at 470 nm and 520 nm. Suitable for LCD backlighting, push button illumination, and indicator displays, these LEDs come in top, side, and reverse mount packages with diffused optics. Compatible with IR soldering, vertically or right-angle emitting, and supplied in tape and reel formats, they ensure easy handling and reliable performance across various industrial lighting applications. Operating up to +85°C with low power dissipation enhances durability and system stability.
BROADCOM HSMRC170 Miniature LED Chips Specifications:
- Color: Blue (469-473 nm), Green (520 nm)
- Package Types: Top emitting, side emitting, reverse mount
- Package Dimensions: Ranges from 1.6 mm x 0.8 mm x 0.35 mm to 8.0 mm x 1.25 mm x 1.1 mm
- Optics: Diffused, wide viewing angles
- Compatibility: IR reflow soldering, light piping
- Operating Temperature Range: -40°C to +85°C
- Maximum Junction Temperature: 95°C
- Power Dissipation: 78 mW
- Forward Voltage: Typical 3.4V at 20mA
- Reverse Voltage: 5V
- Luminous Intensity: Green 145-150 mcd, Blue 45-60 mcd
- Peak Wavelength: Green 520 nm, Blue 469 nm
- Viewing Angle: ~130-155 degrees
- Packaging: Tape in reels of 3000-4000 units, moisture barrier bags
- Storage Conditions: 5°C to 30°C, 60% RH max
- ESD Sensitivity: Class 1A, JESD22-A114C
- Maximum Soldering Temperature: 230°C for reflow
Buy the High Performance Chip LED – Reliable Blue and Green for Industrial Applications
Discover Avago Technologies high-brightness miniature LED chips designed for robust industrial applications. These LEDs offer vibrant blue and green illumination, ideal for backlighting, indicators, and signage with diffused optics and reliable tape and reel packaging. Compatible with IR soldering and suitable for microdisplays and small message panels, they ensure quick installation and long-term performance. Purchase online now to enhance your industrial lighting systems with these efficient, compact, and high-quality chip LEDs built for durability and high efficiency.
Get Avago Technologies HSMR-C170 today—built for precision and long-lasting durability in industrial lighting solutions.
Frequently Asked Questions
Where can I buy BROADCOM HSMRC170?
You can click on the BUY or RFQ button to purchase HSMRC170 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMRC170?
You can download the HSMRC170 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMRC170?
BROADCOM
