BROADCOM HCPL0370000E Voltage Current Threshold Optocoupler
The HCPL-0370, HCPL-3700, and HCPL-3760 are optocouplers designed for voltage and current threshold detection in industrial and automation applications. They feature internal temperature-compensated threshold sensing with wide adjustable external resistor control, hysteresis for noise immunity, and compatibility with AC/DC signals. The HCPL-3760 offers lower input current operation using high-efficacy AlGaAs LED technology. Recognized under UL 1577, these optocouplers provide reliable isolation, and high dielectric withstand voltage, making them suitable for limit switch sensing, relay monitoring, microprocessor interfacing, and safety-critical systems.
BROADCOM HCPL0370000E Voltage Current Threshold Optocoupler Specifications:
- Input Voltage: AC/DC, 2V to 49V
- Input Current Threshold: HCPL-0370/3700 2.5 mA, HCPL-3760 1.2 mA
- Output Voltage: Voh=18V, Vol=0.4V typical
- Isolation Voltage: Max. Working Insulation Voltage 567Vpeak (HCPL-0370), 630Vpeak (HCPL-3700/3760)
- Maximum Overvoltage: 6000Vpeak
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -55°C to 125°C
- Propagation Delay: 40 ns (HCPL-0370/3700), 45 ns (HCPL-3760)
- Rise and Fall Time: 0.3 to 20 ns
- Common Mode Transient Immunity: up to 4000 V/μs
- Power Dissipation: Input 172–230 mW, Output 210–275 mW
- Package Options: DIP-8, Surface Mount Gull Wing in Tape & Reel
- Approvals: UL Recognized, CSA Certification
- Lead Soldering Temperature: 260°C for 10 seconds

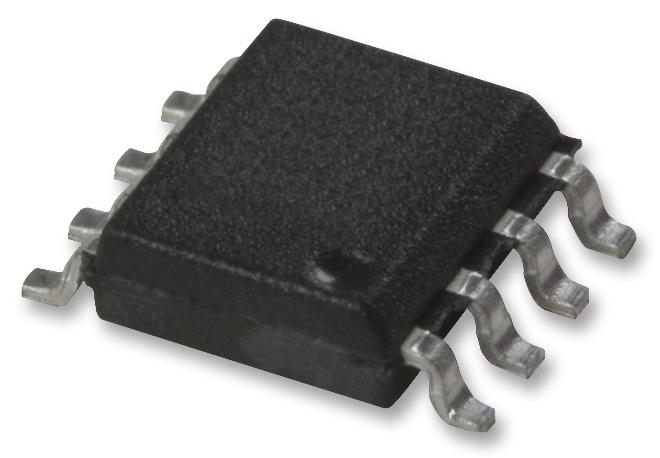

Buy the Buy Avago HCPL-0370 Part Number HCPL0370000E Online
Purchase the versatile Avago HCPL-0370 optocoupler online now to enhance your industrial control systems. Featuring adjustable threshold detection, noise immunity, high dielectric insulation voltage, and UL recognition, it is ideal for limit switches, relay monitoring, and microprocessor interfacing. Available in DIP and surface-mount packages, this component guarantees reliable operation over a wide temperature range. Fast propagation delay and low power dissipation make it optimal for safety-critical and automation applications. Order today for dependable performance and quick delivery.
Order your Avago HCPL-0370 optocoupler today and ensure reliable voltage and current sensing in your industrial control system with high insulation and noise immunity.
Frequently Asked Questions
Where can I buy BROADCOM HCPL0370000E?
You can click on the BUY or RFQ button to purchase HCPL0370000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL0370000E?
You can download the HCPL0370000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL0370000E?
BROADCOM
