BROADCOM HLMP1700 Low-current indicator LED
The HLMP-1700 is a through-hole, low-current LED lamp with a T-1 (3mm) round lens shape, featuring a red color. It operates at a forward voltage of 1.7V and a forward current of 2mA, with a wavelength of 626nm and a luminous intensity of 2.1mcd at 2mA. Its high efficiency, CMOS-MOS and TTL compatibility, and wide viewing angle make it suitable for low-power DC circuits, telecommunications indicators, and keyboard indicators. Common applications include LED lighting, portable devices, and industrial uses. Due to high market demand, lead times may be extended, with fluctuating delivery dates and no discount pricing.
BROADCOM HLMP1700 Low-current indicator LED Specifications:
- Package Type: T-1 (3mm) round lens
- Color: Red
- Forward Voltage: 1.7V
- Forward Current: 2mA
- Wavelength: 626nm
- Luminous Intensity: 2.1mcd at 2mA
- Spectral Line Halfwidth: 40 nm
- Speed of Response: 90 ns
- Capacitance: 1 pF
- Thermal Resistance: 26°C/W (Junction to Cathode)
- Maximum Power Dissipation: 14 mW
- Peak Wavelength: 635 nm
- Luminous Efficacy: 145 lumens/watt
- Operating Temp Range: -40°C to 100°C
- Storage Temp Range: -40°C to 100°C

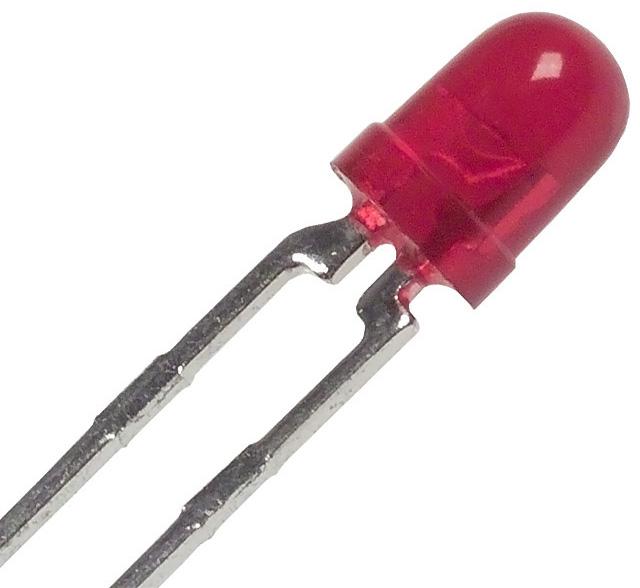

Buy the Avago HLMP-1700 Reliable Red LED for Industrial Applications
Purchase the Avago HLMP-1700 LED online today—designed for low-power indicator applications including telecommunications, instrumentation, and portable equipment. Featuring a T-1 (3mm) round lens with bright red color, it operates at a forward voltage of 1.7V and a current of 2mA, providing a luminous intensity of 2.1mcd. Its wide viewing angle and TTL compatibility make it ideal for signal and indicator functions across industrial, control, and electronic device applications. Quick delivery options ensure your project advances without delay, offering excellent reliability for a variety of low-power LED lighting needs.
Get Avago HLMP-1700 today—built for precision and long-lasting durability in indicator and lighting applications.
Frequently Asked Questions
Where can I buy BROADCOM HLMP1700?
You can click on the BUY or RFQ button to purchase HLMP1700 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP1700?
You can download the HLMP1700 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP1700?
BROADCOM
