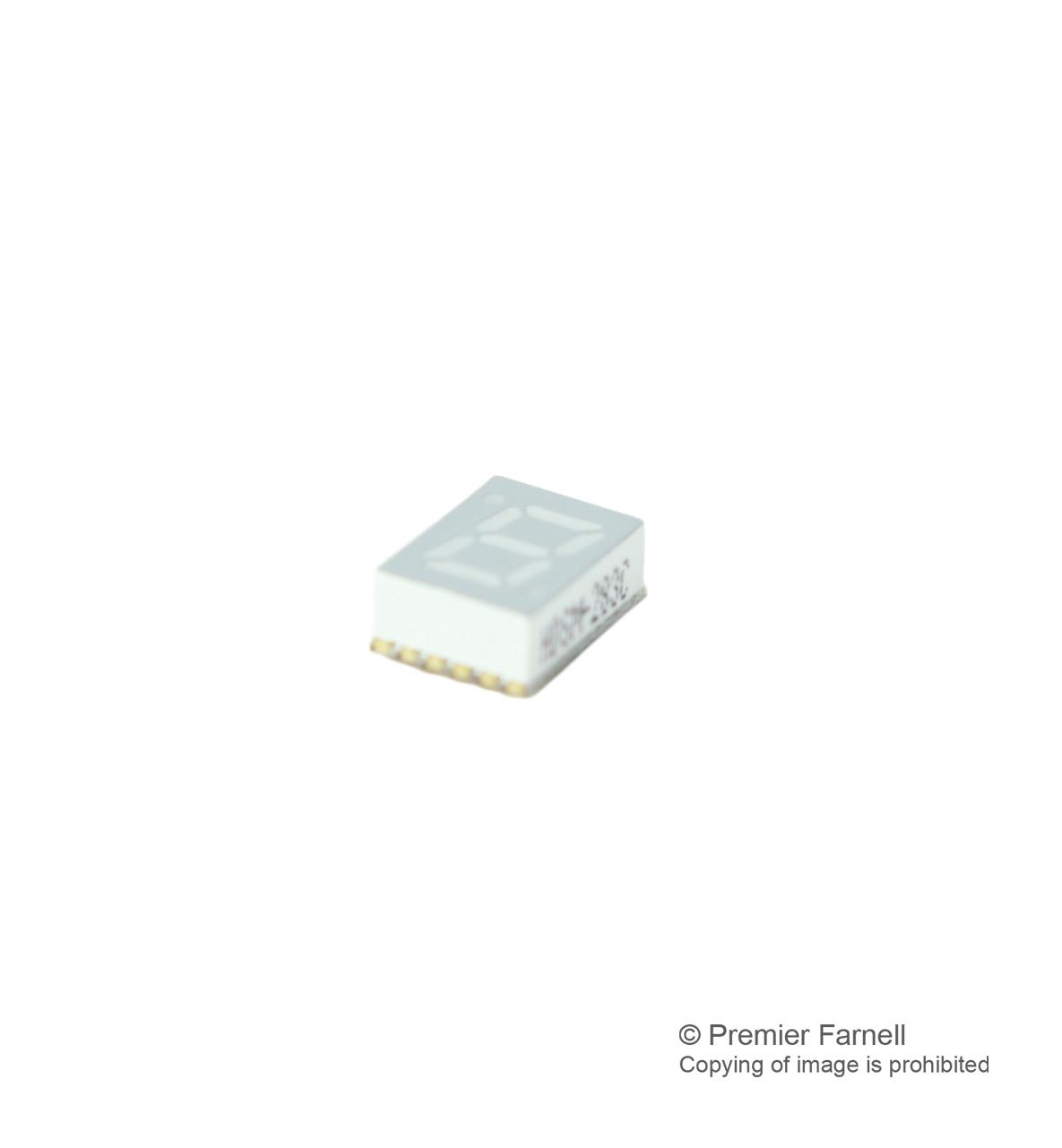

BROADCOM HDSM283C Surface Mount LED Display
The HDSM-283x is a compact, single-digit surface mount LED display measuring 0.28 inches (7.0mm) in height, featuring excellent optical clarity and low current operation. Utilizing AllnGaP / GaAs chips, it offers vibrant red, green, yellow, or orange emission with high brightness levels, making it suitable for digital meters, counters, and industrial displays. Available in common anode and cathode configurations, it has low power dissipation, robust operating temperature range, and RoHS compliance, ensuring reliable performance across various electronic applications.
BROADCOM HDSM283C Surface Mount LED Display Specifications:
- Digit height: 0.28 inches (7.0mm)
- Emissions colors: Red, Green, Yellow, Orange
- Luminous Intensity: Red 75 mcd, Green 34 mcd, Yellow 8.0 mcd, Orange 8.5 mcd
- Wavelength: Red 632/624 nm, Green 572/571 nm, Yellow 591/589 nm, Orange 611/605 nm
- Forward Voltage: 2.0 - 2.6 V (depending on color)
- Reverse Voltage: 5 V
- Maximum Power Dissipation: 65 mW per segment
- Peak Forward Current: 100 mA
- Continuous Forward Current: 25 mA
- Operating Temperature Range: -40°C to +105°C
- Storage Temperature Range: -40°C to +105°C
- Moisture Sensitivity Level: Level 3
- RoHS compliant
- Available in common anode and cathode configurations
- Pin configuration: 10 pins, dimensions approximately 10.8 x 10.0 x 7.0 mm
Buy the Buy Avago HDSM-283C Part Number HDSM283C Online
Purchase the Avago HDSM-283C surface mount LED display online today for reliable brightness and low power consumption. Perfect for digital meters, counters, and industrial instrumentation. This compact, easy-to-install display features vibrant colors including red, green, yellow, and orange, with excellent optical clarity and long-term durability. RoHS compliant and capable of operating across a temperature range of -40°C to +105°C, it ensures consistent performance in demanding environments. Simplify your electronic project with this high-quality LED display, available now for fast delivery and competitive pricing.
Buy Avago HDSM283C now and experience high-brightness display performance for industrial and digital meter applications.
Frequently Asked Questions
Where can I buy BROADCOM HDSM283C?
You can click on the BUY or RFQ button to purchase HDSM283C from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSM283C?
You can download the HDSM283C datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSM283C?
BROADCOM
