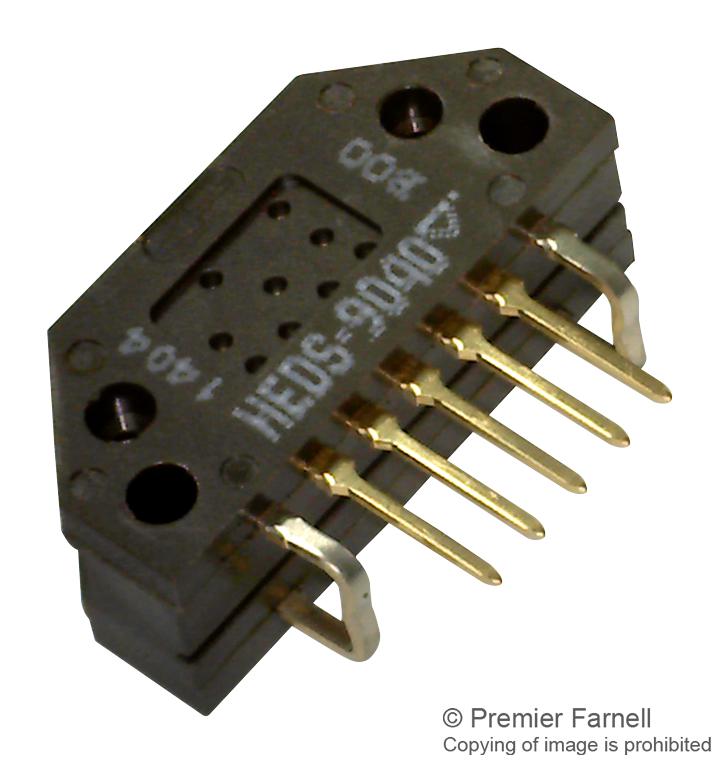

BROADCOM HEDS9040B00 Optical Encoder Module
The HEDS-9040#B00 is a 3-channel optical incremental encoder module with straight leads, designed to detect rotary position when used with a code wheel. It features a lensed LED light source and a detector IC with a specialized photodetector array, providing high performance comparable to the HEDS-9000/9100 series two-channel encoders. The module requires no signal adjustment, is easy to mount, compact, and TTL compatible, with an operating temperature range from -40°C to 100°C. It is suitable for industrial automation, control systems, printers, and rotary position sensing in various equipment applications. Please note that high market demand may affect delivery times, and the product is exempt from discounts.
BROADCOM HEDS9040B00 Optical Encoder Module Specifications:
- Power Supply: 5V DC
- Operating Temperature: -40°C to 100°C
- Resolution: Up to 2000 CPR
- Number of Channels: 3 (quadrature outputs + index pulse)
- Output Type: TTL compatible
- Mounting: Easy to install, compact size
- Detection Method: Optical with collimated LED and photodetector array
- Signal Outputs: Channels A, B, and Index
- Physical Dimensions: Small plastic package, detailed dimensions specified in datasheet
- LED Source: Lensed LED for parallel beam
- Detection IC: Integrated photodetectors and signal processing circuitry
- Codewheel Compatibility: HEDx-614X or HEDx-5x4X series
- Color and Material: Standard plastic with lens and photodetector array
- Market Notes: High demand may influence delivery times; product exempt from discounts
