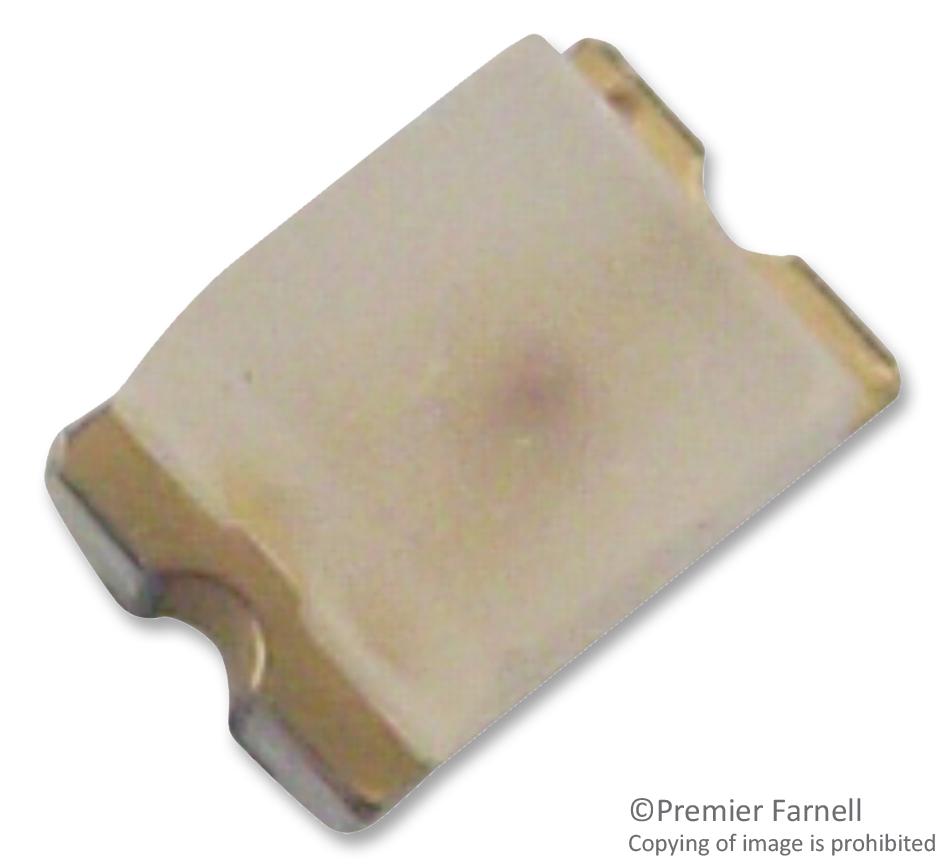

BROADCOM HSMYC150 Surface Mount Chip LED
These surface mount chip LEDs are designed for backlighting and indicators, featuring various sizes such as 1.6 x 0.8 mm and 3.2 x 1.6 mm, with diffused optics, wide viewing angles, and compatibility with IR reflow soldering. Available in multiple colors including green, yellow, orange, and red, and offered in taped reels for easy handling and placement. They operate between -40°C to +85°C, making them ideal for LCD backlighting, keypad, and front panel applications in space-constrained environments, providing reliable brightness and long-term performance.
BROADCOM HSMYC150 Surface Mount Chip LED Specifications:
- Size options: 1.6 x 0.8 mm, 3.2 x 1.6 mm, 2.0 x 1.25 mm, 3.4 x 1.25 mm
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- Power dissipation: up to 65 mW
- DC forward current: 20-30 mA depending on model
- Reverse voltage: 5 V
- LED junction temperature: 95°C
- Compatible with IR reflow soldering
- Luminous intensity: 45-2850 mcd depending on color and model
- Wavelength range: 570 nm to 660 nm
- Viewing angle: approximately 130°
- Package options: tape and reel, 3000 or 4000 units per reel
- Designed for backlighting, front panel, and indicator applications
- Diffused optics for uniform light distribution
Buy the Buy Avago Surface Mount Chip LED Part Number HSMYC150 Online
Enhance your electronic designs with Avago surface mount chip LEDs, available in various sizes and colors ideal for LCD backlighting, keypads, and indicators. These LEDs feature diffused optics, wide viewing angles, and are compatible with IR reflow soldering, ensuring easy assembly and high reliability. Packaged in tape and reel formats for efficient handling, they operate within a temperature range of -40°C to +85°C, making them perfect for space-constrained applications requiring long-lasting illumination and dependable performance.
Buy Avago HSMYC150 now and experience unmatched reliability and performance in space-saving LED solutions.
Frequently Asked Questions
Where can I buy BROADCOM HSMYC150?
You can click on the BUY or RFQ button to purchase HSMYC150 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMYC150?
You can download the HSMYC150 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMYC150?
BROADCOM
