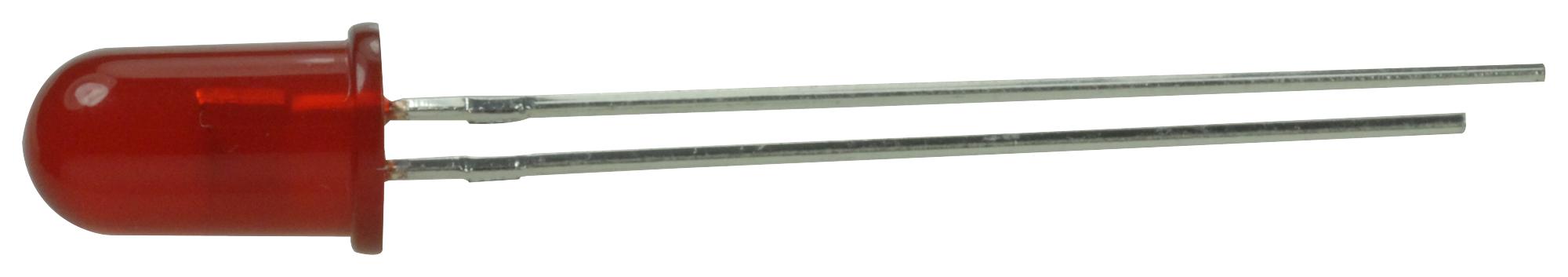

BROADCOM HLMP4700 diffused LED
The HLMP-4700 from Avago is a through-hole, tinted diffused LED designed for low DC current operation. It features a T-1 3/4 (5mm) round shape, uses GaP material, and emits red light at a wavelength of 626nm. The LED has a forward voltage of 1.7V, a forward current of 2mA, and a luminous intensity of 2.3mcd, with a viewing angle of 50°. It is compatible with CMOS, MOS, and TTL circuits. This versatile LED is widely used in DC circuits, telecommunications, keyboard indicators, LED lighting, portable devices, industrial, and consumer electronics applications.
BROADCOM HLMP4700 diffused LED Specifications:
- Shape: T-1 3/4 (5mm) round
- Material: GaP
- Color: Red
- Wavelength: 626 nm
- Forward Voltage: 1.7 V at 2 mA
- Forward Current: 2 mA
- Luminous Intensity: 2.3 mcd at 2 mA
- Viewing Angle: 50°
- Mechanical Type: Through-hole
- Operating Temperature Range: -40°C to 100°C
- Storage Temperature Range: -40°C to 100°C
- Package Dimensions: Diameter approximately 5mm, length about 6.10 mm
- Compatibility: CMOS, MOS, TTL
- Applications: DC circuits, telecommunications, indicators, portable equipment, industrial, consumer electronics
Buy the Avago HLMP-4700 – Reliable Red Diffused LED for Industrial Applications
Order the Avago HLMP-4700 diffused LED online today to ensure high quality and reliable performance for your low power electronic circuits. This versatile LED is ideal for telecommunications, indicators, portable devices, and industrial applications. With a compact T-1 3/4 shape, red color, 626nm wavelength, and optimized for low current operation, it provides consistent brightness at 2mA. Elevate your electronic designs with this high-efficiency, TTL-compatible LED—order now and benefit from quick delivery and excellent customer support.
Buy Avago HLMP-4700 now and experience unmatched reliability and performance in low current LED solutions for your electronic projects.
Frequently Asked Questions
Where can I buy BROADCOM HLMP4700?
You can click on the BUY or RFQ button to purchase HLMP4700 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP4700?
You can download the HLMP4700 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP4700?
BROADCOM
