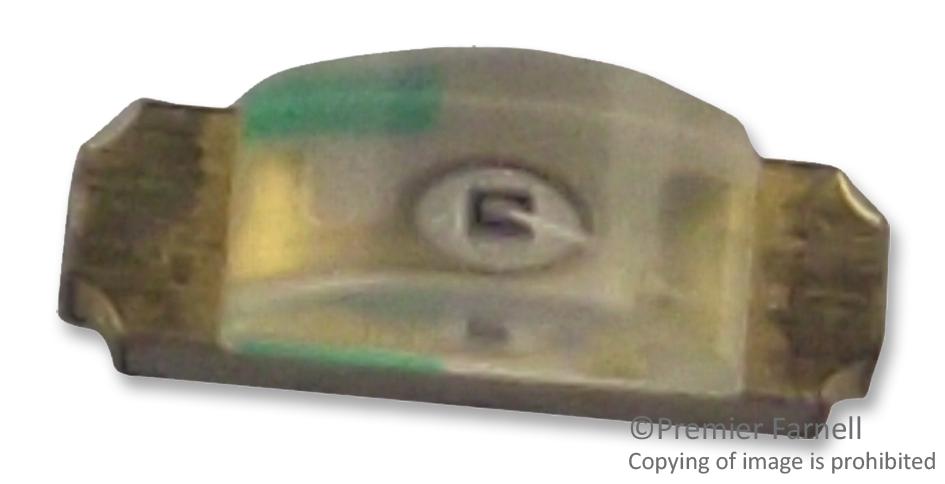

BROADCOM HSMAC110 Chip LED
These high-performance chip LEDs utilize Aluminum Indium Gallium Phosphide (AllnGaP) technology, offering high luminous efficiency and bright output across various colors. Suitable for LCD backlighting, push buttons, microdisplays, and signage, they come in surface mount packages with diffused optics and optional right-angle or top emission. Available in red, orange, and amber, these LEDs are compatible with IR soldering, shipped in tape and reel, and provide reliable performance in industrial indicator applications. They are compact, energy-efficient, and designed for easy integration into modern electronic systems.
BROADCOM HSMAC110 Chip LED Specifications:
- Forward Voltage: 19-24 V (typical 19 V)
- Reverse Voltage: 5 V
- DC Forward Current: 25 mA
- Power Dissipation: 60 mW
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Luminous Intensity: 28.5-45 mcd depending on bin
- Wavelength: Amber 592 nm, Orange 605 nm, Red 626/631 nm
- Viewing Angle: Approx. 130°-170°
- Package Types: Top emitting or right angle
- Reel Packaging: 3000 to 4000 units per reel
- Material: Aluminum Indium Gallium Phosphide (AllnGaP)
- Dimensions: As per package type, approx. 1.6 x 0.8 mm to 3.2 x 1.5 mm
- Compatible with IR reflow soldering
Buy the Avago HSMAC110 – Reliable ChipLEDs for Industrial Applications
Purchase the Avago SeriesHSMAC110 high-performance ChipLEDs online today and ensure your project benefits from reliable, energy-efficient illumination. Ideal for LCD backlighting, push buttons, microdisplays, and signage, these compact LEDs deliver high luminous efficiency and consistent performance. Designed for surface mounting with diffused optics and available in red, orange, and amber colors, they are compatible with IR soldering, shipped in tape and reel packaging for easy automation. Get the quality you need for industrial and electronic applications now.
Order your Avago SeriesHSMAC110 high-brightness ChipLEDs today and enhance your industrial lighting and indicator projects with dependable quality.
Frequently Asked Questions
Where can I buy BROADCOM HSMAC110?
You can click on the BUY or RFQ button to purchase HSMAC110 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMAC110?
You can download the HSMAC110 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMAC110?
BROADCOM
